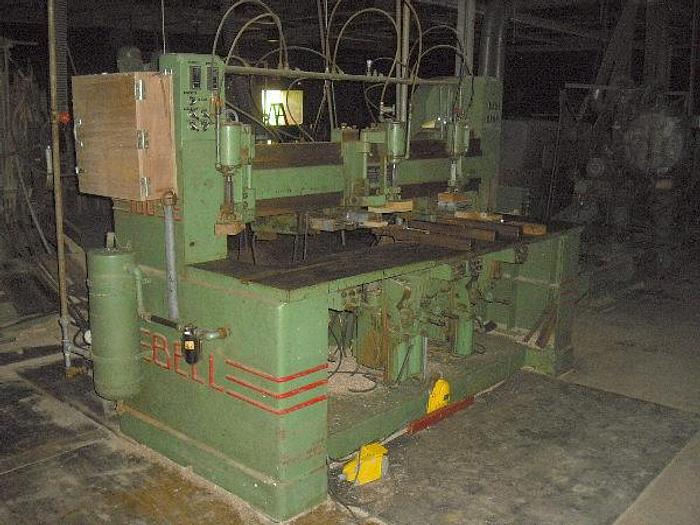

BELL 100 MULTIPLE-SPINDLE VERTICAL & HORIZONTAL BORING MACHINE

No longer available

Specifications

ConditionUsed
Stock NumberS-4298
Quantity1.0
S/n42385, (230/60/3), S-4298

Description

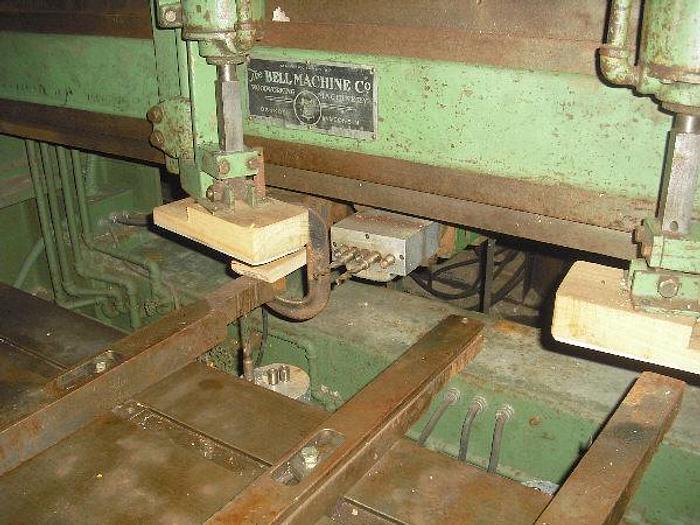

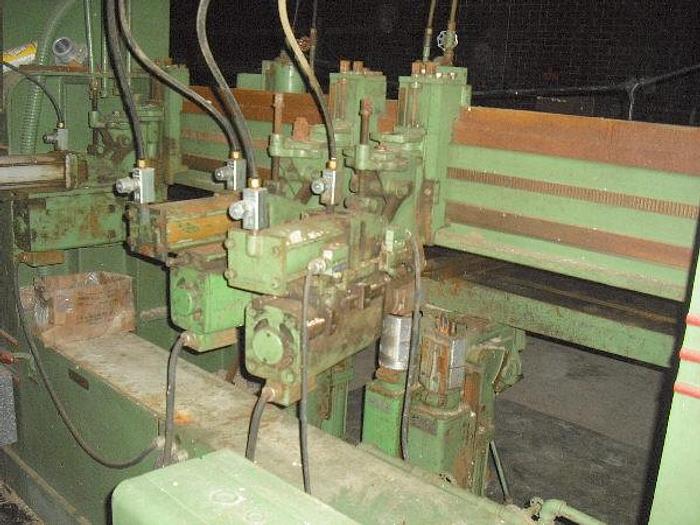

General Specifications: - 72" max. length boring capacity - (3) 2 HP, 220/440/60/3 horizontal heads: (2) with 5-spindle fixed centered heads on 1-1/2",3/4”, 3/4”, 3/4” centers (1) with 4-spindle fixed centered heads on 1-1/2”, 1/2”, 1-1/2” centers - (4) 2 HP, 220/440/60/3 vertical boring heads: (1) with 2-spindle fixed centered heads on 1-1/2" centers (1) with 4-spindle fixed centered heads on 1”. 3/4”, 3/4”, centers (2) with 3-spindle fixed centered heads on 1-½”, ½” centers - (3) adjustable pneumatic hold-downs - (3) adjustable work-piece set-up supports - Horizontal boring head adjustments: 4" vertical 6" variable stroke, (horizontal) 17.5° tilt up or down 30° tilt either side of center - Vertical boring head adjustments: 4" horizontal 6" variable stroke, (vertical) 17.5° tilt up or down 30° tilt either side of center - 100" x 64" x 72" approximate overall dimensions - Weighs approx. 8,000 lbs.
