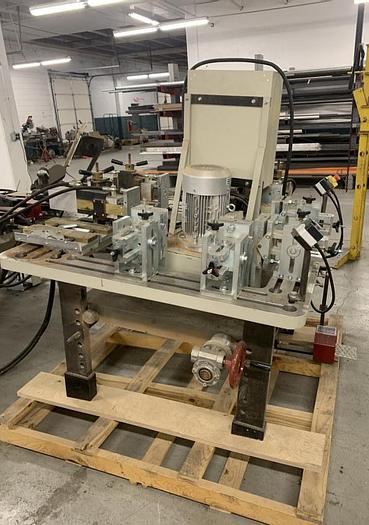

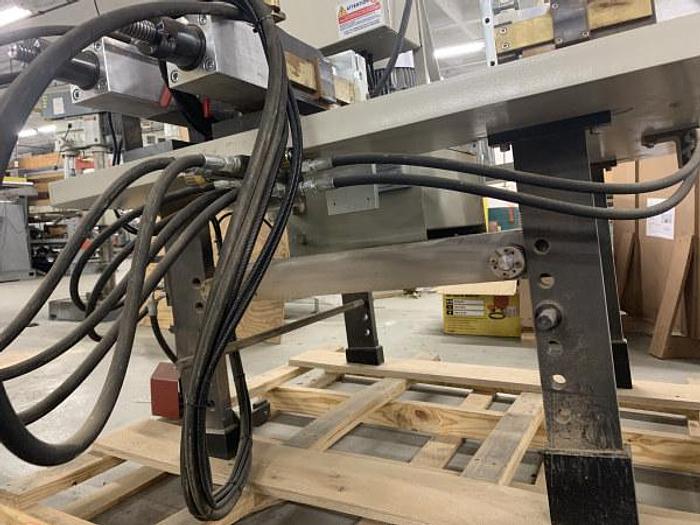

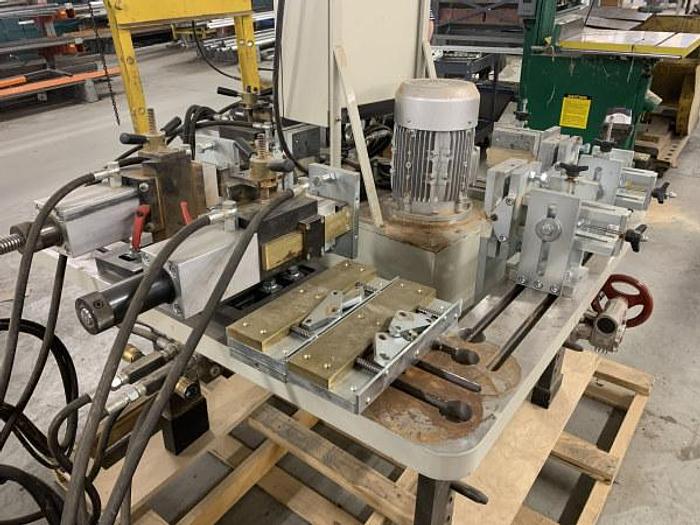

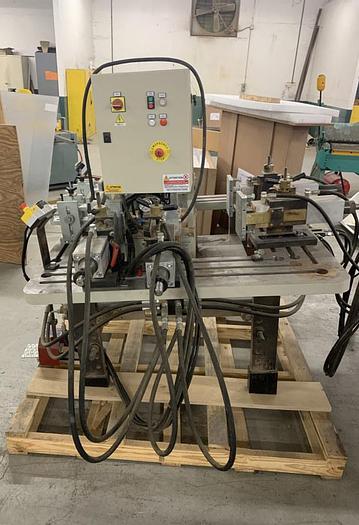

CAMAM SI/F/4C CHAIR CLAMP
orCall (828) 328-2641
This clamping machine is designed to clamp chairs frames together with one cycle. Standard Specifications: - 27-1/2” x 27-1/2”, (700 mm x 700 mm) chair base capacity - 5 HP, (4 KW), 230/460/60/3 hydraulic pump with 10-gallon, (40 L) capacity - Adjustable height chair support table with “channeled” top to position clamps - The hydraulic clamping cylinders have adjustable mechanical stops with variable feed speed controls - The clamps are positioned on the table and are adjustable in height, width, and depth - (4) adjustable “counter” stops have adjustable front tilting plates to fix wooden templates - Templates are adjustable in height, width and depth - Foot pedal cycle actuation of hydraulic clamping cylinders - 47” x 75” x 47”, (1,700 mm x 1,900 mm x 1,200 mm) approx. overall dimensions - Weighs approx. 2,500 lbs.
