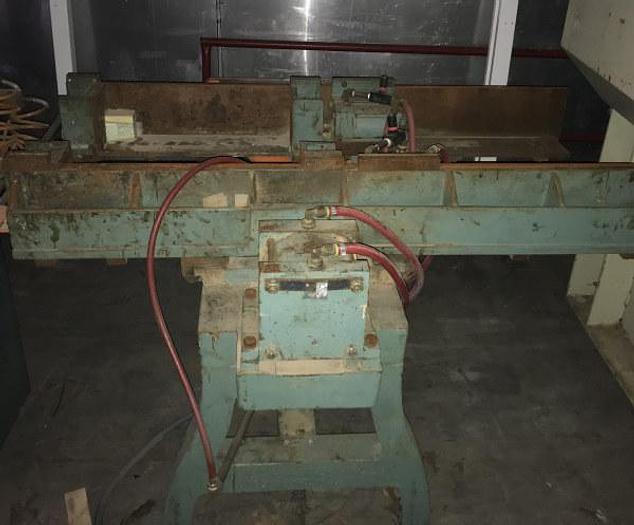

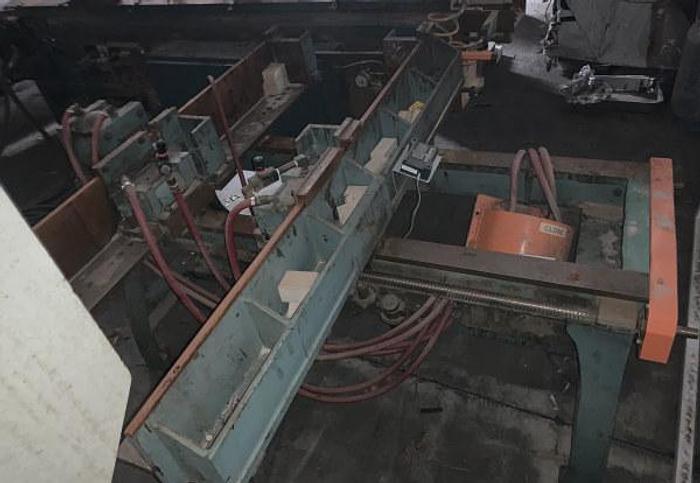

LANCASTER 1400-C, 2-WAY ASSEMBLY CLAMP

LANCASTER 1400-C, 2-WAY ASSEMBLY CLAMP

Standard Specifications: (to be verified)

- 100" max. opening between main 65" long x 8" tall jaws - 42" max. opening between auxiliary jaws, (on each main jaw) - 1/2 HP, 208-220/440/60/3 powerized opening, (forward & reverse) - (2) 5-1/2" wide x 8-1/2" tall auxiliary jaws provide secondary pressure - Aux. jaws are adjustable via. 5/8" stop pins on 1-1/4" centers - (1) 8" bore x 3" stroke air cylinder powers main jaws - (2) 5" bore x 3" stroke air cylinders power auxiliary jaws - Equipped with control valve, air regulator, filter, lubricator, & outlet air manifold and digital pro-scale - Pneumatic foot pedal actuation - 132" x 66" x 42" approx. overall dimensions - Weighs approx. 1,750 lbs.
