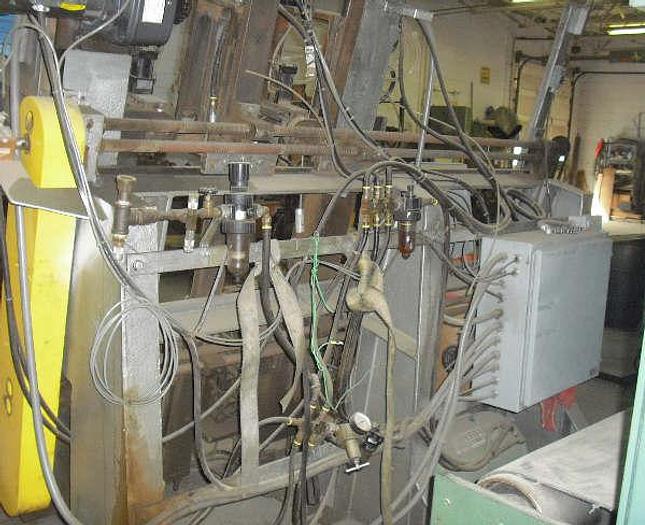

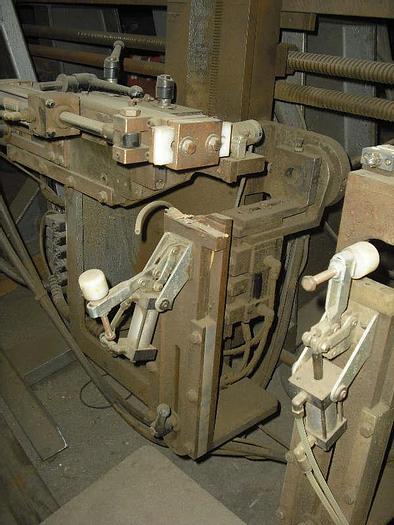

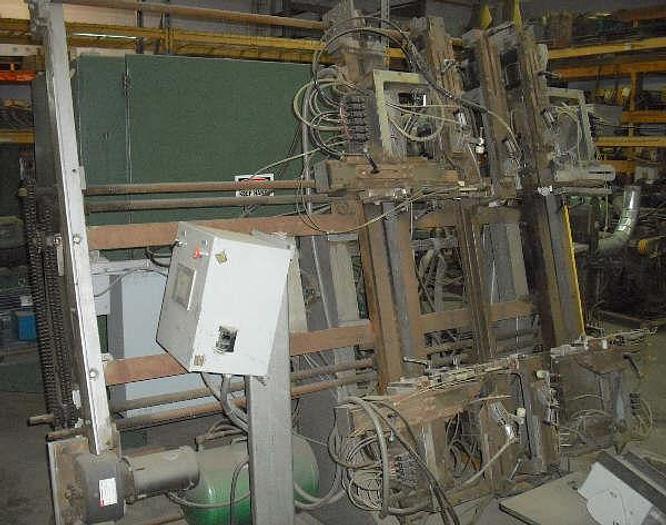

LANCASTER LCAP-892 TWO-WAY ASSEMBLY CLAMP / PINNING MACHINE

Price

Contact us for price

orCall (828) 328-2641

Specifications

ConditionUsed
Stock NumberCS-980-AW
Quantity1.0
S/nLCAP-892-4060, (230/60/3), CS-980-AW

Description

LANCASTER LCAP-892 TWO-WAY ASSEMBLY CLAMP / PINNING MACHINE

CS-980-AW

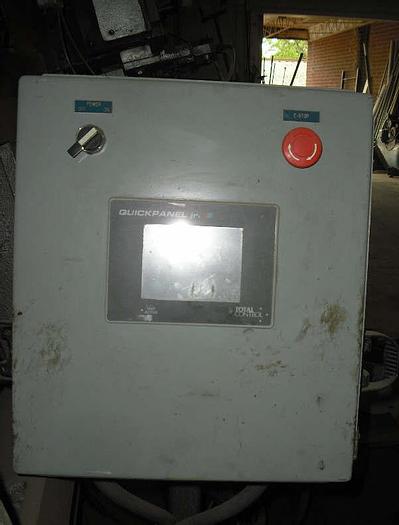

General Specifications: - 60" x 40" approx. max. clamping capacity - Clamps, doors or frames (mortis/tenon or miter corner joints, etc.) - Automatic cycle PLC controlled - Automatically pins twice in each corner – adjustable spacing up to 1” - Hold-downs at each corner to secure part for assured pinning - Automatically releases finished part or parts - Power set-up for both axis - Set-up and clamping pressure separate for guaranteed accuracy - Designed to accurately clamp square or rectangular frames or doors - Construction can be coped, tongued & grooved, mortise & tenoned or dowelled CLAMPING: - Size setup is kept separate from clamping for accuracy in clamping - The machine is set to the exact size to be clamped, allowing the cylinders to apply just enough thrust against the work piece to close the jointers – but not enough to allow the cylinders to push the frame out of square, warp or damage the ends - Pressure shoe has full adjustment to accommodate varying widths - Destaco units are adjustable for varying thickness of materials - Guns can be swiveled to move in any direction - Spacing between pins is adjustable - .5 HP, 208-220/440/60/3 left/right clamp adjustment motor - .75 HP, 208-220/440/60/3 up/down clamp adjustment motor SETUP: - Size change is accomplished with a motor-driven gear redactor and acme screws. Each axis can be controlled individually or both simultaneously *Contact us for additional specifications and pricing
