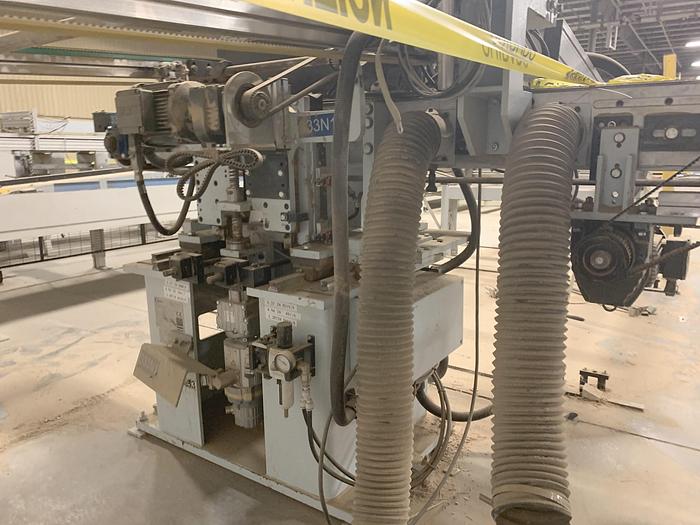

HOMAG POWER TVL370/15/02 BRUSH/WHEEL STYLE BOARD TURNER MATERIAL-HANDLING CONVEYOR SYSTEM
orCall (828) 328-2641

Specifications
Condition | Used |
Stock Number | S-4519p |
Quantity | 1.0 |
Description

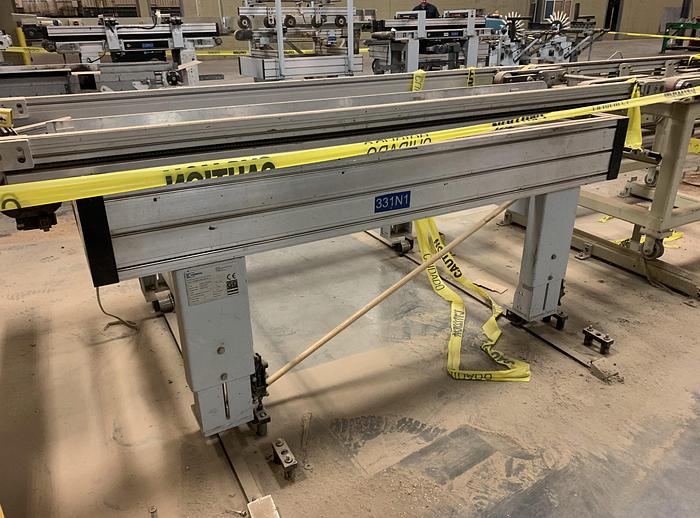

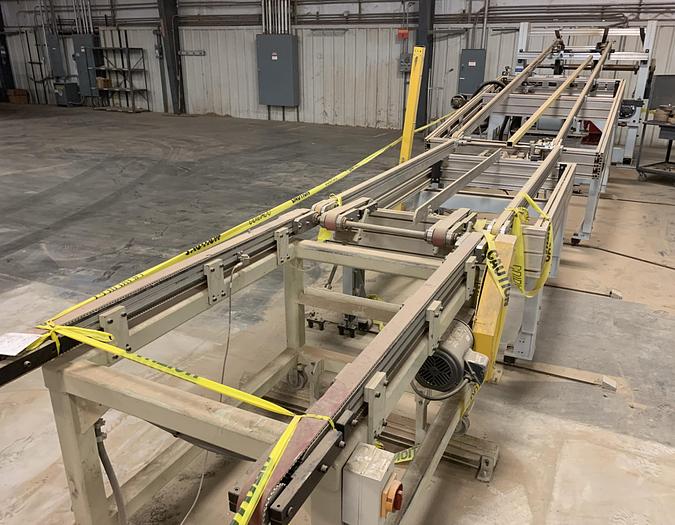

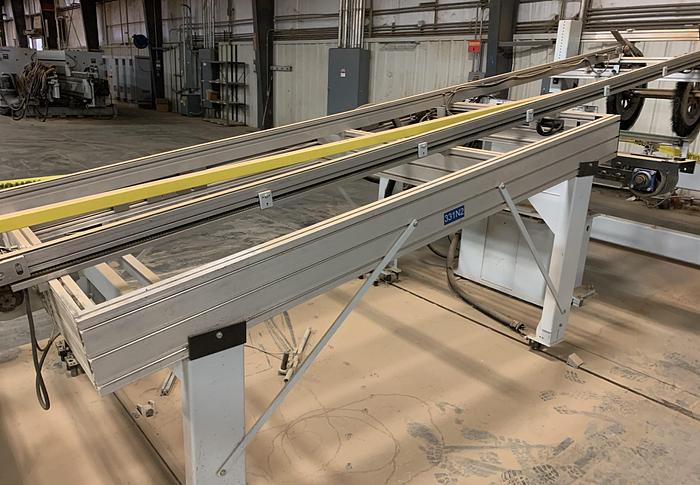

1st conveyor
- 35” wide x 7’ long belt conveyor with 18” mini transfer
- (2) 2” wide belts with 35” centers
- 40” working height

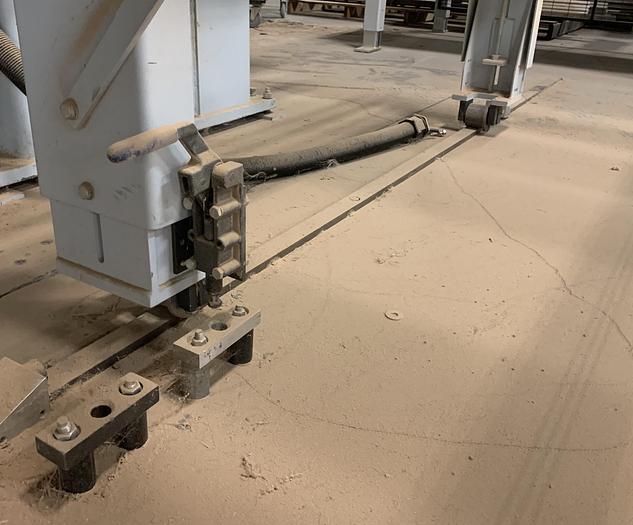

- Laterally adjustable on rails
- 7’ x 44” x 40” approx. overall dimensions
2nd conveyor
- 35” wide x 9’ long belt conveyor
- (2) 2” wide belts with 35” centers

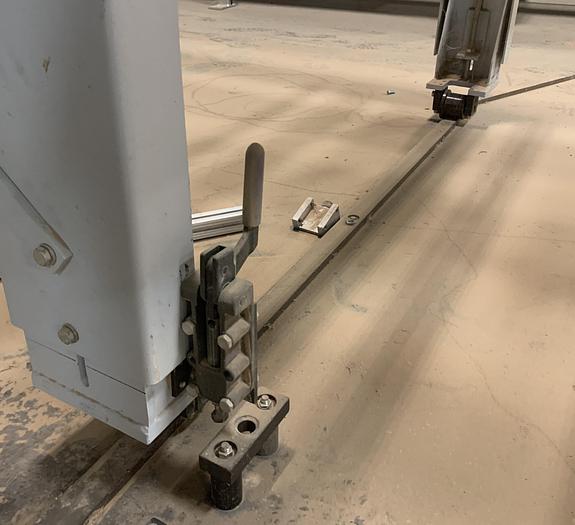

- Laterally adjustable on track with (2) preset positions
- 41” working height
- 9’ x 52” x 41” approx. overall dimensions

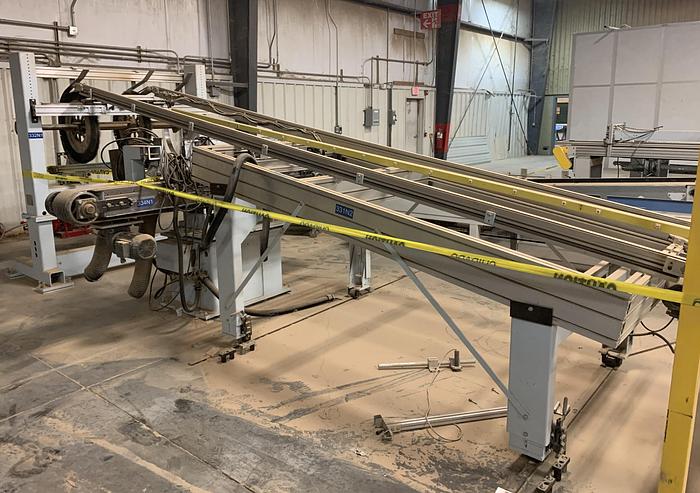

3rd conveyor
- 35” wide x 18’ long inclined belt conveyor
- (2) 1-1/2” wide belts with 35” centers
- Laterally adjustable on track with (2) preset positions
- 18’ x 66” x (42” to 80”) approx. overall dimensions

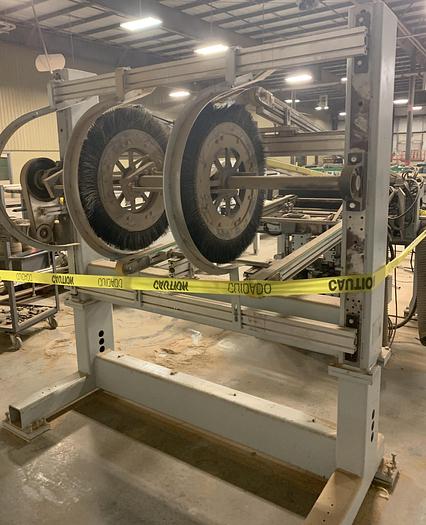

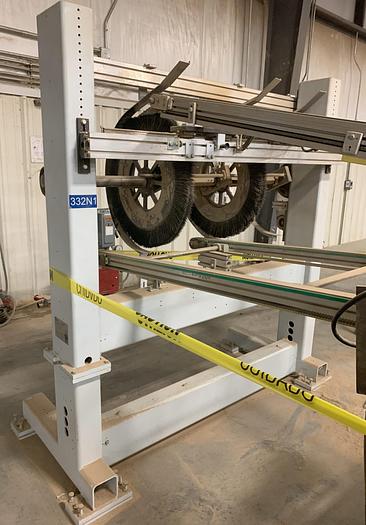

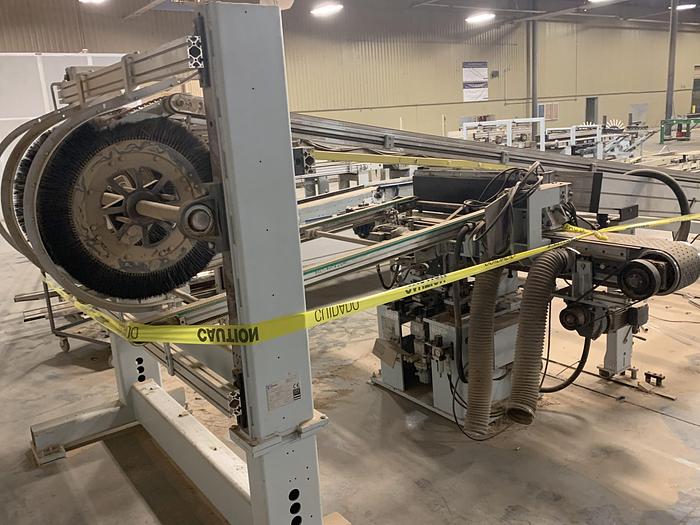

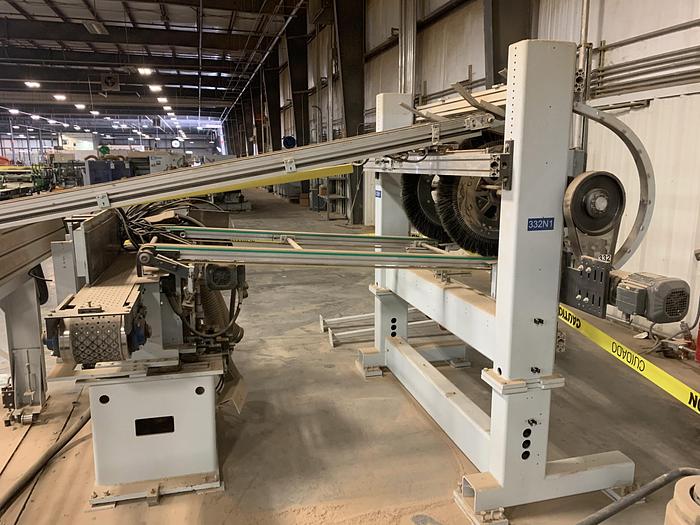

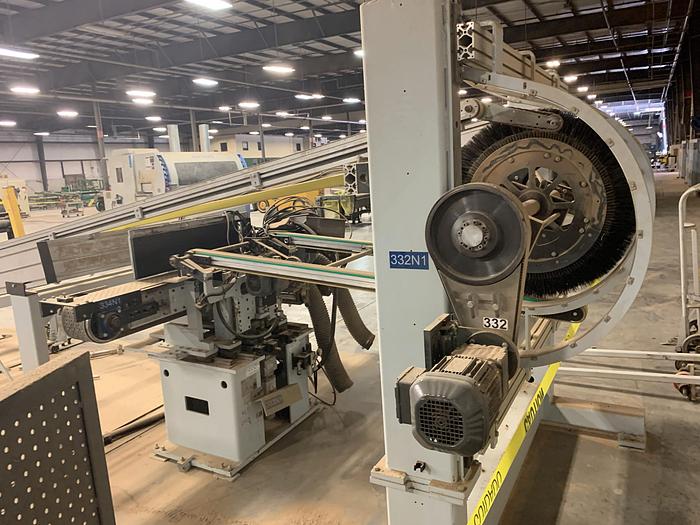

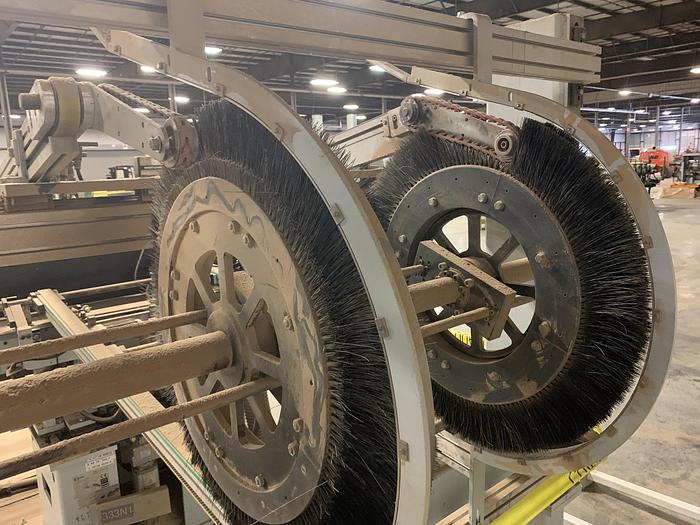

Brush/wheel board flipper with adjustable centers
- 32” diam. of brush
- Approx. 5’ board length capacity
- 3’ x 9’ x 7’-8” approx. overall dimensions
4th conveyor
- 32” wide x 7’ long double belt return-transfer conveyor
- (2) 2” wide belts
- 7’ x 3’ x 5’ approx. overall dimensions

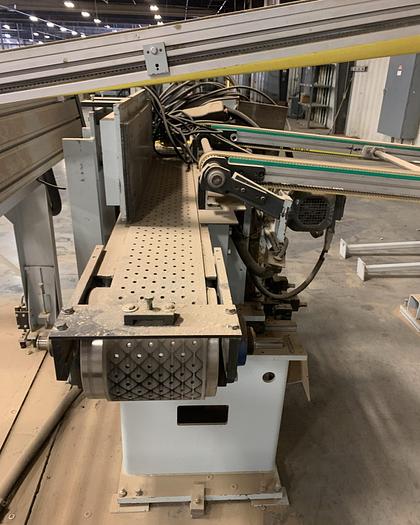

5th conveyor
- 7-1/2” wide x 9’ ft long lateral linear feed belt conveyor
- Vacuum belt (missing vacuum(s)
- 24” x 7’ x 4’ approx. overall dimensions

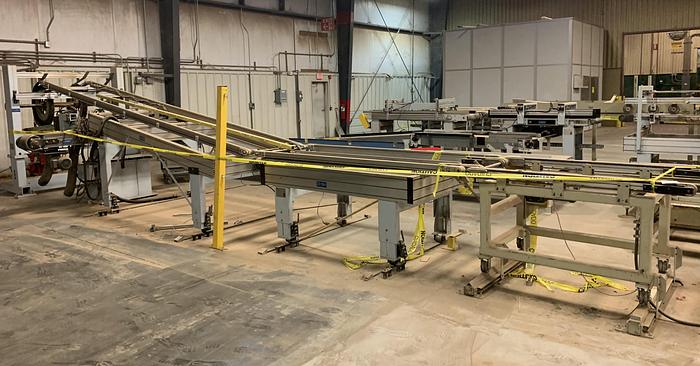

- 9’ wide x 35’ long x (40” to 90”) height approx. overall dimensions of system
