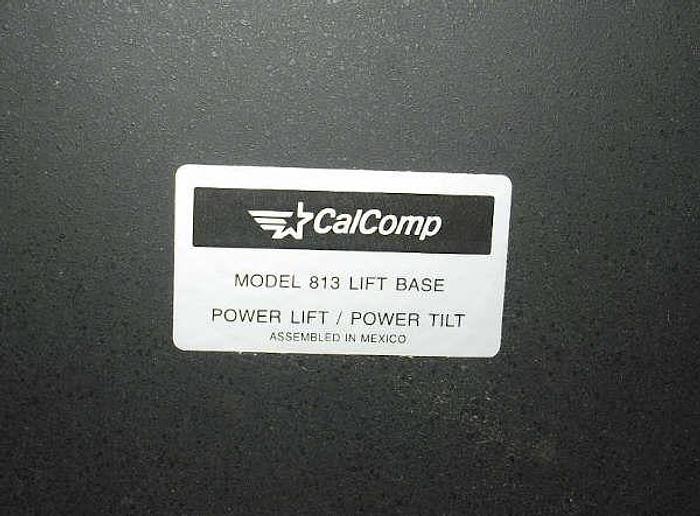

GTCO CALCOM 34600 DIGITIZING BOARD WITH POWER LIFT & TILTING BASE
orCall (828) 328-2641

Specifications
Condition | Used |
Stock Number | S-4051 |
Quantity | 1.0 |

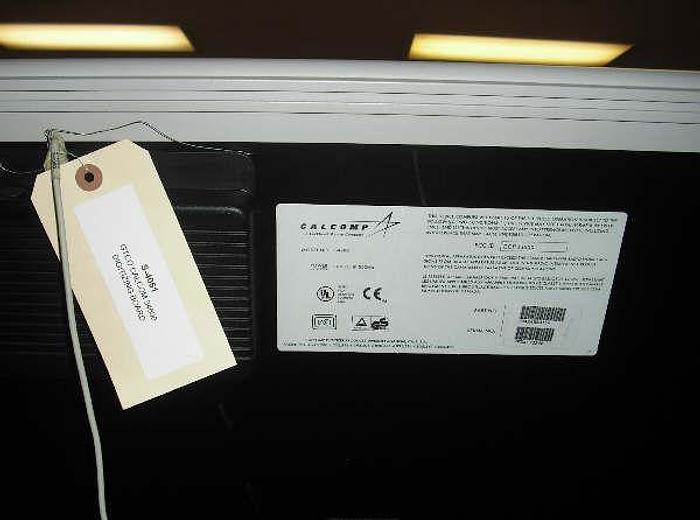

S/n | 4FS4173240, (110/60/1 electrics), S-4051 |
Description
Standard Specifications:
Resolution - 12,700 lpi (500 lpmm)
Accuracy - ± .010" standard accuracy
Proximity - >0.5" (12 mm)
Maximum Data Rate - >200 pps (corded) >170 pps (cordless)
Power Source - Wall mount power supply with a 2.1 mm mono plug DC connector and positive outside diameter
Input Voltage - 12 to 17 VDC
Current Draw - 400 ma
Safety UL1950, EN60950
Operating Temperature - 50° to 104°F (10° to 40°C)
Storage Temperature - 40° to 158°F (-40° to 70°C)
Humidity Range - 0% to 95%, non-condensing
Operating Altitude - 15,000 ft. (4,572m) above sea level
Storage Altitude - 50,000 ft. (15,244m) above sea level
- 44" x 60", (1117 mm x 1524 mm) active area
- 52.5" x 69", (1333 mm x 1753 mm) approx. overall dimensions
- Weighs approx. 69 lb. (31.3 kg)
*Contact us for additional specifications and pricing
