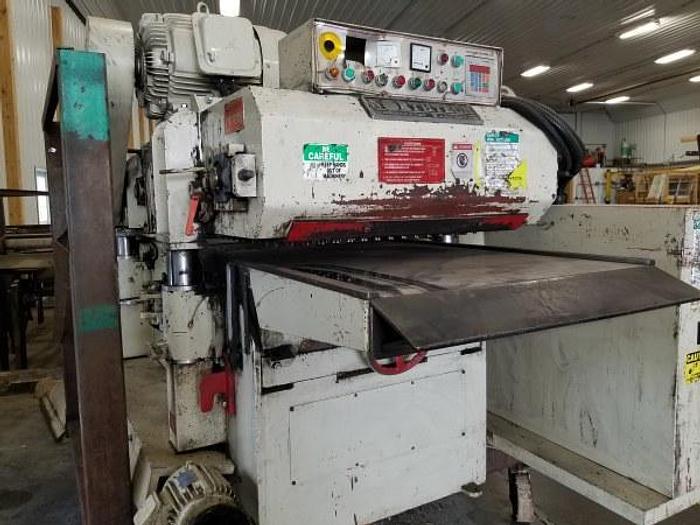

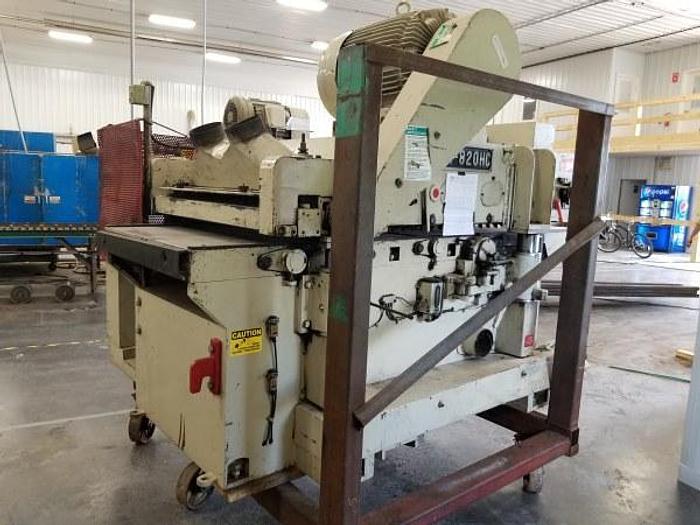

NORTHTECH NT-820HC, 30" TOP & BOTTOM PLANER

No longer available

Specifications

ConditionUsed
Stock NumberH-1577
Quantity1.0

Description

Standard Specifications: - 32-3/8" wide x (3/8” to 6") thickness work-piece capacity - 13” minimum length x 2” minimum width work-piece - 50 HP, 230/460/3 top head motor - 50 HP, 230/460/3 bottom head motor - 6” diameter, 5,000 RPM solid steel cutterheads - Helical cutterheads with insert style knives - 10 HP + 15 HP inverter-controlled feed motor, (30 to 80 ft/min.) - “Carpet” style feed system with 1,500 spring loaded spikes - 2 HP 4-column feed carpet/top-head elevation motor - (3) bottom & (3) top powered feed rollers & (4) bottom & (1) top idle feed rollers - Digital thickness setting controls with cutterhead motor amp meters - 34” pass-line height - (1) automatic & (1) manual oiler, (low oil shut-off) - (4) 6” diameter dust ports, (~6,000 CFM) - 90 PSI pneumatic requirement, (3/8'' diameter inlet) - 75 dB sound rating - 115” L x 88” W x 70” H approximate overall dimensions - Weighs approximately 15,500 lbs.
