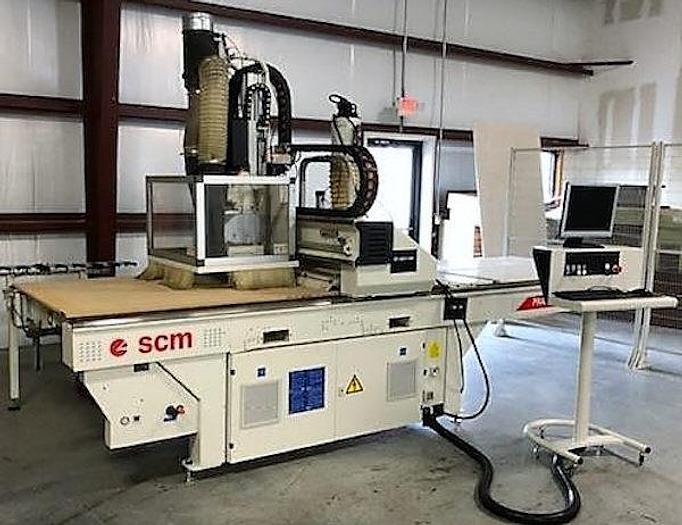

SCM PRATIX N12 CNC ROUTER
orCall (828) 328-2641

Specifications
Condition | Used |
Stock Number | H-1381 |
Quantity | 1.0 |
Sn | N/A, (2010) (480/60/3 electrics), H-1381 |
Description
General Specifications:
- 4’ x 8’ (1,220 mm x 2,440 mm) work piece capacity

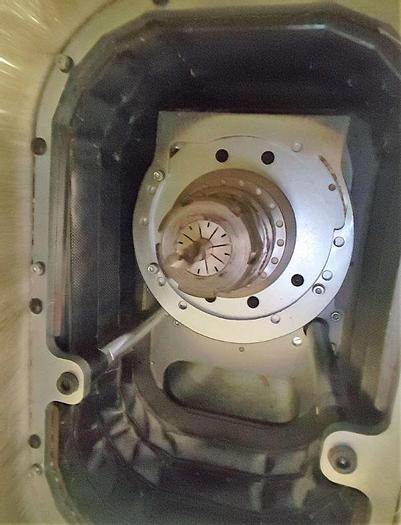

- Spindle 10HP, 1,500-2,400 RPM
- HSK F-63 tool holder

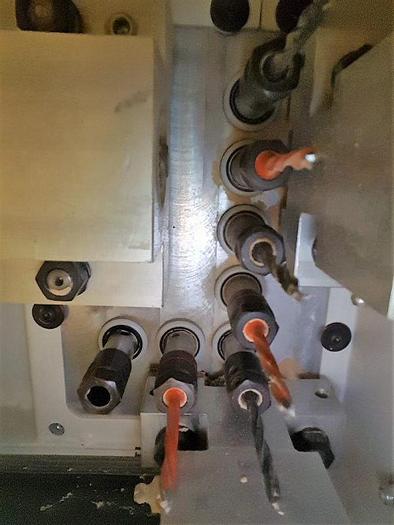

- 5 vertical spindles in X Axis, 2 spindles in Y Axis
- 183 ft/min. positioning speed:
- 80 mm Z Axis with off load system
- Machine equipped with parts pusher system to off load
- Outfeed table 80” x 49”
- Vacuum pump included
- Windows XP Professional with flat screen OS
- SCM XILOG software with machine panel software
- Approx. 7,000 hours on machine
- 2,500 CFM dust collector required:
- 102 psi operating air pressure:
- Current voltage: 480V with inverter to 400V
- 85” x 182" approx. machine footprint
- Includes safety fence and laser eye and manual
