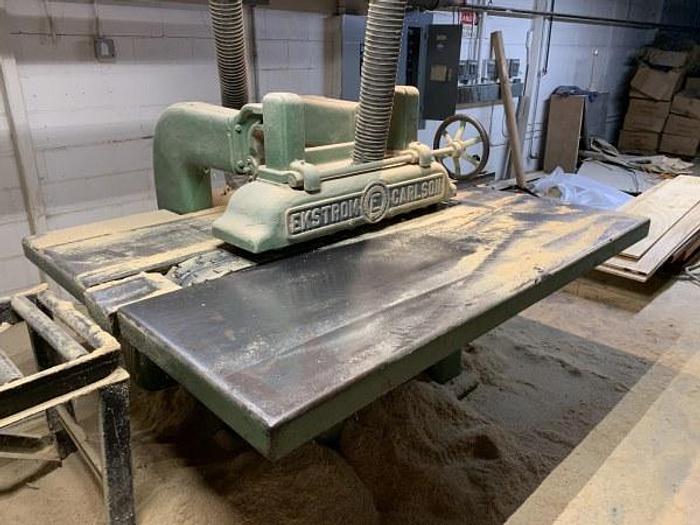

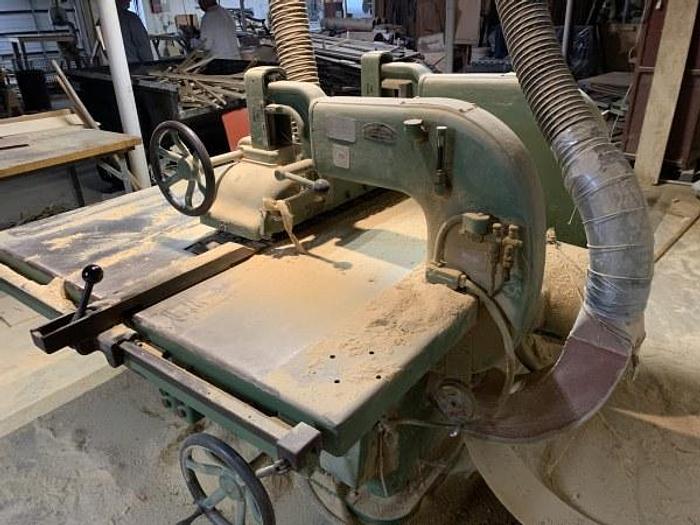

EKSTROM CARLSON E STRAIGHT-LINE RIPSAW

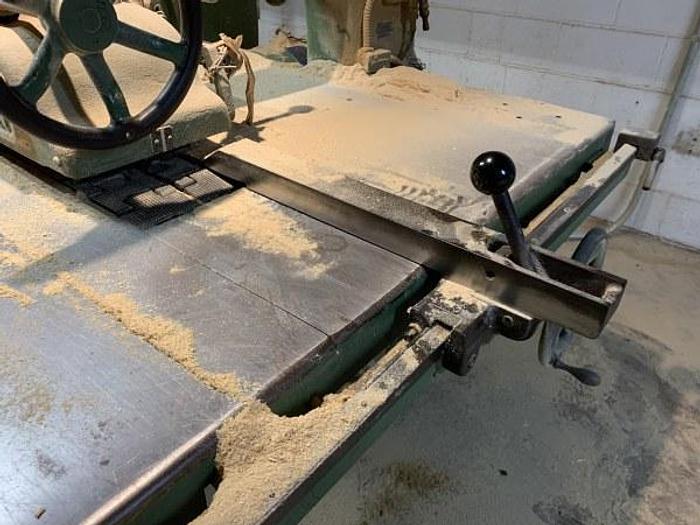

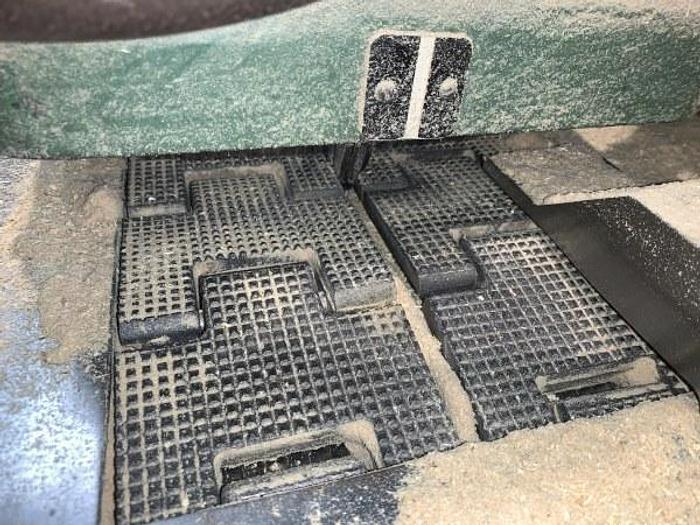

The model “E” is an undercutting type rip saw with dual feed chains. The feed speed is infinitely variable by way of 2 HP drive motor/Worthington variable speed pulley arrangement: (56 to 225 FPM). The saw's arbor is powered by a 20 HP, 230/460/60/3 direct drive motor. The saw has an adjustable rip fence with stops, and automatic mechanical oiling system. Standard specifications: - Saw motor: 20 HP, 230/460/60/3, (direct drive) - Max. stock thickness: 4-1/2" - Spindle size through saw blade, (bore): 2" - Distance from blade to arm: 25-3/4" - Diameter of dust outlets, (2 ): 4" & 6" - Overall table size: 66" x 80" - Shortest stock under (2) rolls: 4-1/2" - Table height: 34-1/4" - Shortest stock under (3) rolls : 8-7/8" - Overall dimensions: 75" x 88" x 64" - Weight: Approx. 5,000 lbs
