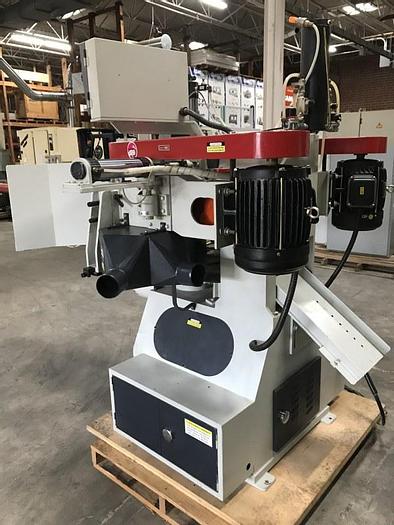

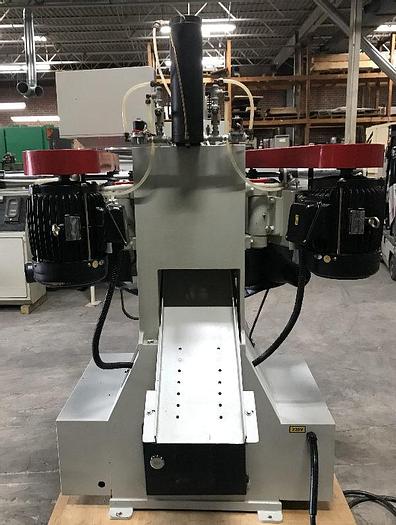

CASTALY CS-30DS AUTOMATIC DOUBLE-HEAD ROTARY SHAPER

Price

Contact us for price

orCall (828) 328-2641

Specifications

ConditionUsed
Stock NumberS-4590
Quantity1.0
S/n20160210 (2016), (220/60/3 electrics), S-4590

Description

http://www.lobomachine.com/shop/item.aspx/12-x-19-aut ofeed-copy-shaper/596/ Standard Specifications: - 12″ x 19″ max. shaping capacity - 18″ round table diameter - (2) 7-1/2 HP, 9,000 RPM spindle motors - 1¼” main spindle diameter - (4″ to 6″) shaping cutter diameter with 5″max. cutter length - 4″ follow wheel diameter - 2 HP round table turning motor, (1.5 to 5 RPM) - 115″ x 80″ x 80″ approx. overall dimensions - Weighs approx 3,000 lbs http://www.lobomachine.com/shop/item.aspx/12-x-19-aut ofeed-copy-shaper/596/ Standard Specifications: - 12″ x 19″ max. shaping capacity - 18″ round table diameter - (2) 7-1/2 HP, 9,000 RPM spindle motors - 1¼” main spindle diameter - (4″ to 6″) shaping cutter diameter with 5″max. cutter length - 4″ follow wheel diameter - 2 HP round table turning motor, (1.5 to 5 RPM) - 115″ x 80″ x 80″ approx. overall dimensions - Weighs approx 3,000 lbs http://www.lobomachine.com/shop/item.aspx/12-x-19-aut ofeed-copy-shaper/596/ Standard Specifications: - 12″ x 19″ max. shaping capacity - 18″ round table diameter - (2) 7-1/2 HP, 9,000 RPM spindle motors - 1¼” main spindle diameter - (4″ to 6″) shaping cutter diameter with 5″max. cutter length - 4″ follow wheel diameter - 2 HP round table turning motor, (1.5 to 5 RPM) - 115″ x 80″ x 80″ approx. overall dimensions - Weighs approx 3,000 lbs
