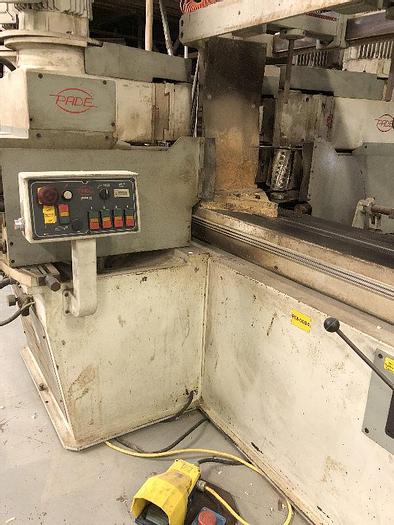

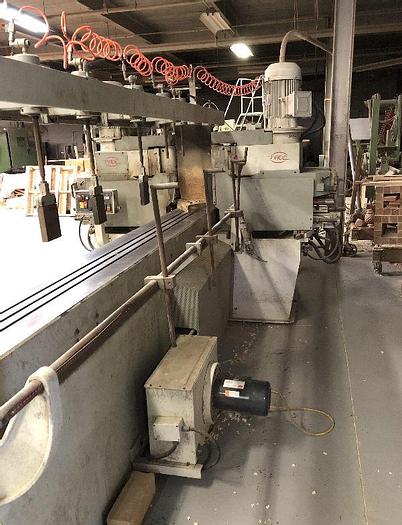

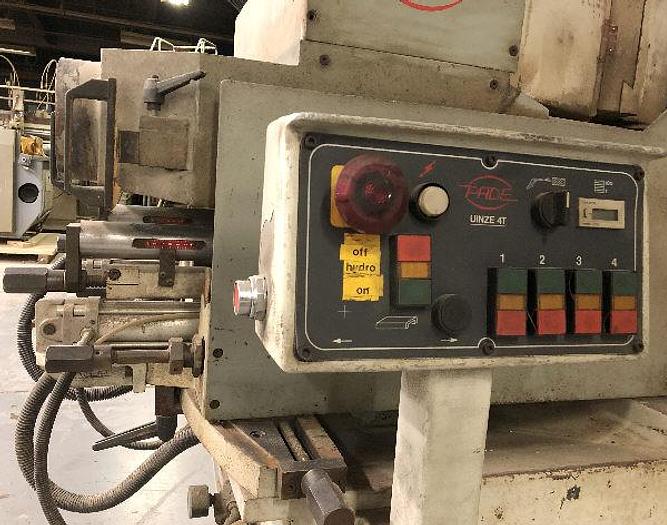

PADE UNIZE-4T, 2,500 DOUBLE-SIDED INLINE PROFILER

Standard Specifications for 2,500 mm machine: - 2,500 mm, (~98") max. work-piece length - 15 mm, (~.600") min & 360 mm, (~14") max. work-piece width - (2) 7.5 HP, 230/460/60/3 shaper motors, (opposing sides, belt driven) - Approx. 12" pneumatic spindle stroke with approx. +/- 8 degrees of rotation - Approx. 7" max. tool height cap. (85 mm min and 175 mm max. tool diam.) - 8 ' hydraulic carriage with (6) pneumatic hold-down clamps - 5 HP, 230/460/60/3 hydraulic pump for carriage feed, (0 to 80'/min.) - (2) 6" diameter dust outlets - 22' x 8' x 6' approx. overall dimensions - Weighs approx. 5,000 lbs.
