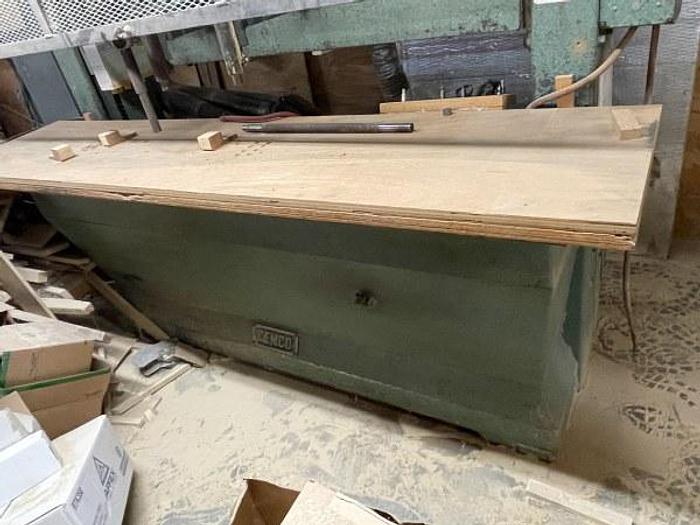

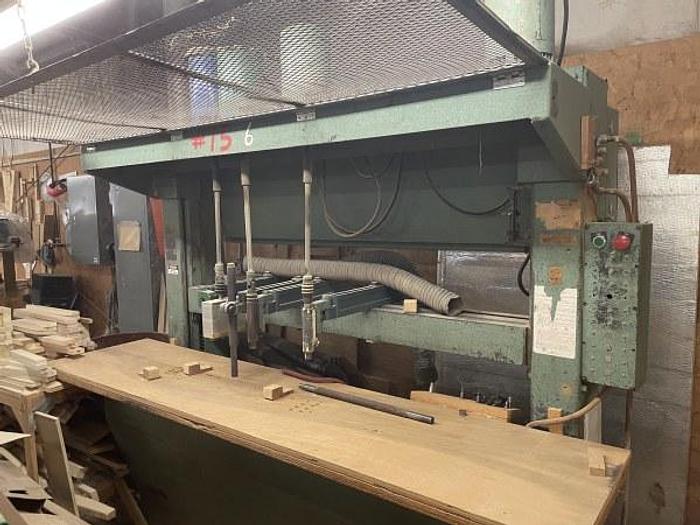

CEMCO MVB-84 MULTIPLE-SPINDLE VERTICAL BORING MACHINE

Price

Contact us for price

orCall (828) 328-2641

Specifications

ConditionUsed
Stock NumberS-4692

Description

SN: N/A, (460/60/3 electrics), S-4692 Standard Specifications: - (4) 1-1/2 HP, 208-220/440/60/3 direct drive spindles (1 w/cemco multi-spindle boring head) - (1) spring loaded work-piece hold-down clamps - 22" x 96" plywood table providing for 14" x 96" total boring area - Single cycle or automatic mode from 0 to 30 strokes per minute - Ball bearing type spindles, (1-1/2" min. center capability) - Hydraulic spindle feed via 2 HP self contained hydraulic pump - 6" adjustable stroke, (head carriage moves to stationary work table) - 96" x 42" x 94" approximate overall dimensions - Weighs approximately 3,000 lbs.
