EDWARDS 100 TON, IV JAWS HYDRAULIC IRON WORKER 4 STATION ANGLE PLATE NOTCH PUNCH MACHINE

EDWARDS 100 TON JAWS IV, 4-STATION HYDRAULIC IRON-WORKER

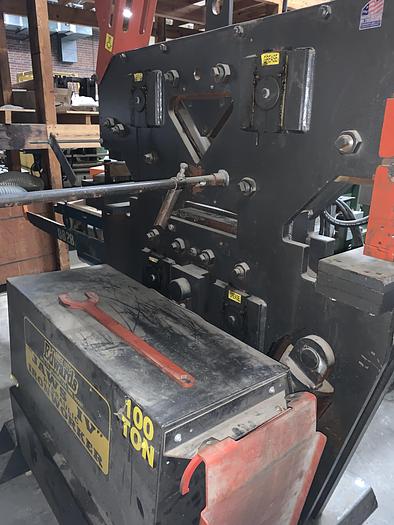

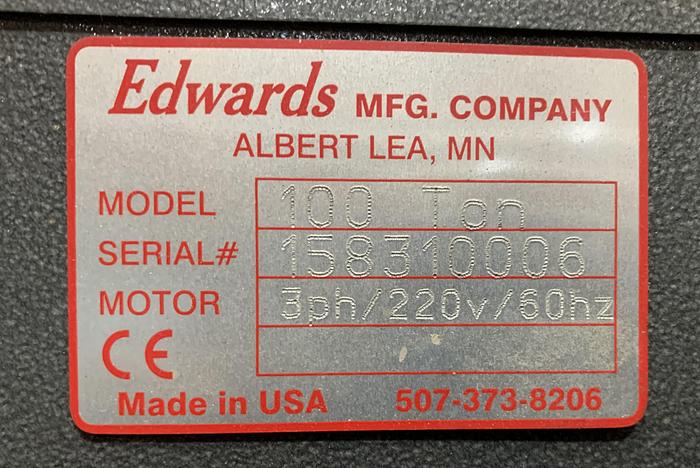

S/N:158310006, (2006),  (220/60/3 electrics), S-4730

Standard Specifications, (to be verified):

- (4) available workstations, (punch, flat bar & angle shear, & open station)

- 5 HP self-contained hydraulic system

- High-capacity angle shear

- Universal open tooling station

- Electric stroke control

- 56-1/8″ x 45″ x 61-11/16″ approx. overall dimensions

- Weighs approx. 3,850 lbs.

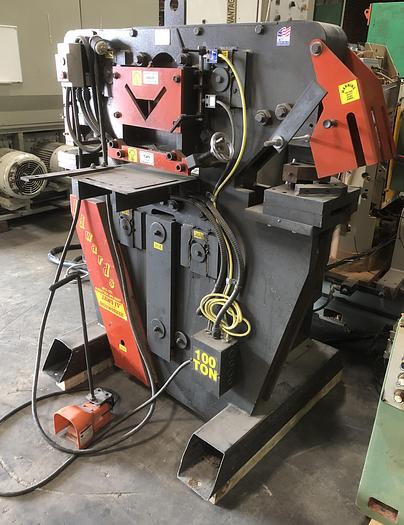

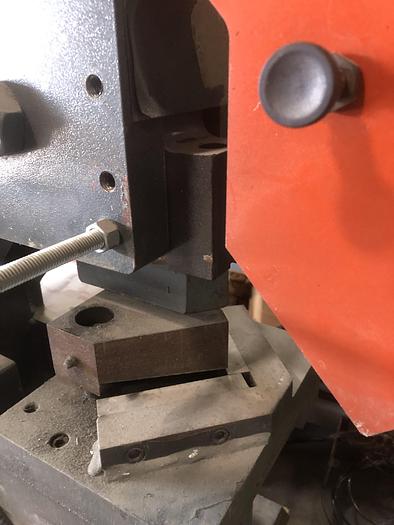

Punch:

- 1-1/16” diameter max. capacity, (1″ A36)

- 1-13/16″ stroke

- 11” throat depth

- 8-3/4″ open height

- 6-15/16″ shut height

- 39-1/16″ work height

Flat Bar Shear:

- (3/4″ x 3/4″) / (1″ x 10″) max. capacity

- 1-1/4″ max. round

- 1-1/4″ max. square

- 37” work height

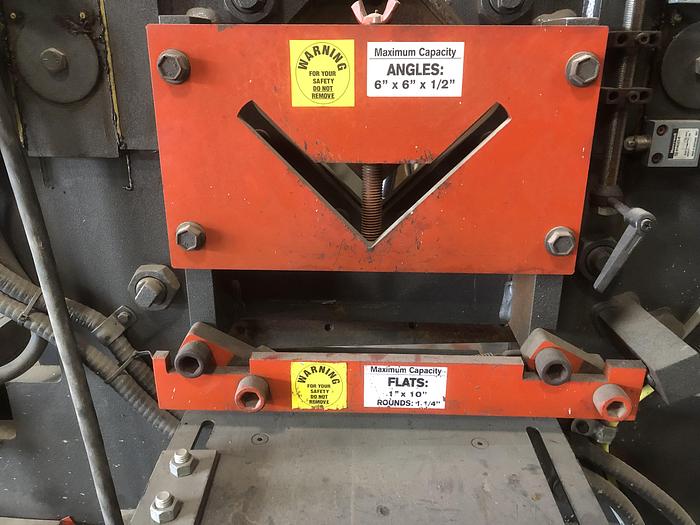

Angle Shear:

- 6″ x 6″ x 1/2″ max. capacity

- 43-15/16″ work height

Open Station:

- 14-3/4″ throat depth

- 8-3/4″ open height

- 6-15/16″ shut height

- 1-13/16″ stroke

- 37” work height

- 10-1/2 GPM, 2-stage hydraulic pump

- 3,500 PSI valve pressure

- 17 gallon reservoir

- 3-1/2″ ram cylinder
