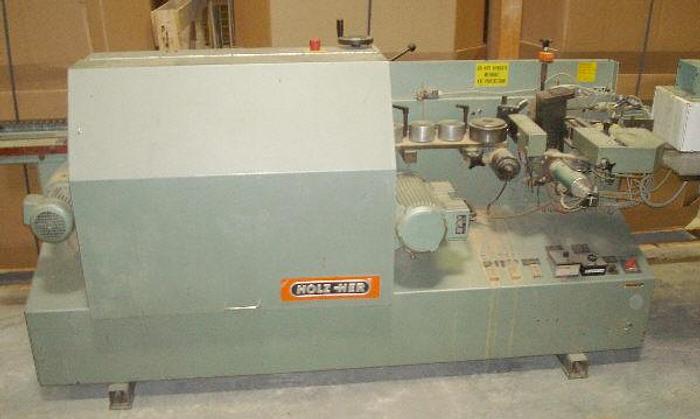

HOLZHER 1404 SINGLE-SIDED EDGE-BANDER
No longer available
Specifications
Condition | Used |
Stock Number | CS-1084-CC |
Description
S/N:1044, (1985), CS-1084-CC
For edge-banding, end-trimming, and flush trimming up to 8 mm band
Station Specifications:

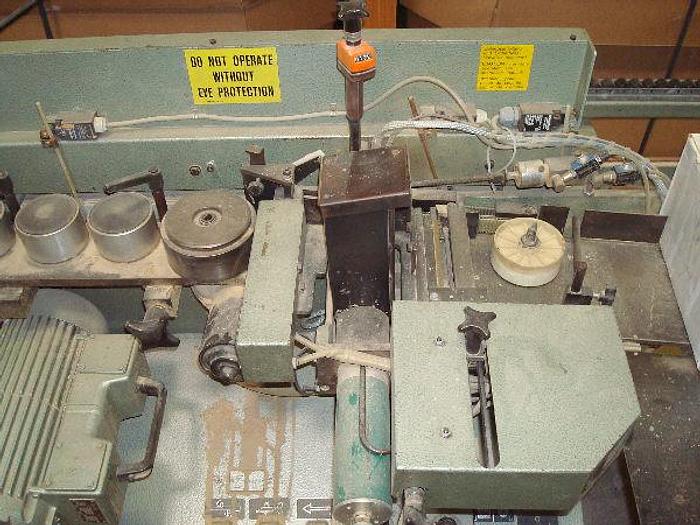

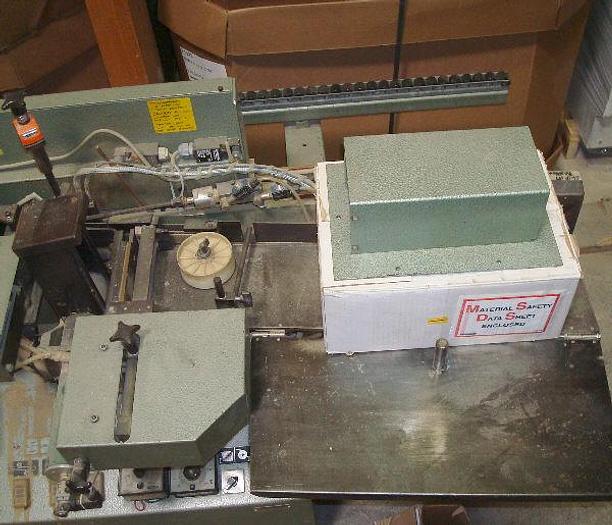

- Automatic edge feeder, (for coils or strips)
- Pressure rollers station
- Glue applicator station, (type 1906), (large pellet type)

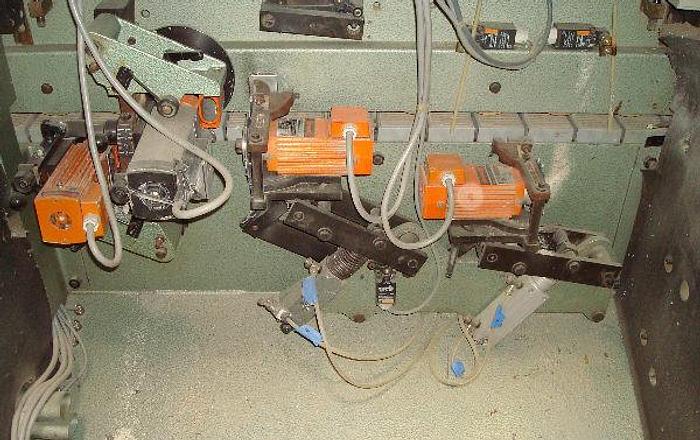

- End trimming station, (type 1939), .22 KW, 17,250 RPM motors
- Flush trimming station (type 1943), .4 KW, 17,250 RPM motors*
Working dimensions:
- .4 to 8 mm, (.016" to 5/16") edging thickness
- 51 mm max. (2") edging height
- 220 mm min. (8-5/8") edging length
- 85 mm min. (3-3/8") min. workpiece width
- 6 mm to 45 mm, (1-3/4" to 7-1/8") workpiece length
- 850 mm, (34") working height
Additional specifications:
- .37 KW feed motor
- 2 KVA AVK FD2-2 freq. converter for high speed stations
- Sound/safety enclosure with lift-up cover
- 4. 3 KW, (<6 HP) total power required
- 120 cfm dust extraction required
- 10' x 3' x 4-1/2' approx. overall dimensions and weighs approx. 1,500 lbs
