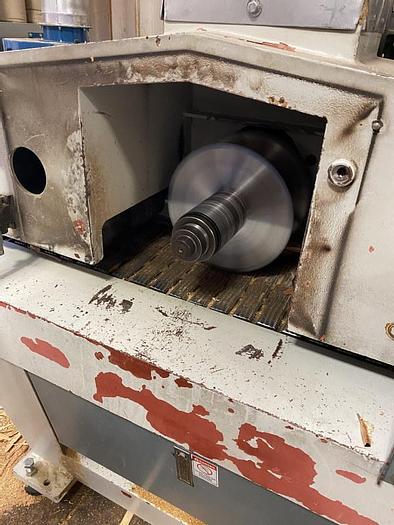

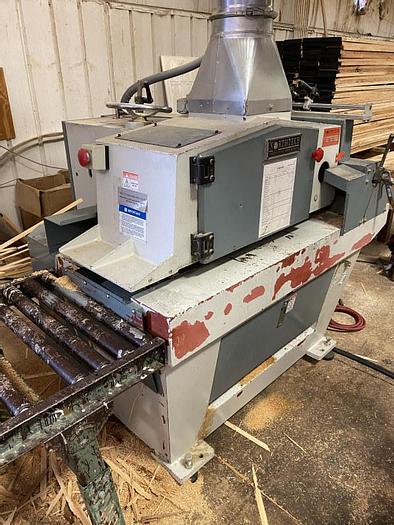

NORTHTECH MRS-14DXL GANG RIPSAW

Price

Contact us for price

orCall (828) 328-2641

Specifications

ConditionUsed
Stock NumberH-1515

Description

(2014), (460/60/3 electrics), H-1515 Standard specifications, (to be verified): - 27-1/8” max and ½” min. work-piece width - 2/16” min. and 4-15/16” max. work-piece thickness - 17-3/4'' min. work-piece length - 60 HP, 230/460/60/3, 3,750 RPM saw arbor motor - 1.5 & 3 HP, 230/460/60/3 2-speed feed motor - Variable feed speed by variable speed pulley, (25 - 120 ft/min.) - ¼ HP 230/460/60/32 raise/lower motor, (3/8'' to 5' vertical travel) - 12" diameter saw blade, (70 mm diameter saw arbor) - 33-1/2'' work-piece pass-line - Pressure plate work-piece hold-down mechanism - (2) top and (1) bottom sets of anti-kick-back fingers - Automatic mechanical oiler with low oil warning & shut-off - Adjustable infeed fence - Includes rail and (2) 100 mw adjustable lasers - 74 dB decibel sound rating - (2) 6'' diameter dust-outlets, (1,962 CFM) - 67'' x 58'' x 71'' approx. overall dimensions - Weighs approx. 4,700 lbs.
