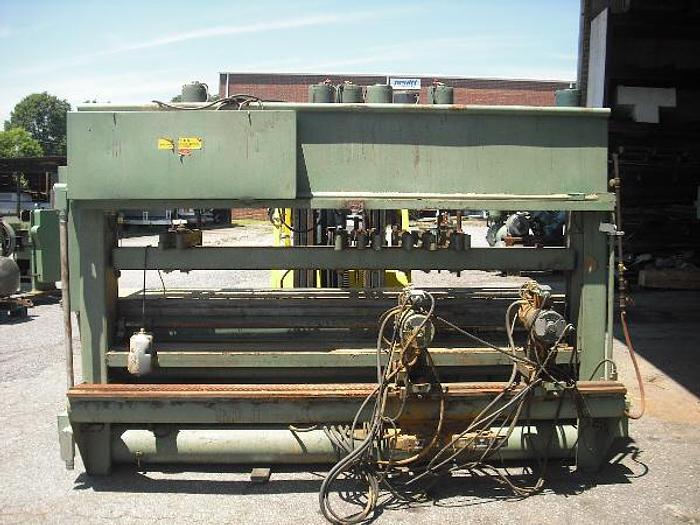

CEMCO 10 FT MULTI-SPINDLE VERTICAL AND HORIZONTAL BORING MACHINE

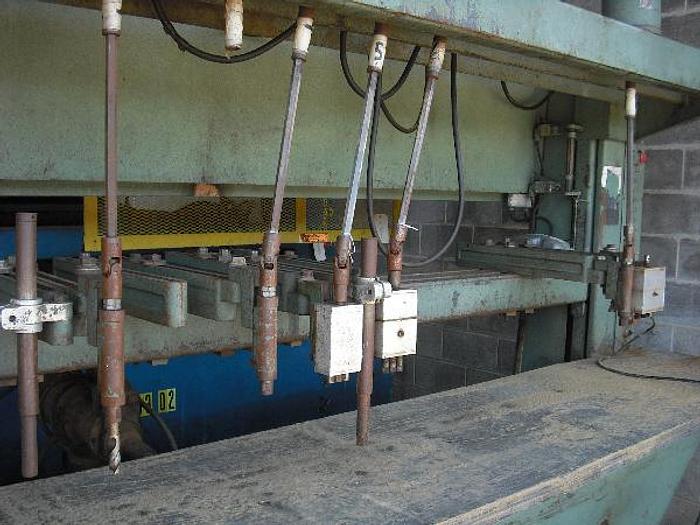

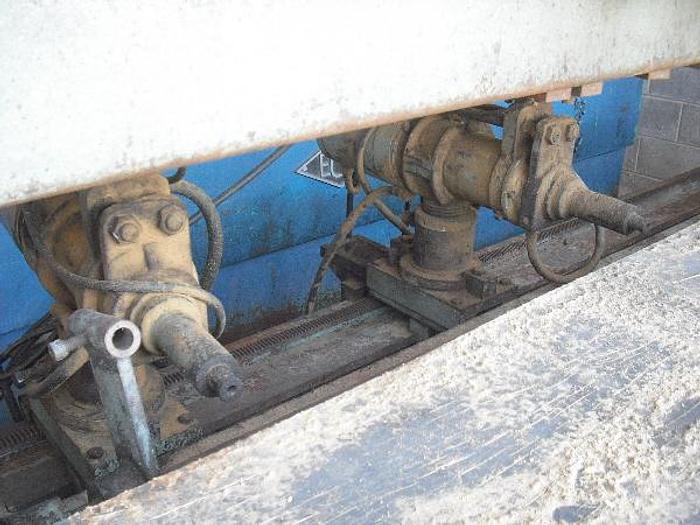

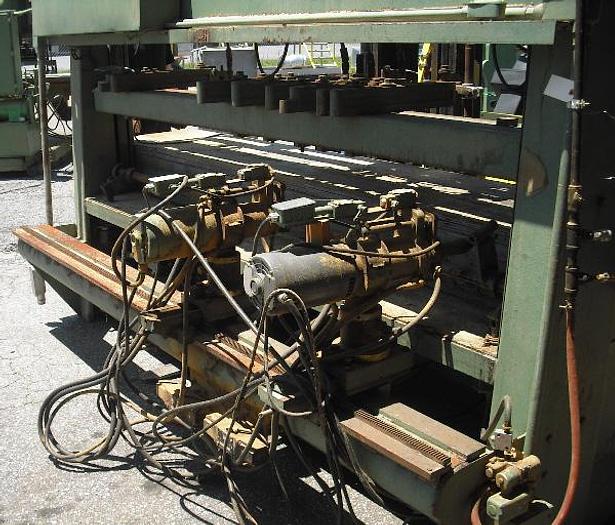

S/N:NA, (440/60/3 electrics), S-4190 General Specifications:: - (6) 1-1/2 HP, 1,725 RPM, 220/440/60/3 direct drive spindle motors - 120” x 15” total boring area, (head carriage moves to stationary work table) - 120" x 24" retro-fitted wood table top - (3) straight-shank ball bearing type spindles, (1-1/2" min. center capability) - (1) 3-spindle fixed centered boring head with 1-1/2" centers - (2) 3-spindle fixed centered boring head with 3/4" centers - (2) 2 HP horizontal single spindle rotating boring units with 6" stroke - Horizontal units adjustable by rack/pinion - Electro-pneumatic moving backstop for work-piece positioning - (3) adjustable spring loaded work-piece holddown units - 0 to 30 strokes per minute single cycle or automatic mode - 6" adjustable stroke via 2 HP self-contained hydraulic pump system - Foot pedal cycle actuation/control - 132" x 36" x 98" approx. overall dimensions - Weighs aprox. 5,000 lbs.
