ONSRUD W-1136A, 36 INCH OVERHEAD PIN ROUTER
No longer available

Specifications
Condition | Used |
Stock Number | S-4427 |
Description

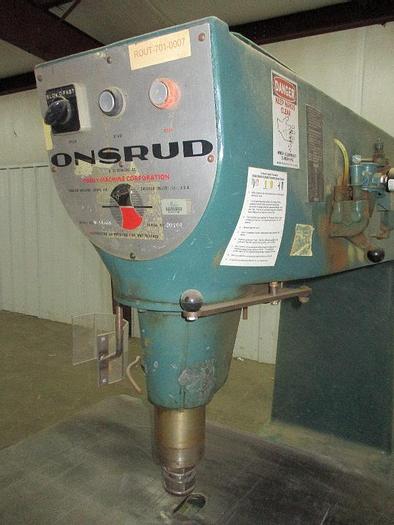

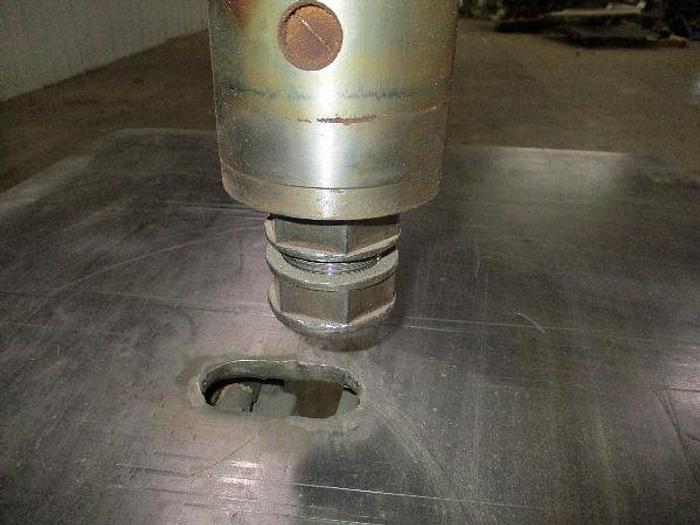

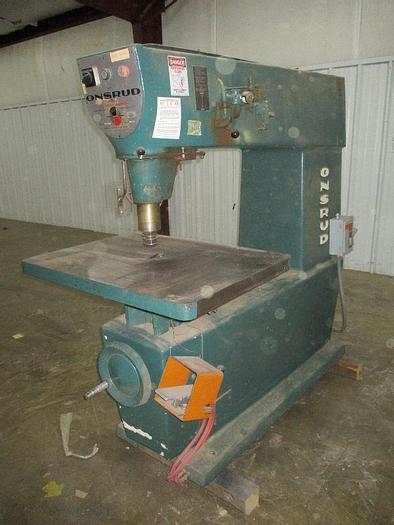

ONSRUD W-1136A, 36" OVERHEAD PIN ROUTER
S/N:10199, (440/60/3 electrics), S-4427
Standard Specifications: (to be verified)
- 5 HP, 550/60/3, 3,450/1,750 RPM spindle motor, (belt drive)
- 2-speed spindle: (10,000 and 20,000 RPM)
- 3-1/2" spindle travel with 13" max. table to spindle distance
- 48" x 36" table with 36" throat depth
- 3/4" maximum chucking capacity
- Oil mist lubrication system
- Pneumatic spindle movement via foot pedal
- 48" x 70” x 67" approx. overall dimension
- Weighs approx. 1,500 lbs.
