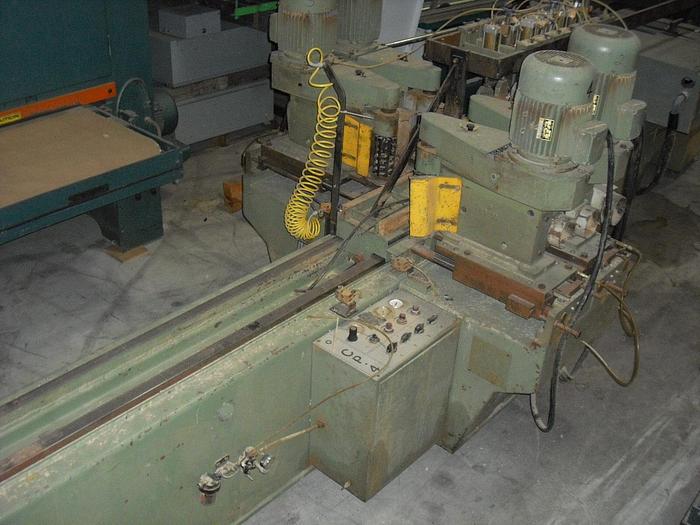

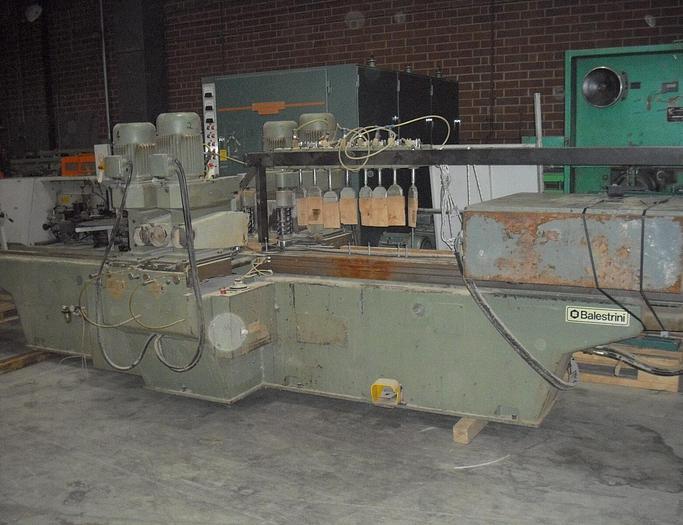

BALESTRINI CP-4 DOUBLE-SIDED INLINE PROFILE SHAPER
orCall (828) 328-2641

Specifications
Condition | Used |
Stock Number | S-4263 |
Description
S/N:M227-157 P.O.2332, (220/60/3), S-4263
Standard Specifications for 2,200 mm machine:
- 2,200 mm, (~86") max. work-piece length
- 300 mm, (~12") max. width x 180 mm, (~7") height work-piece capacity
- 1st set of heads: (2) 15 HP, 220/440/60/3 motors, (opposing sides, belt driven)
- 2nd set of heads: (2) 10 HP, 220/440/60/3 motors, (opposing sides, belt driven)

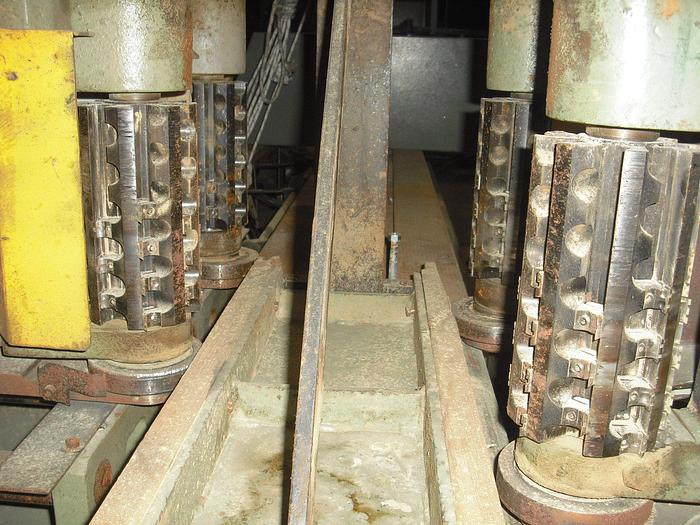

- 30 mm diam. 8,400 RPM cutter spindle with ~4” diam. x ~7” cutter-head capacity

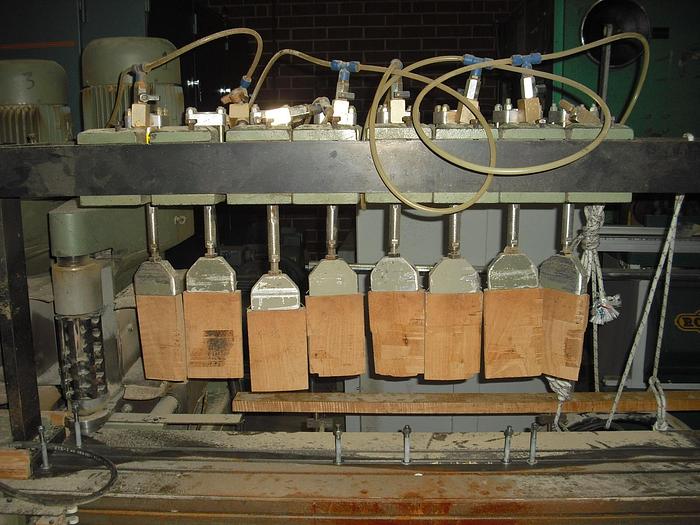

- 8 ' hydraulic carriage with (8) adjustable pneumatic hold-down clamps
- Approx. 5" pneumatic spindle stroke

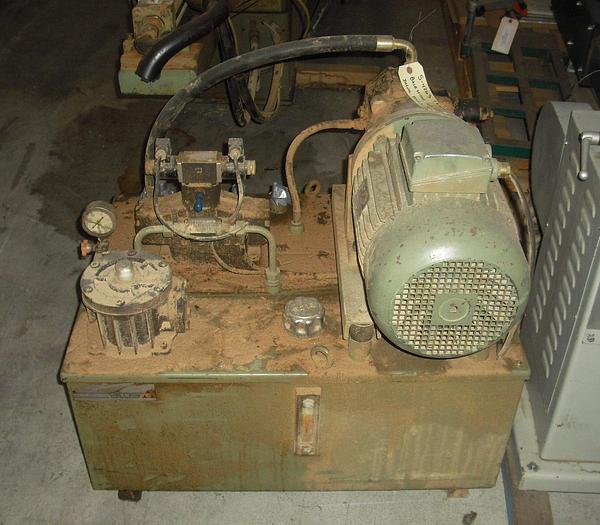

- 5.5 HP, 220/440/60/3 self-contained hydraulic pump for carriage feed, (0 to 43 ft/min)
- (6) 5" diameter dust outlets
- Includes one set of cutter-heads
- 19' x 6' x 6' approx. overall dimensions
- Weighs approx. 10,000 lbs.
