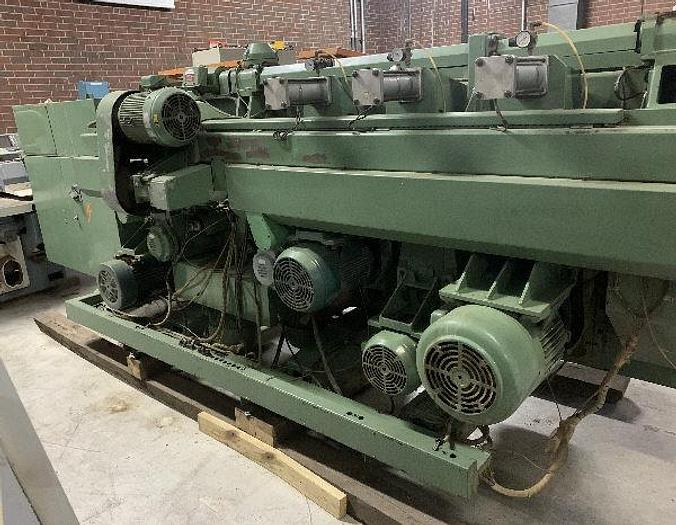

IIDA M-181C, 6-HEAD MOULDER

S/N:0991984, (480/60/3 electrics), S-4001 General Specifications: - 7” wide x 5” height production capacity, (3/4" x 3/8" min planing cap.) - 1-13/16" spindle diameter, 6,000 RPM spindles - 53” automatic infeed hopper - 7.5 KW, 480/60/3 bottom horizontal spindle - 5.5 KW, 480/60/3 right-side vertical spindle - 5.5 KW, 480/60/3 left-side vertical spindle - 7.5 KW, 480/60/3 top-horizontal spindle - 5.5 KW, 480/60/3 bottom-horizontal spindle - 11 KW, 480/60/3 top-horizontal spindle - 3.7 KW, 220/440/60/3 cardan-drive feed system, (variable) - (20 to 82.5) ft/min feed speed range - Power raise and lower feed beam with pneumatic counter balance - Yaskwa automatic spindle positioning - Digital controls with memory & tooling compensation - (11) driven upper & (2) driven / (6) idle lower feed rollers - Centralized lubrication system - Pneumatic spindle locks - 5" diameter dust outlets - 15-1/2' x 6' x 5' approx. overall dimensions - Weighs approx. 12,000 lbs.
