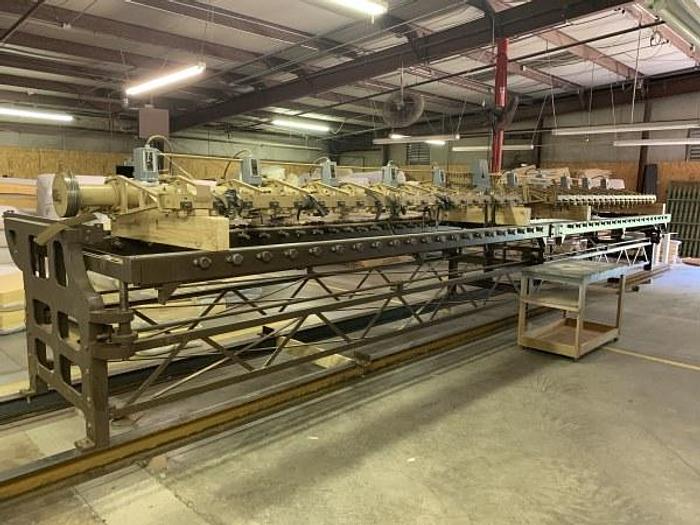

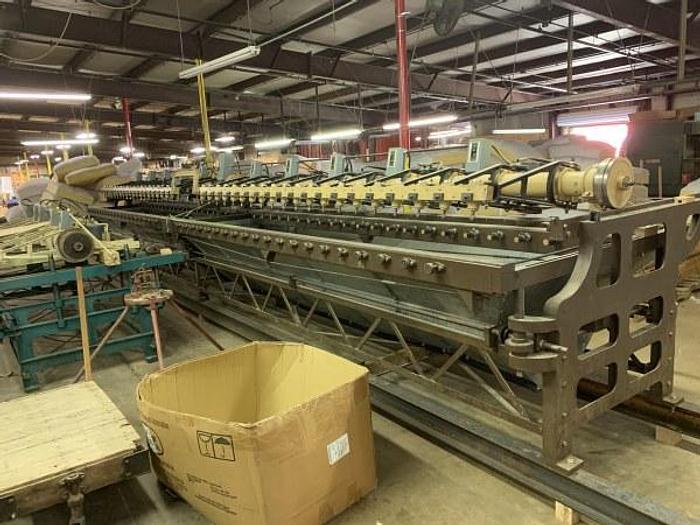

MASTER-CARVER MC-4008, 40-SPINDLE CARVING MACHINES WITH (2) THERMWOOD CARVER ROBOTS SYSTEMS

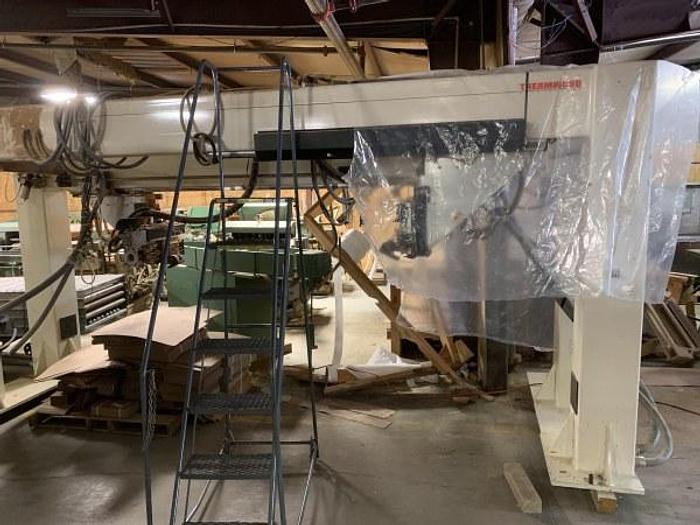

(2) MASTER-CARVER MC-4008, 40-SPINDLE CARVING MACHINES WITH (2) THERMWOOD CARVER ROBOTS SYSTEMS (460/60/3 electrics), H-1748 Standard Master-Carver Specifications: - (40) spindles on 8" centers - ~8" diam. x 48" work-piece capacity, (with a part in every slot) (larger diameter parts can be carved with a part in every other slot) - (10) 1.5 HP, 3,450 RPM, 230/460/60/3 spindle motors (1 motor drives 4-spindles via belt) - Tracing done manually at the center of the machine over pattern - Manual work-piece carriage set-up, (via hand crank) - 1/4" diameter shank spindles - Forward and reverse work-piece rotation - Includes misc. wrenches and tooling - 7' x 44' x 6' approx. overall dimensions Standard Thermwood Carver Specifications: - The Robot Carver is a computer-controlled system that is built into an overhead fixed gantry that attaches to the carriage of multiple-spindle carving machines and automates/replicates the movements of the carving machine operator.
