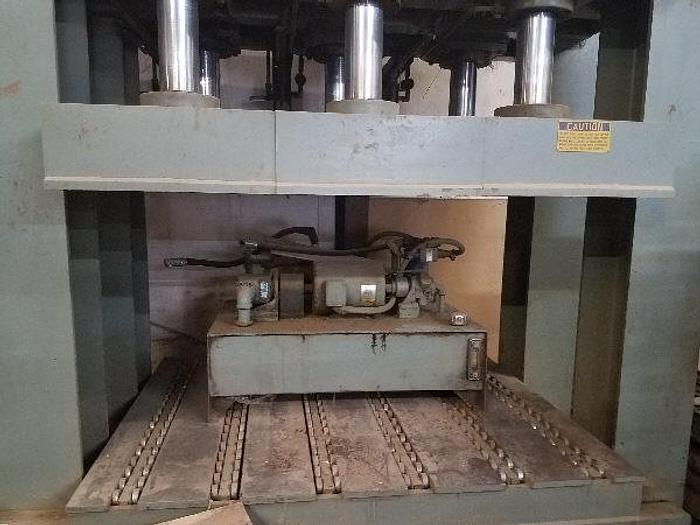

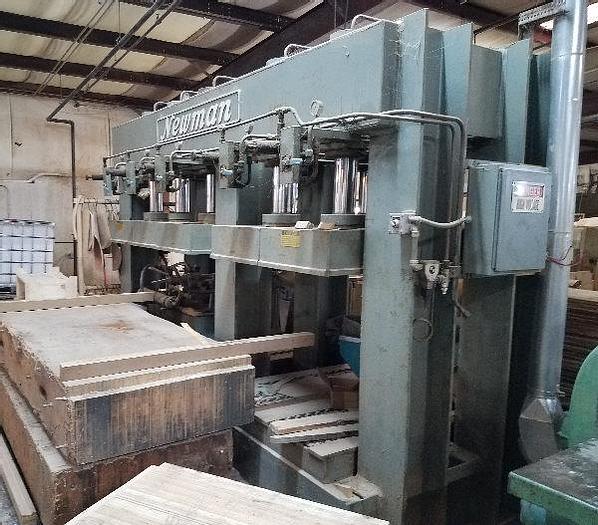

NEWMAN 5-SECTION COLD-PRESS
orCall (828) 328-2641

Specifications
Condition | Used |
Stock Number | H-1374 |
Description
S/N:13833, (460/60/3 electrics), H-1374
General Specifications:
- (5) independently operated 24" x 60" platen sections
- (2) sections ganged together on one side of the center columns & (3) on the other side
- (2) 5" diameter bore hydraulic cylinders per platen
- 1' of stroke with 4' of daylight
- Spring loaded roller guide rails on lower platen base
- 10 HP self-contained hydraulic pump system
- 13.5' x 5' x 9' approximate overall dimensions
- Weighs approx. 20,000 lbs.
