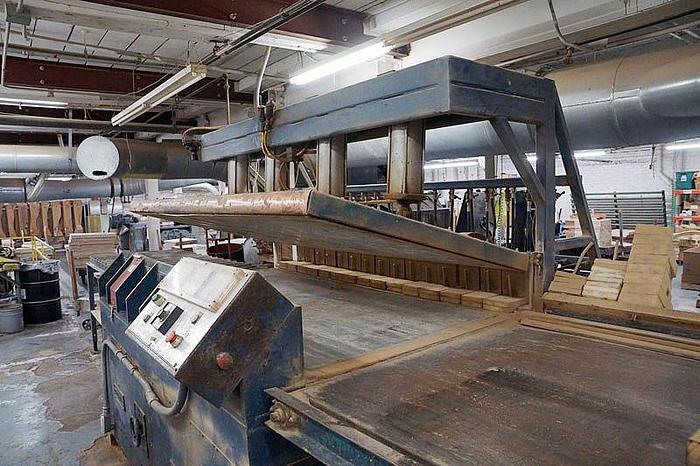

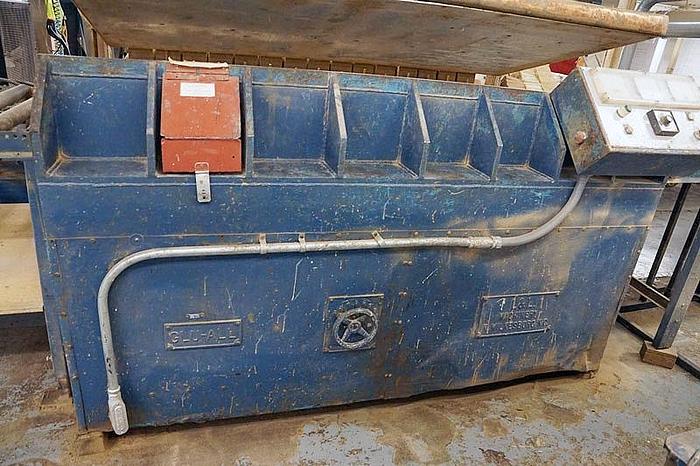

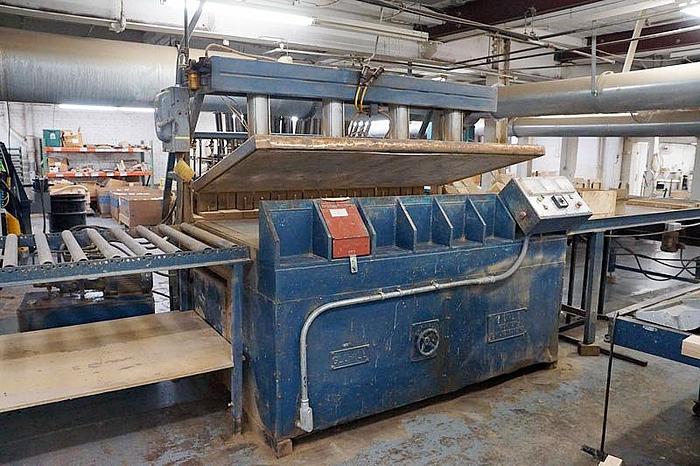

L&L GLUE-ALL GA-84, 84" x 40" RADIO-FREQUENCY GLUER

Specifications
Manufacturer | L&L |
Model | GLUE-ALL GA-84, 84" x 40" RADIO-FREQUENCY GLUER |
Condition | Used |
Stock Number | S-4884 |
Description
L&L GLUE-ALL GA-84, 84" x 40" RADIO-FREQUENCY GLUER
S/N:N/A, (230/60/3 electrics), S-4884
Standard Specifications
- Feed-through batch style press
- 84" x 40" x 6-1/2" approx. gluing capacity
- 20 KW, 230/60/3 radio-frequency generator

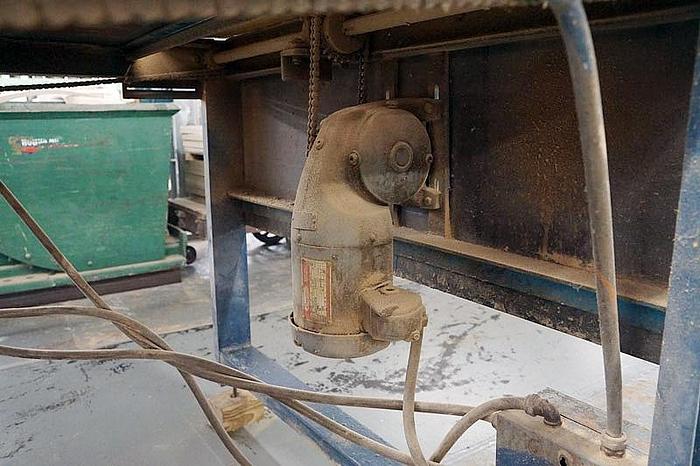

- 1 HP, 230/460/60/3 feed system motor

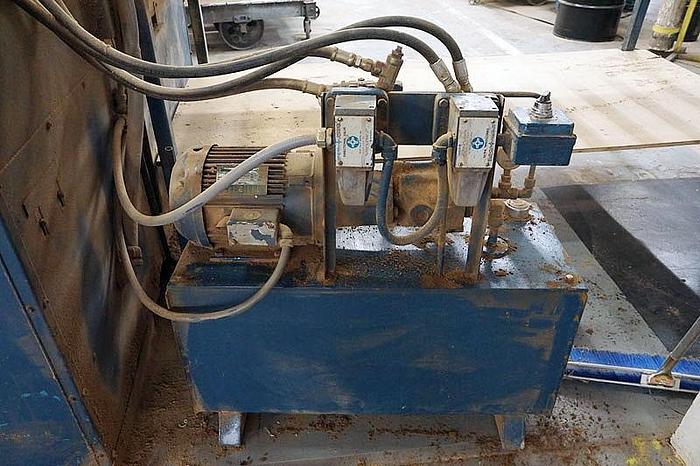

- 5 HP, 230/460/60/3 self-contained hydraulic pump motor
- 91" wide x 46" long top platen

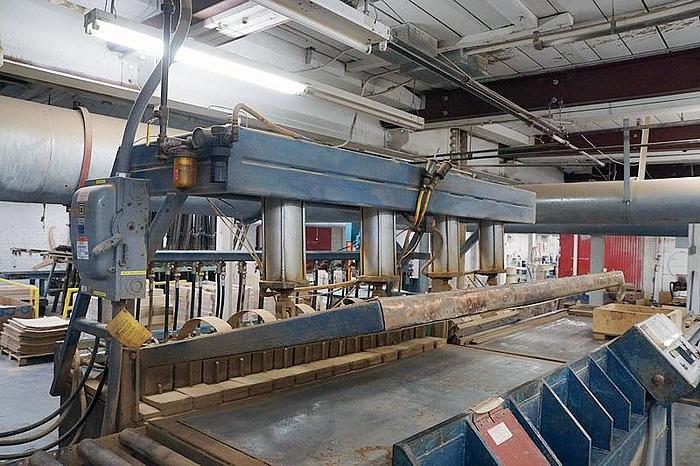

- (4) pneumatic platen hold-down/lift cylinders

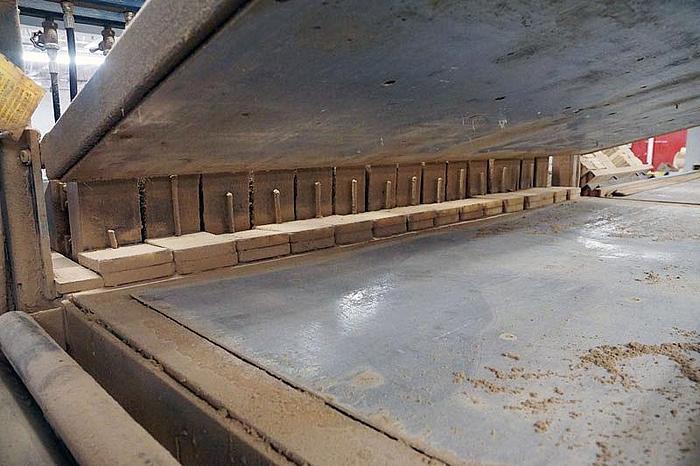

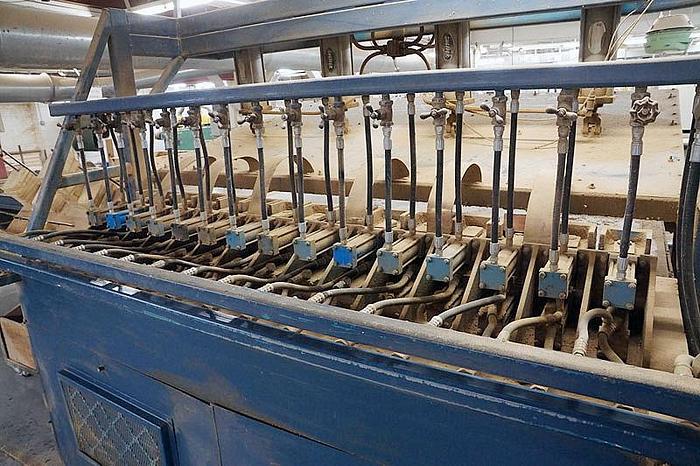

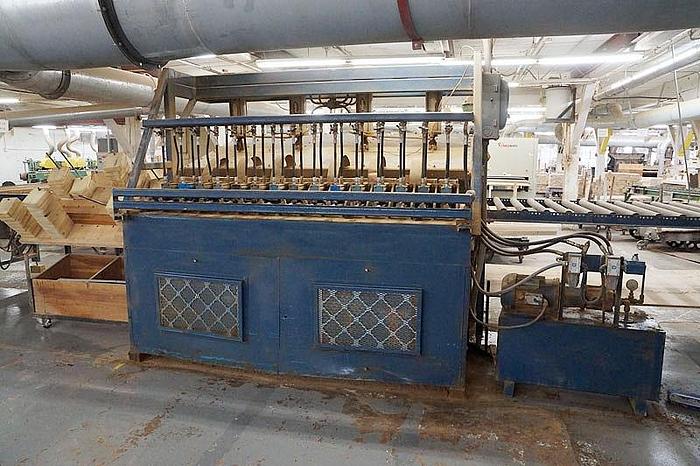

- (15) rear mounted hydraulic side pressure shoes
- Side pressure cylinders accept stackable type pusher shoes

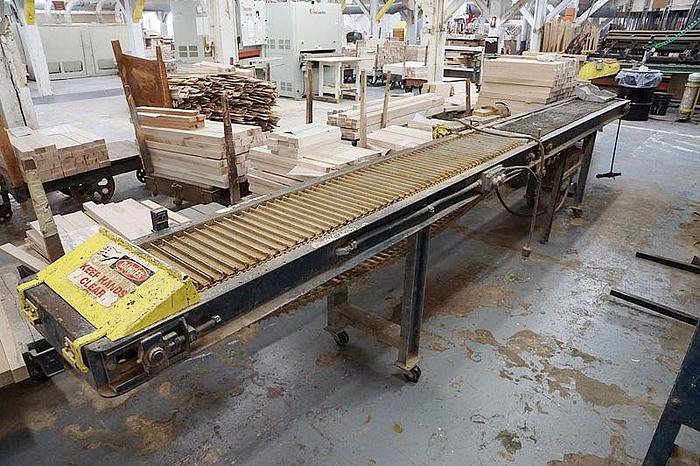

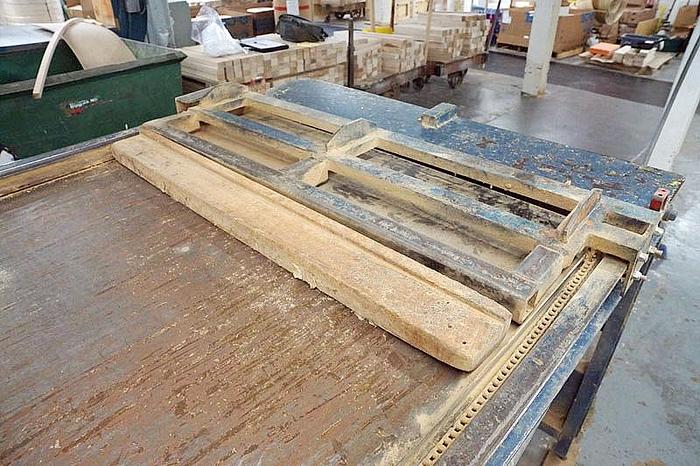

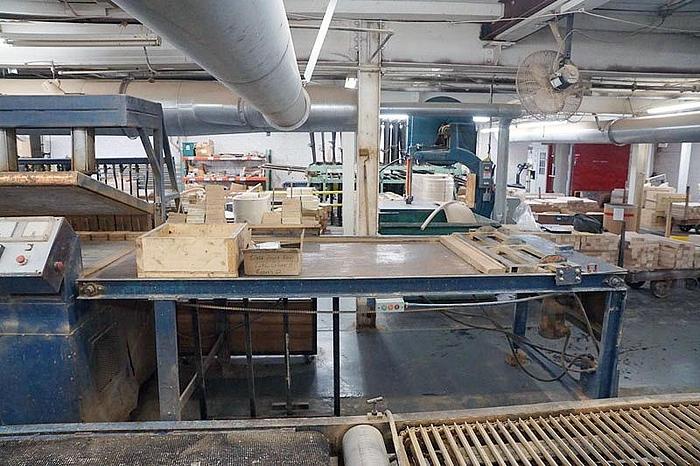

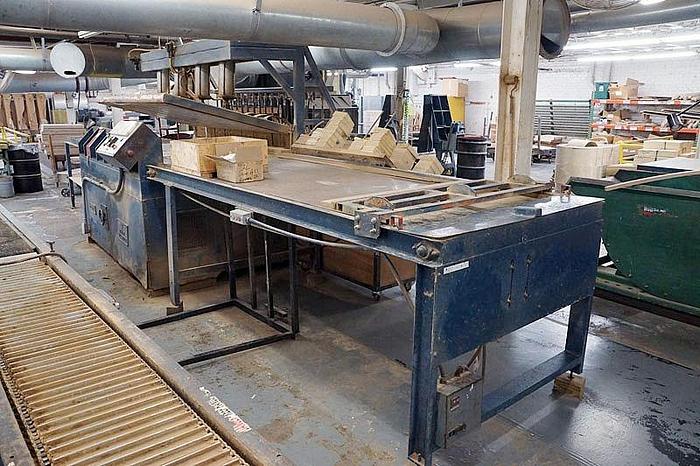

- Right-side lay-up table with chain driven push feeder

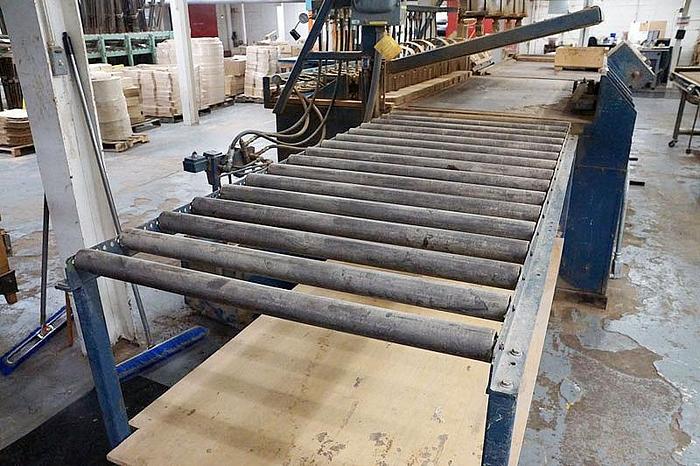

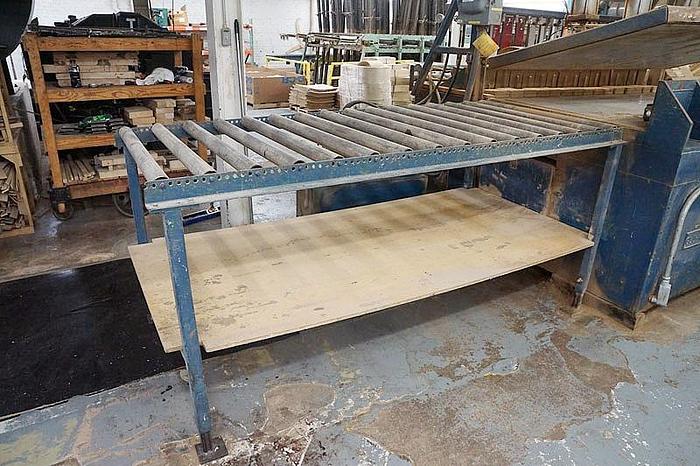

- 44" wide x 95" long outfeed roller conveyor

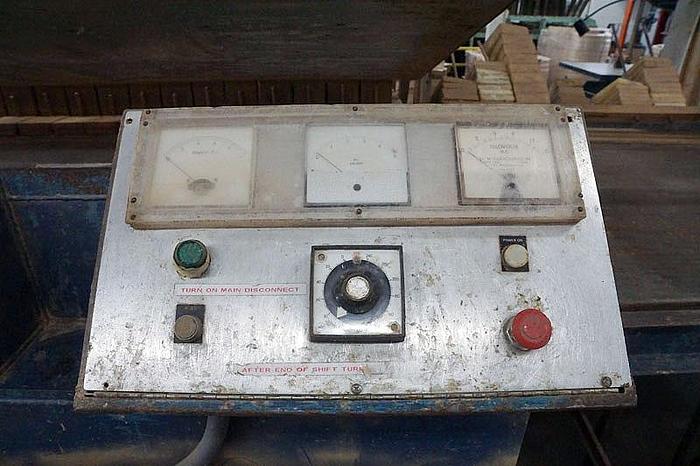

- Front operator control panel with grid, plate, and timer controls
- Includes assorted plastic pressure shoes & manuals
- 8’ x 8-1/2’ x 7-1/2’ approximate overall dimensions
- Weighs approximately 5,000 lbs.
