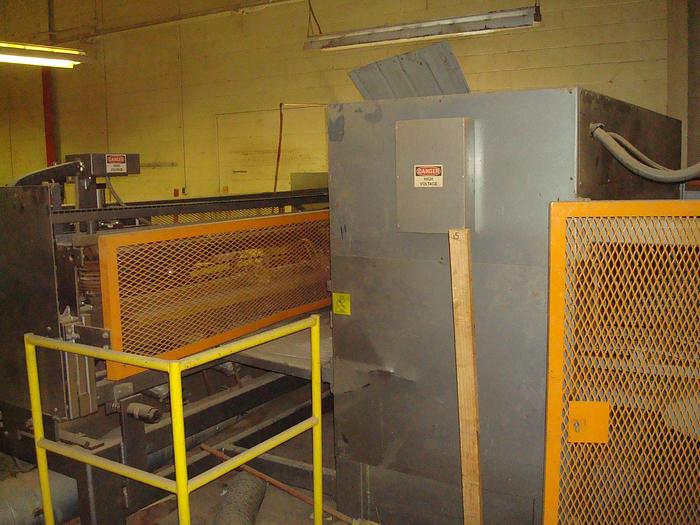

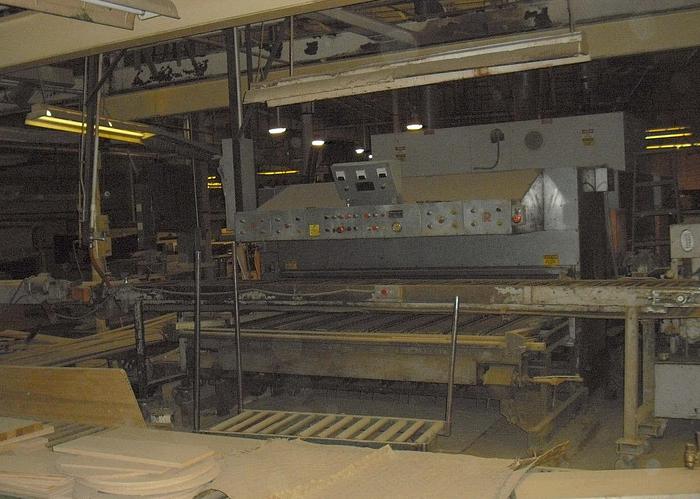

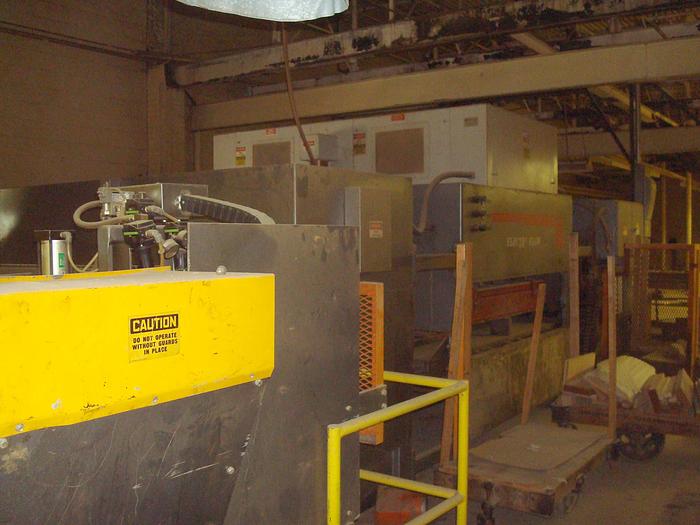

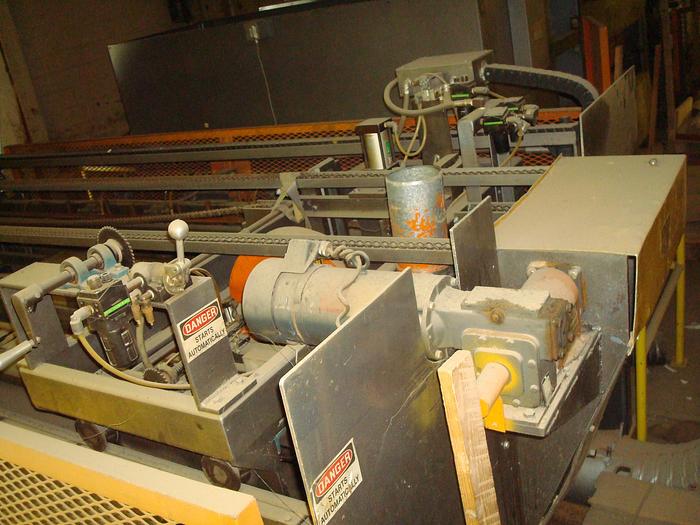

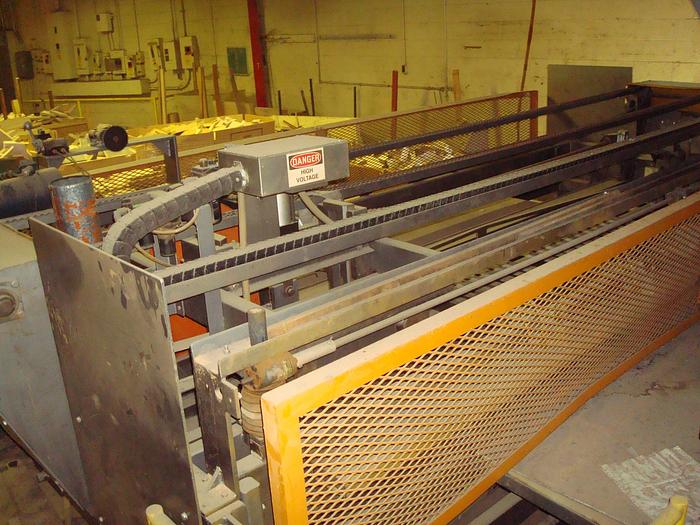

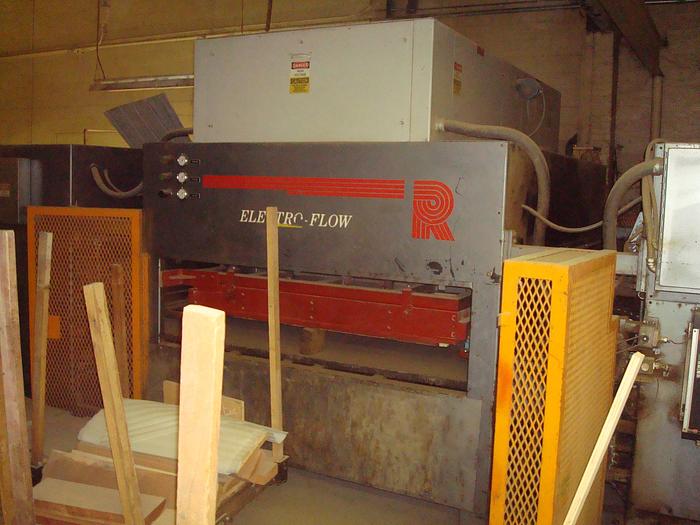

ROSENQUIST ELECTRO-FLOW CONTINUOUS FEED-THROUGH RADIO FREQUENCY GLUER

(460/60/3 electrics), H-1261

The Gluing “system” consists of a conveyorized glue spreader / infeed section / press-gluer section / out feed section / flying cut-off saw and additional miscellaneous items. Following are general brochure specifications, (to be verified as they may not exactly apply to this gluer) - 100" wide by 2" thick material capacity at 20 feet per minute maximum production capability - Up to 2,000 square inches of glue line per minute curing capacity - 20 KW solid state generator located and mounted above the press - Conveyorized glue-spreader with in-feed chain conveyor table - Hydraulic edge pressure and drive system - Edge clamping pressure is applied with precision crowding system - (4) 19" long by 24" wide material contact tracks on 25” centers, (top and bottom) - Fixed height bottom tracks & individual top tracks that provide the pneumatic clamping pressure - Hydraulic driven tracks to insure smooth & dependable operation
