NORTHFIELD 240, 24" TOP & BOTTOM ROUGHING PLANER

NORTHFIELD 240, 24" TOP & BOTTOM ROUGHING PLANER

SN:811521-H, (230/460/60/3 electrics), CS-1181-DH

Standard Specifications:

- 24" x 6" work piece capacity

- 12" min. length, (6" min. butted) x 1/4" min. thickness

- 30 HP upper cutter head motor, 20 HP lower head motor, (5,000 RPM)

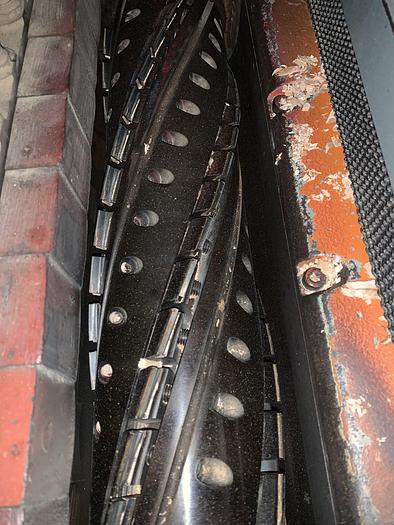

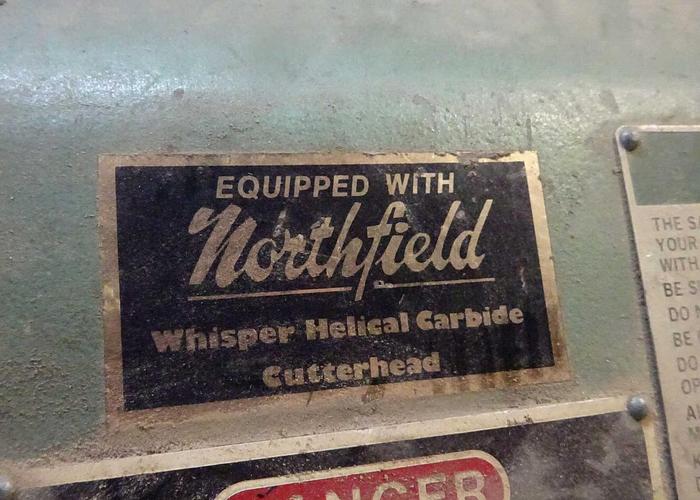

- Northfield Whisper helical carbide cutterhead, (1/2" max. depth of cut)

- 1 HP platen/thickness elevator motor

- 5 HP variable speed feed motor, (25 to 100 ft/min. feed speed)

- 2" concentric chipbreakers with pressure rollers

- (.001" to .100") independent bottom table feed roller adjustment

- Main carpet feed conveyor with (1,300), 9/16" diameter holddown fingers

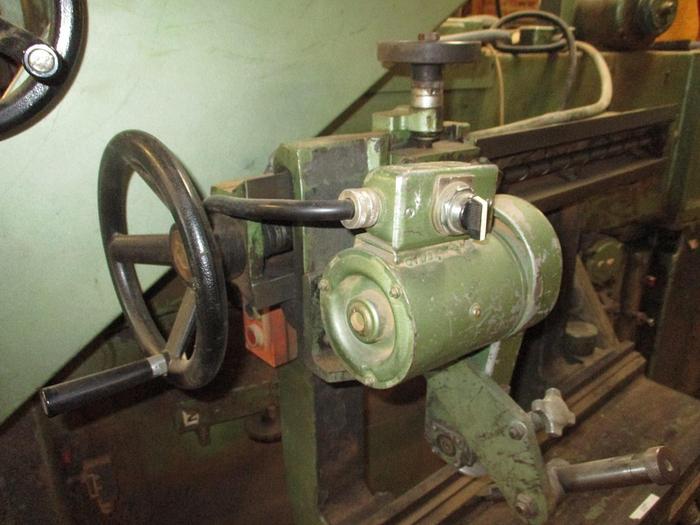

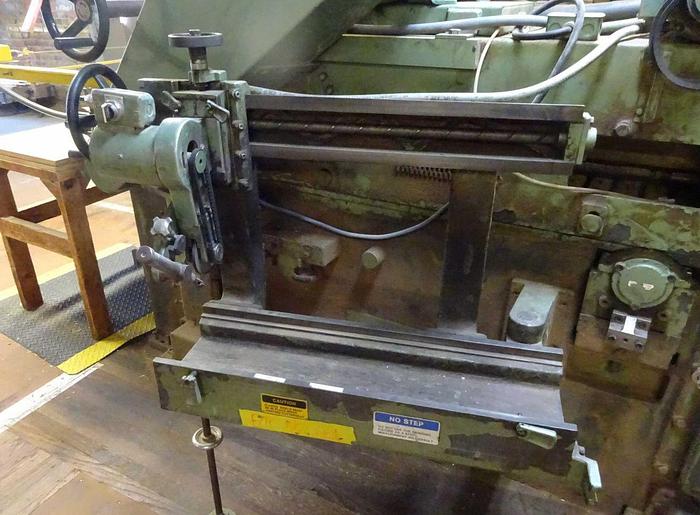

- Includes grinding equipment for upper and lower cutterheads

- 115" x 79" x 69" approx. overall dimensions

- Weighs approx. 12,500 lbs.

*note: see Item # S-4706b for information regarding an infeed belt conveyor that was used with this planer. (not included as a part of CS-1181-DH)*
