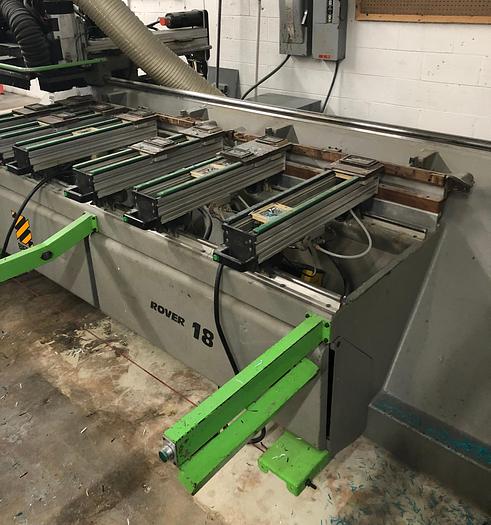

BIESSE ROVER-18 CNC MACHINING CENTER

BIESSE ROVER-18 CNC MACHINING CENTER

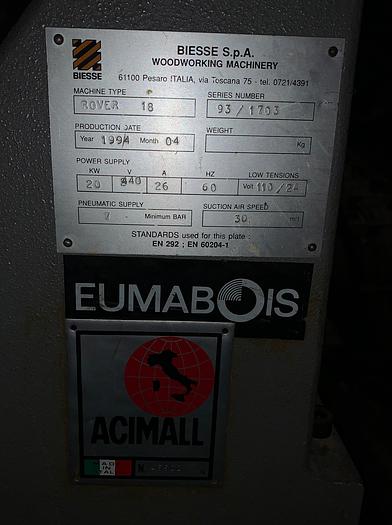

S/N:93/1703 (1994), (240/60/3 electrics), CS-1158-LMF

General Specifications: (to be verified)

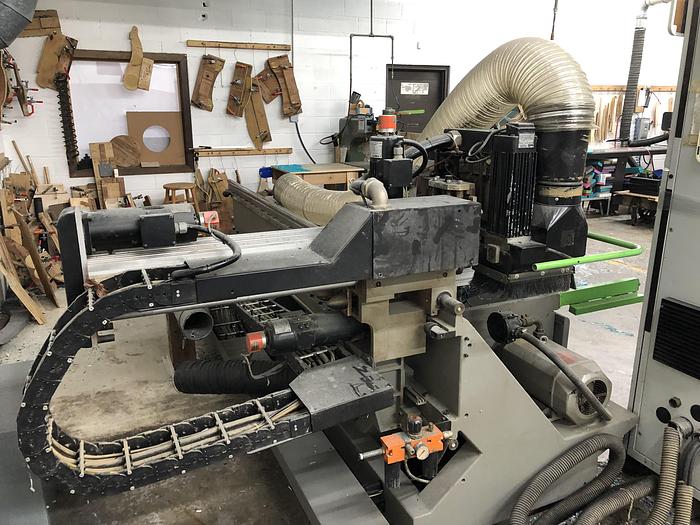

- (1) 5 HP, (24,000 RPM) ISO-30 type router spindle, (LH or RH rotation)

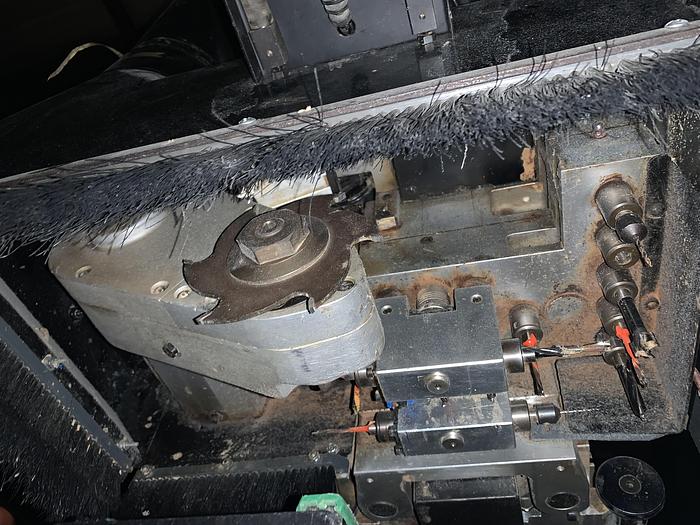

- (1) grooving saw, (4.7", 120 mm dia. Saw blade)

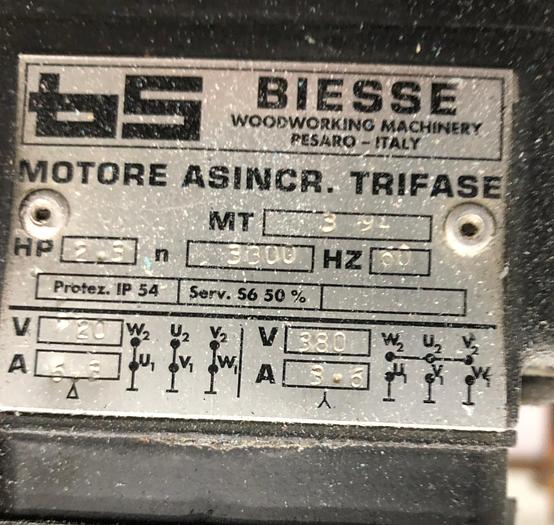

- 2.3 HP main boring head motor

- (12) vertical boring spindles, (7) X-axis & (5) Y-axis on 32 mm centers

- (2) double horizontal opposed boring spindles

- 91" x 24-3/4" working area

- (6) adjustable panel support rails with (2) adjustable vacuum cups each

- (2) pop-up rear fences with pop-out squaring pins

- CNI "NC 481" CNC 3-Axis controller

- Tool correction, helical interpolation, feed speed override, & background editing features

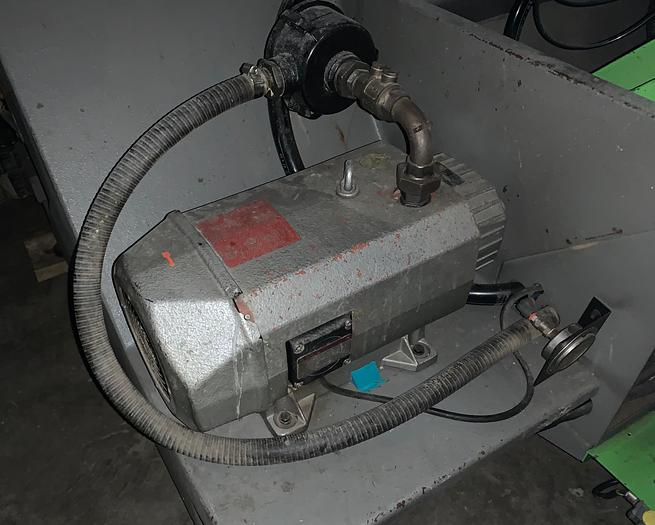

- Integrated Becker vacuum pump

- (1) 6” diameter & (1) 4-3/4” diameter dust outlet

- 144" x 96" x 60” main machine dimensions with 32” x 40” x 80” control

- Weighs approx. 5,000 lbs.
