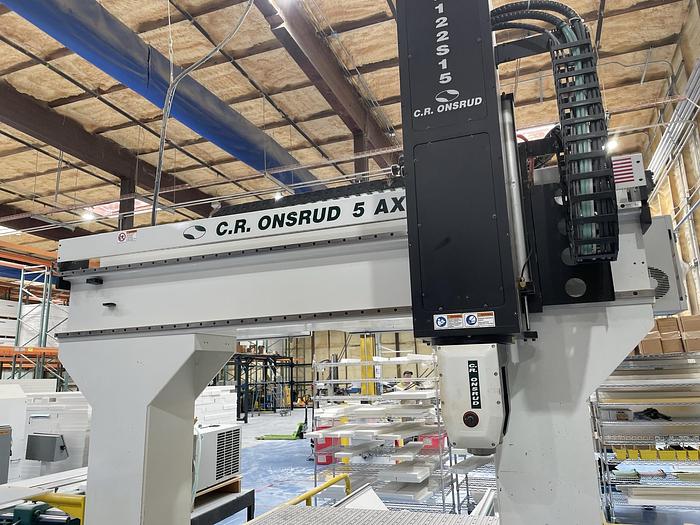

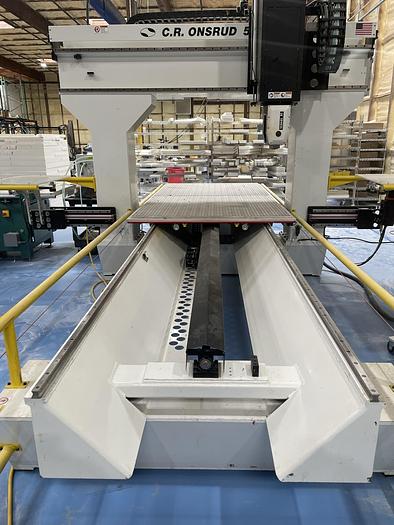

2017 C.R. ONSRUD F122S15, 5-AXIS CNC ROUTER WITH 5' x 10' MOVING TABLE

C.R. ONSRUD F122S15, 5-AXIS CNC ROUTER WITH 5' x 10' MOVING TABLE

(2017 machine),  H-1808

General Specifications, (to be verified):

- 29” of vertical Z-stroke

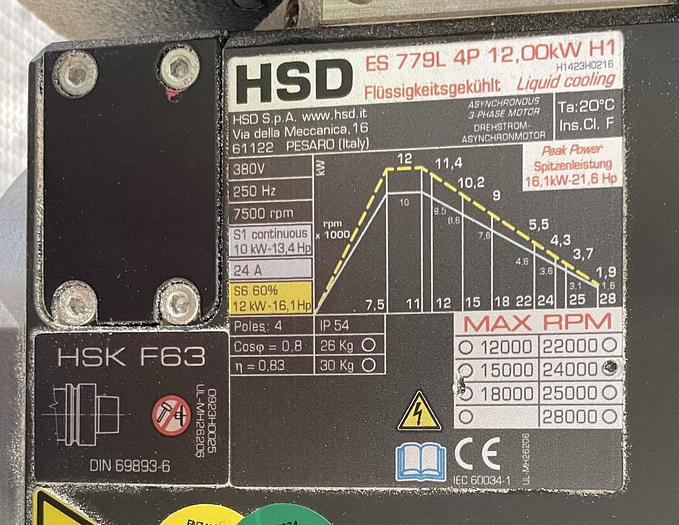

- 15 HP, 4-Pole, 24,000 RPM double-armature 5-axis short-nose router spindle

- +/- 120 degree A-axis rotation & + 300/- 115 degree C-Axis rotation

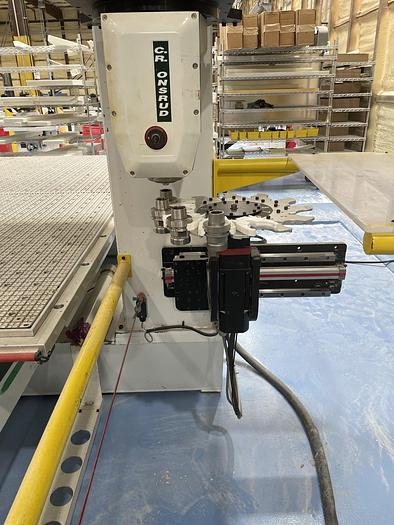

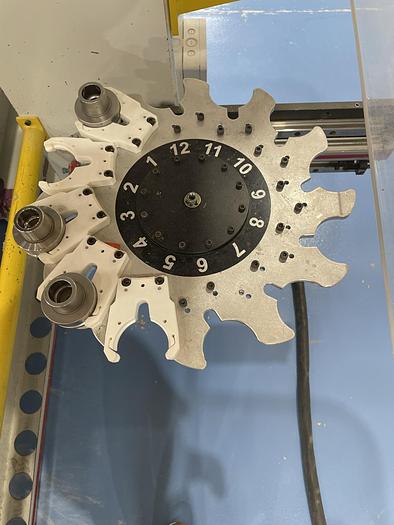

- Dynamic 12-tool automatic rotary tool changer

- HSK-63 spindle taper tooling

- Aggregate anti-rotation retention ring to allow for aggregate pick-up from ATC

- Liquid cooled spindle with chiller

- Aluminum universal high flow vacuum table system upgrade

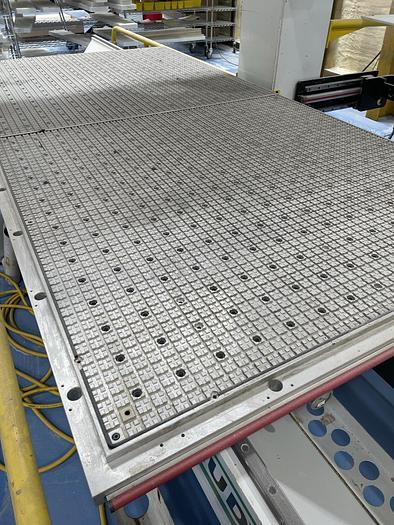

- 10’ x 5’ phenolic vacuum grid table with pneumatic controlled vacuum switch

- Pneumatic controlled pop-up perimeter positioning pins

- OSAI open PC front series system with OSAI handheld remote jog pendant

- Includes 20 KVA Isolation transformer

- Standard centralized manual greased lubrication

- Air-conditioned electronics cabinets

- Includes (2) high HP regenerative blower style vacuums, (high CFM capability)

- Includes (5) ER32-HSK-63F tool holders

- Includes tools and additional accessories

- Currently under power and in use
