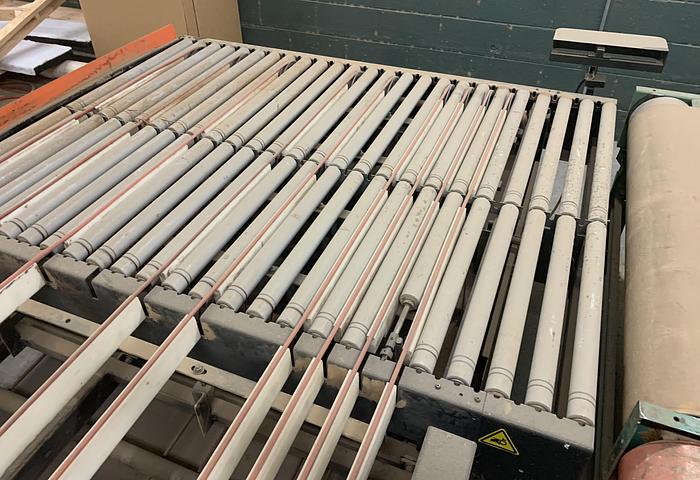

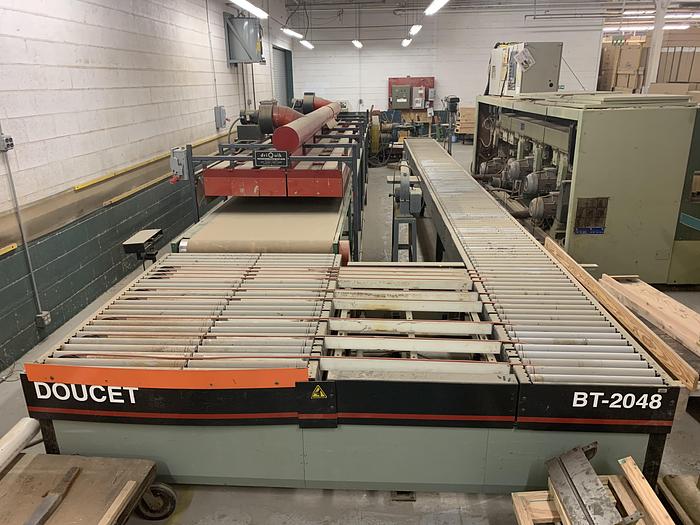

DOUCET BT-2048 RETURN CONVEYOR

DOUCET BT-2048 RETURN CONVEYOR

(460/60/3 electrics), S-4980

Standard Specifications, (feed speeds need to be verified):

- Set up for left-side of machine return back to the operator

- 57" wide x 76" long "outfeed" receiving conveyor

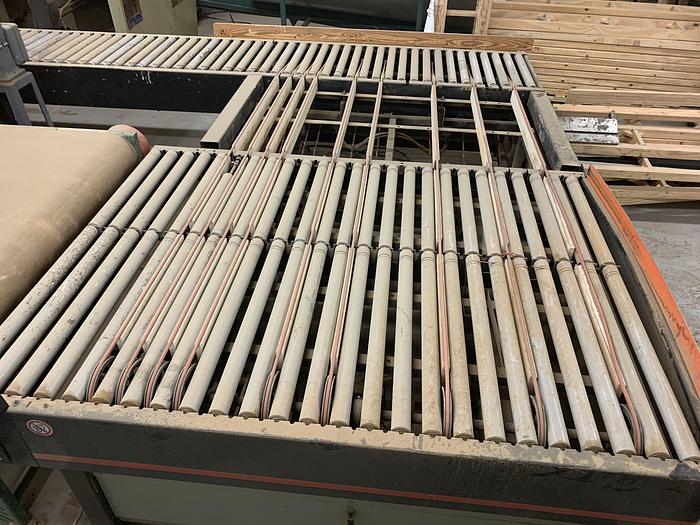

- 38" wide x 68" long center section between receiving & sending conveyors

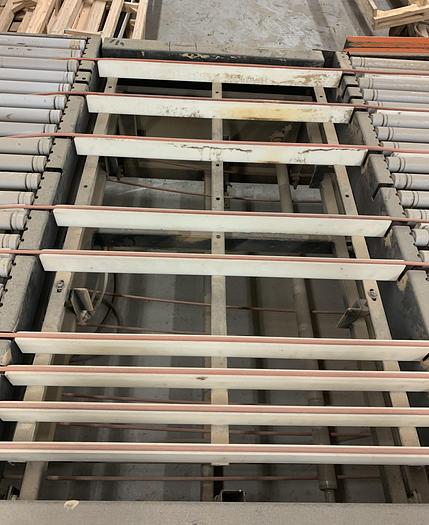

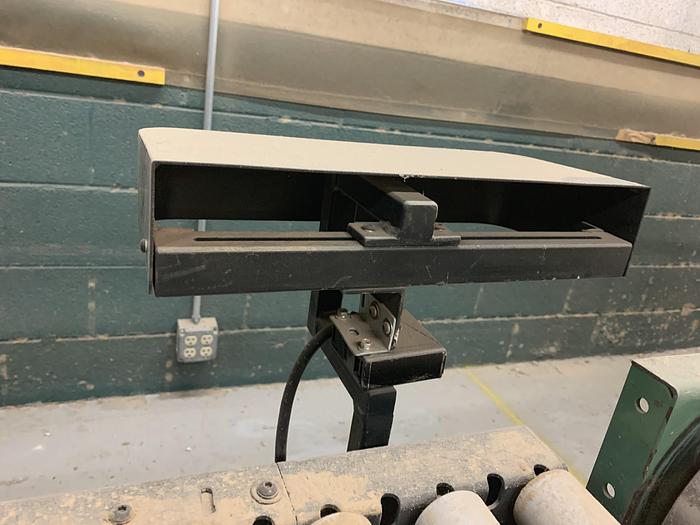

- (9) lateral rubber transfer belts, (automatically activated via photo eye)

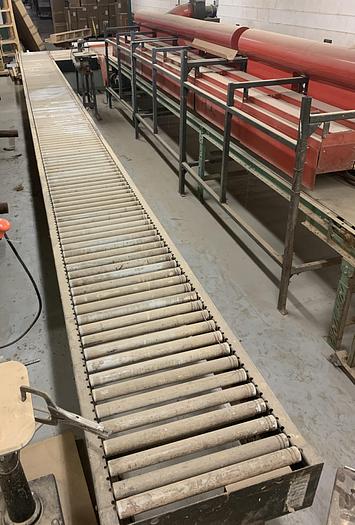

- 24" wide x 36' long return x 30" tall return conveyor

- 2-1/2" diameter powered PVC rollers on 3" centers

- (30 to 90 ft/min) receiving conveyor table

- (60 to 180 ft/min) operator return conveyor

- 18 ft/min. belt transfer speed

- ~123" wide x 76" long receiving/transfer/sending section

- Estimated weight approximately 6,000 lbs.
