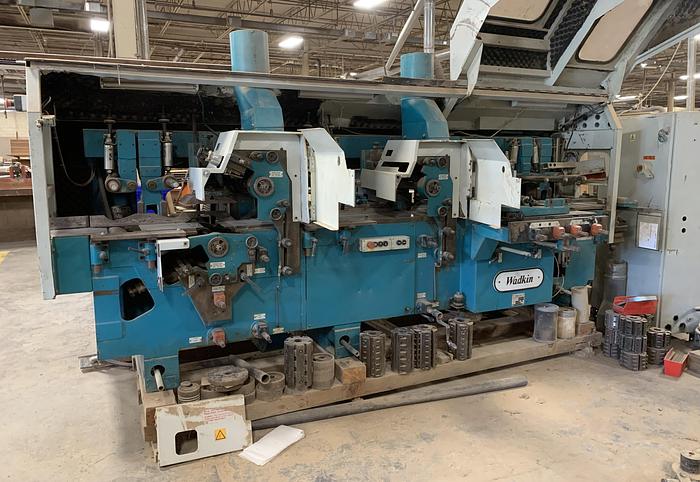

WADKIN XE-220/6, 6-HEAD HIGH-SPEED MOULDER

WADKIN XE-220/6, 6-HEAD HIGH-SPEED MOULDER

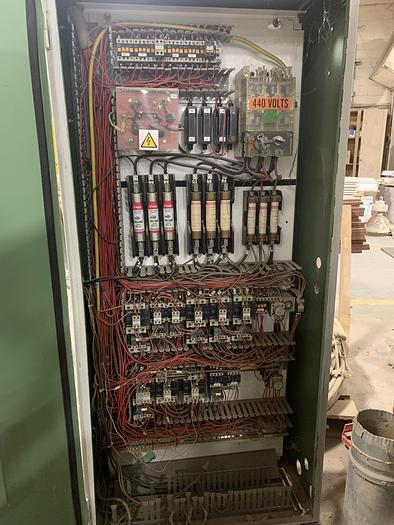

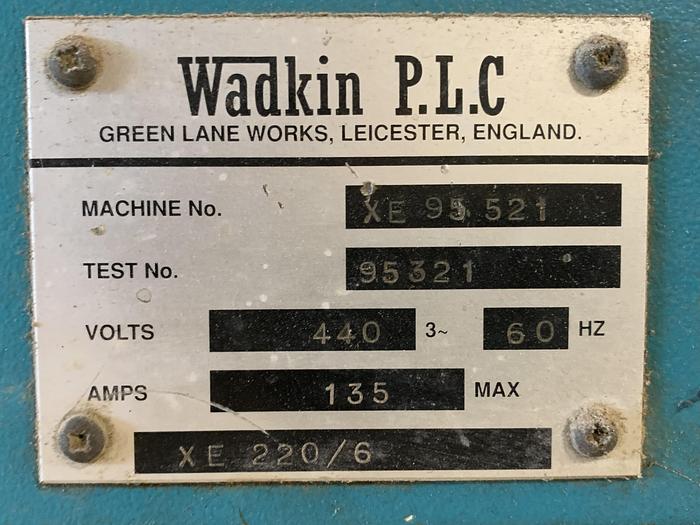

S/N:XE 95321, (460/60/3 & 135 max. amps electrics), CS-1198-WI

Standard Specifications:

- 9" x 5" working capacity

- 20 to 138 ft/min variable feed system, (via variable cone pulley)

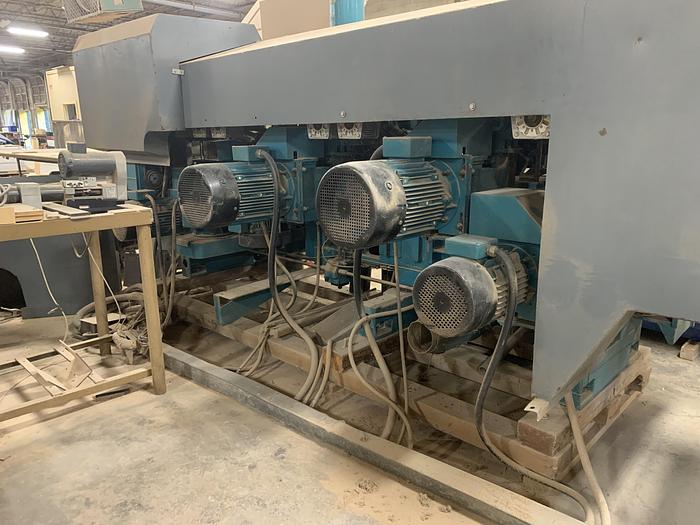

- 10 HP, 230/440/60/3 bottom horizontal spindle

- 10 HP, 208-230/440/60/3 left vertical spindle

- 10 HP, 208-230/440/60/3 right vertical spindle

- 20 HP, 208-230/440/60/3 top horizontal spindle

- 20 HP, 208-230/440/60/3 top horizontal spindle

- 15 HP, 208-230/440/60/3 bottom horizontal spindle

- ~15 HP, 230/440/60/3 feed motor

- 1.5 HP, 208-230/440/60/3 feed beam raise/lower motor

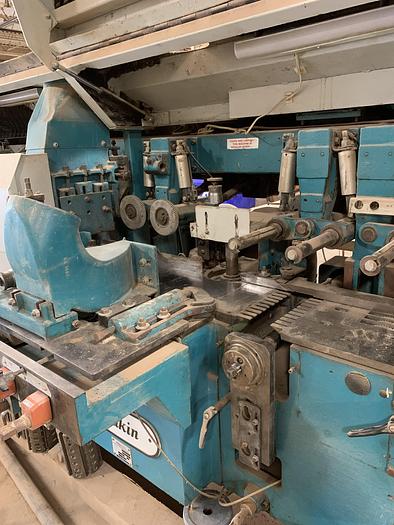

- Left, right, top and bottom heads straight-knifed jointed

- Outboard bearing on top and bottom heads

- Large diameter cutting circles

- Cardan drive feed system

- 1-13/16" diameter spindles

- (3) 6" diameter, (1) 7" diameter, & (2) 8" diameter dust-outlets

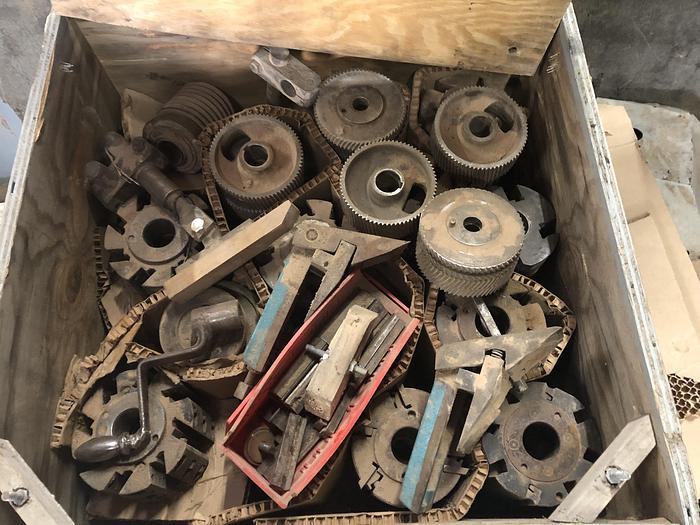

- Includes cutter-heads and additional accessories

- 13' x 5' x 6' approx. overall dimensions of moulder

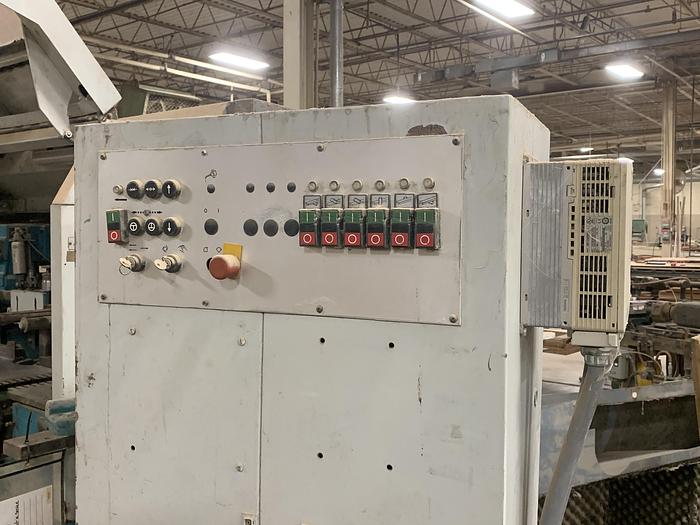

- 36" x 16" x 5-1/2' remote control panel

- Weighs approx. 10,000 lbs.
