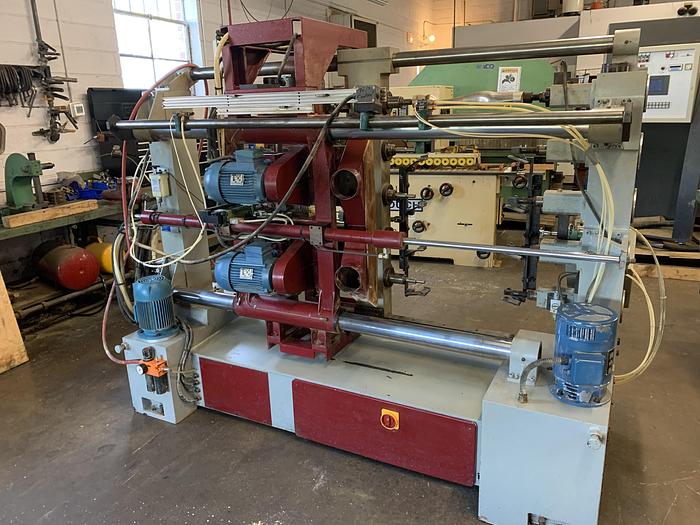

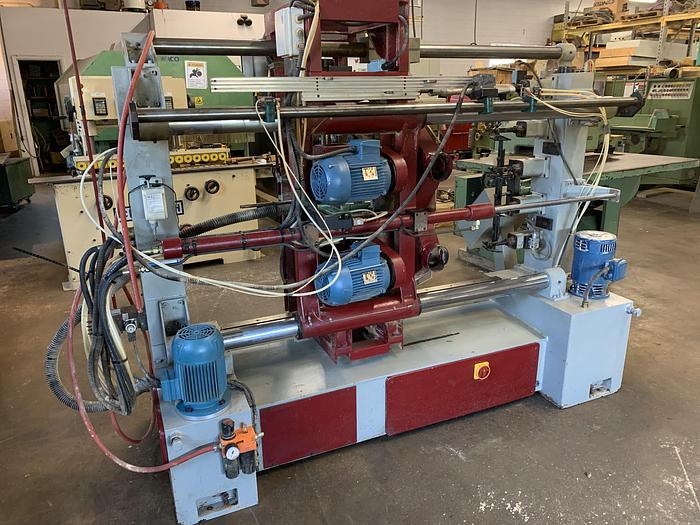

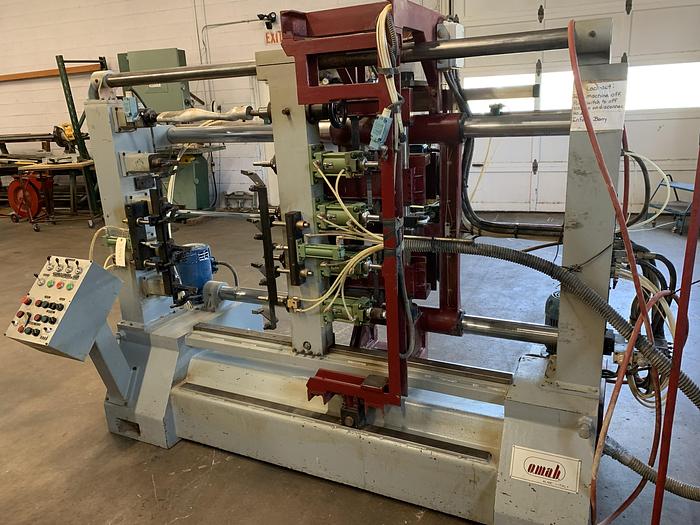

OMAB CHIP-100, 4-SPINDLE COPY SHAPER

OMAB CHIP-100, 4-SPINDLE COPY SHAPER

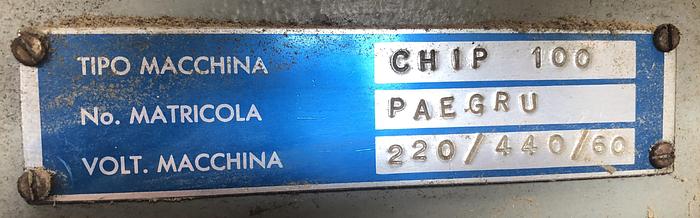

S/N:PAEGRU, (240/460/60/3 electrics), S-4983

Standard Specifications:

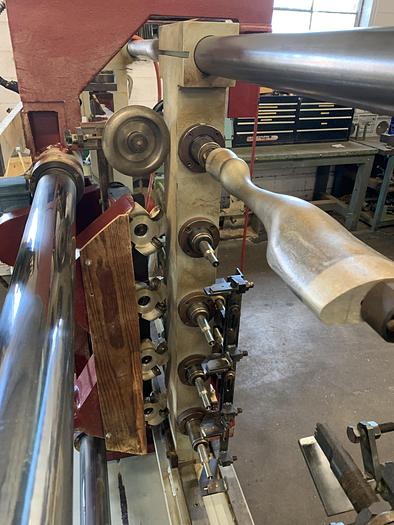

- 8" center to center distance between chucks

- ~36" workpiece length capacity

- Utilizes a 1 to 1 product template to trace

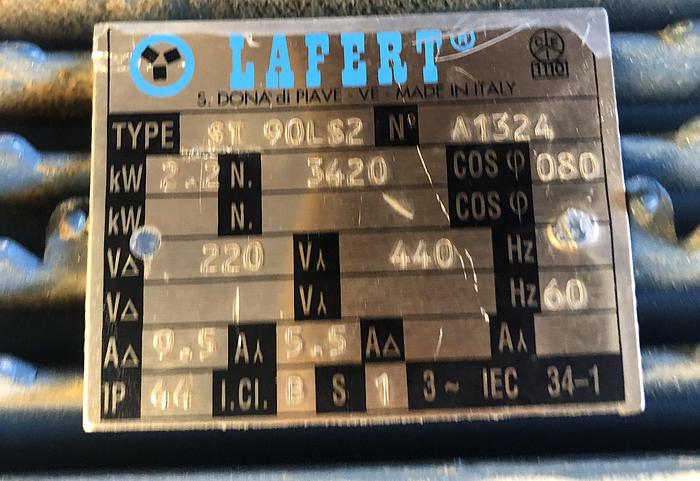

- (2) 3 HP, (220/440/60/3) cutterhead motors, (1 motor per 2 spindles)

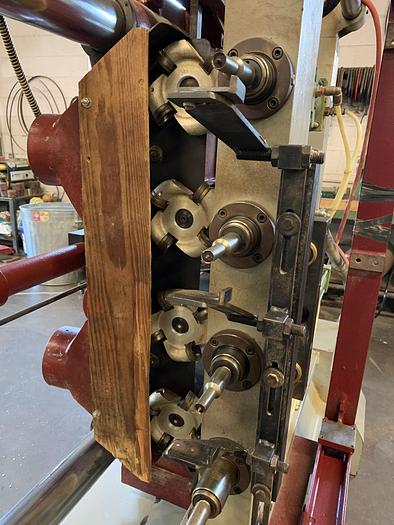

- (4) cup style knives per cutterhead, (4 cutterheads)

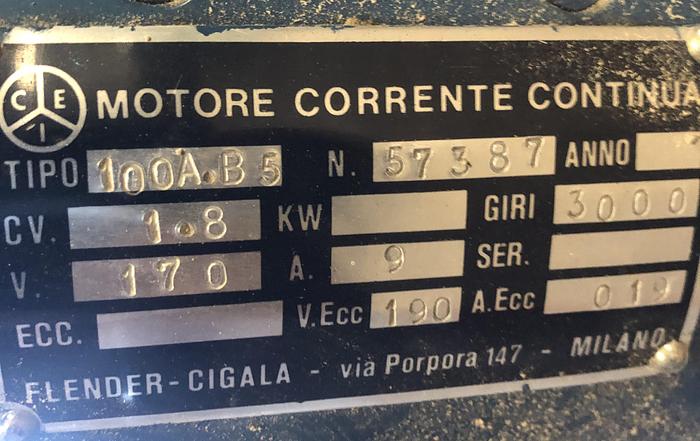

- ~2.5 HP, (170 V DC) variable speed work-piece rotation motor

- Hydraulic variable speed cutter carriage traverse

- Multiple fixed speed cutter carriage traverse zones with adjustable limit

- Individual pneumatically operated workpiece chucks

- Sanding stations removed from the machine

- 4' x 8' x 6-1/2' approximate overall dimensions

- Weighs approx. 3,500 lbs.
