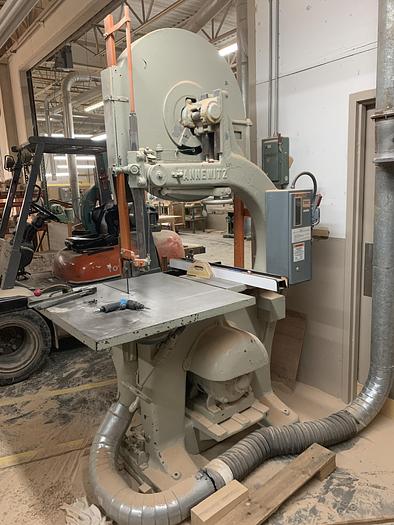

TANNEWITZ GH, 36" BANDSAW

TANNEWITZ GH, 36" BANDSAW

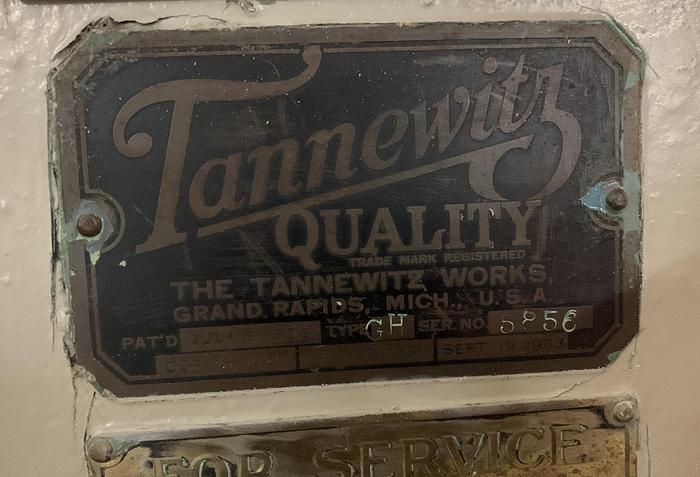

S/N:5856, (220/440/60/3 electrics), H-1888

Standard Specifications: (to be verified)

- 5 HP, 220/440/60/3 motor, (direct drive)

- 35-1/2" throat width with 20" under the guide capacity

- 1/16" to 2" wide x 19'-9" max. length blade capacity

- 36" x 37" tilting table, (41" working height)

- 16-3/4" x 20-1/4" stationary auxiliary wood table

- Bottom manual foot operated brakes

- ~4" diam. dust outlet at lower wheel

- 37" x 65" x 104" approx. overall dimensions

- Weighs approx. 3,000 lbs.
