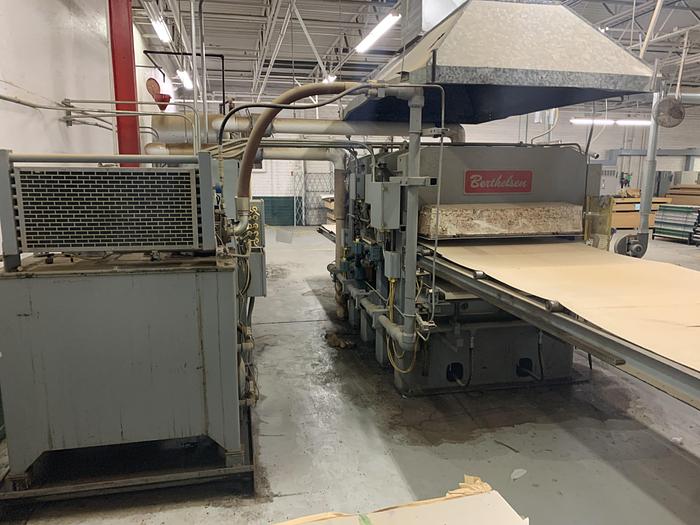

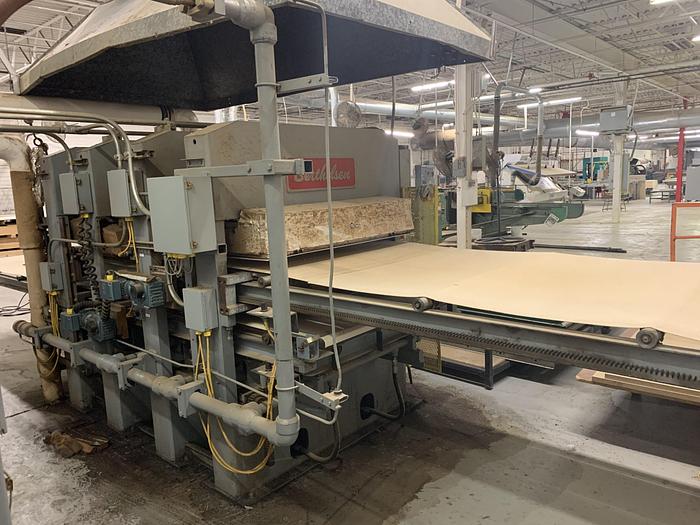

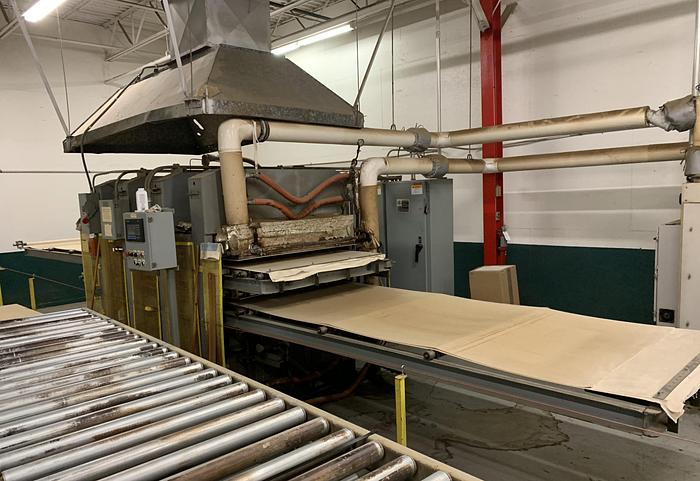

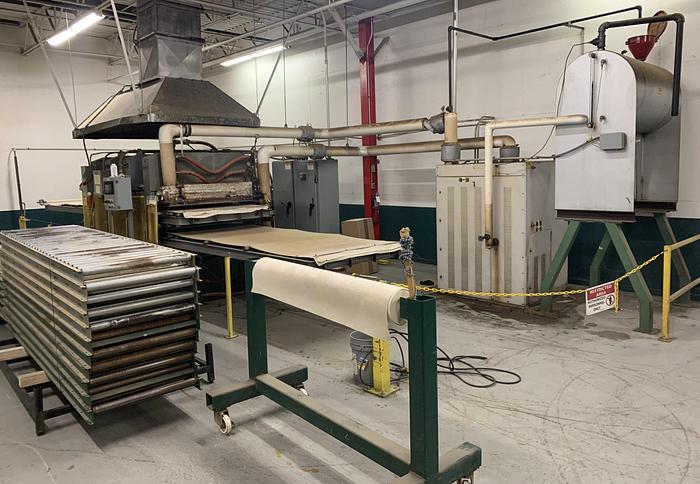

BERTHELSEN 5' x 10' 2-PLY HOT SHUTTLE PRESS

BERTHELSEN 4' x 8' "TWO-PLY" HOT SHUTTLE PRESS

S/N:020405, (460/60/3 electrics)

Standard Specifications:

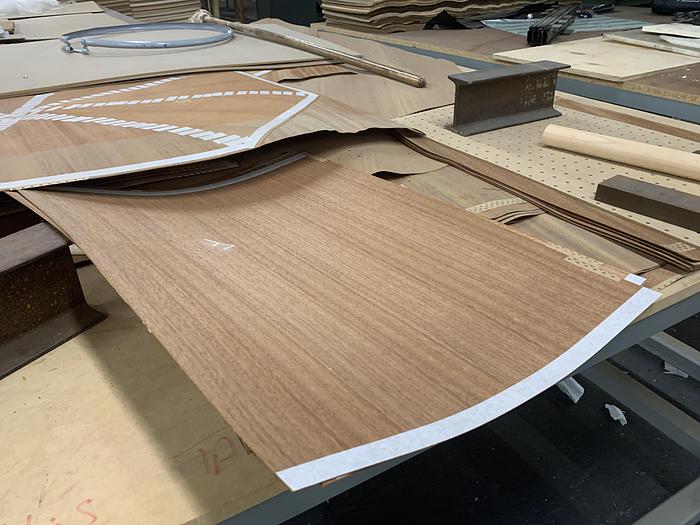

- Applies heat & pressure for lamination and bonding

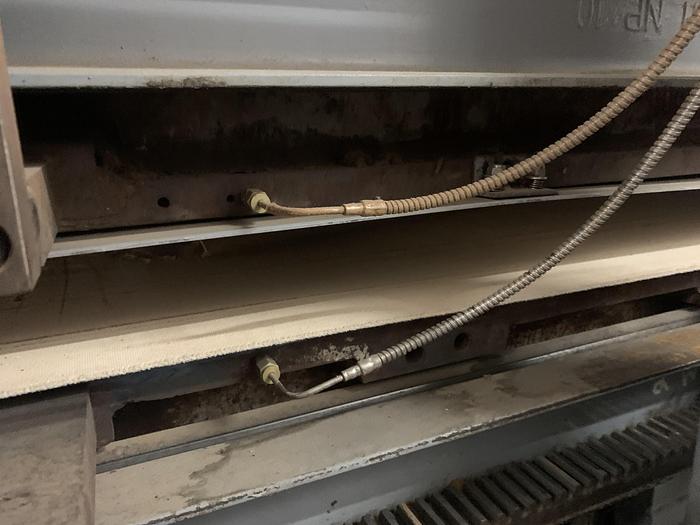

- Dual platen, (2 ply) shuttle system

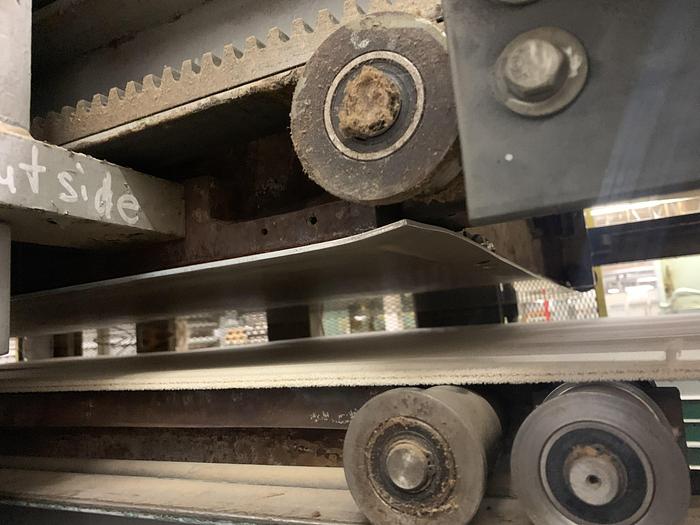

- Alternates pressing between platens for continuous operation

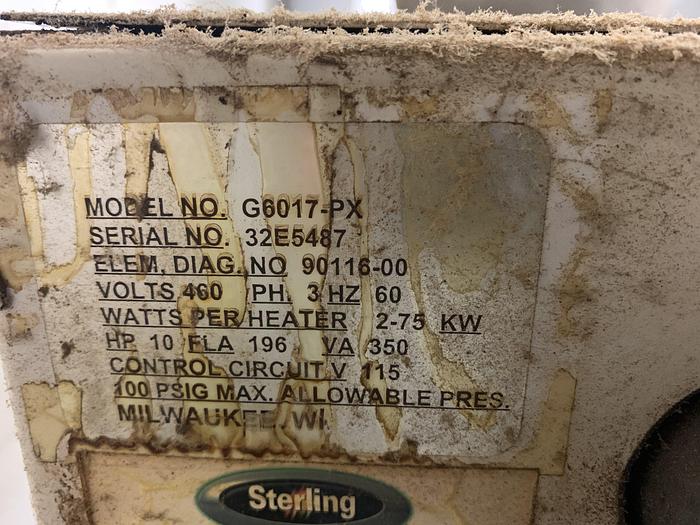

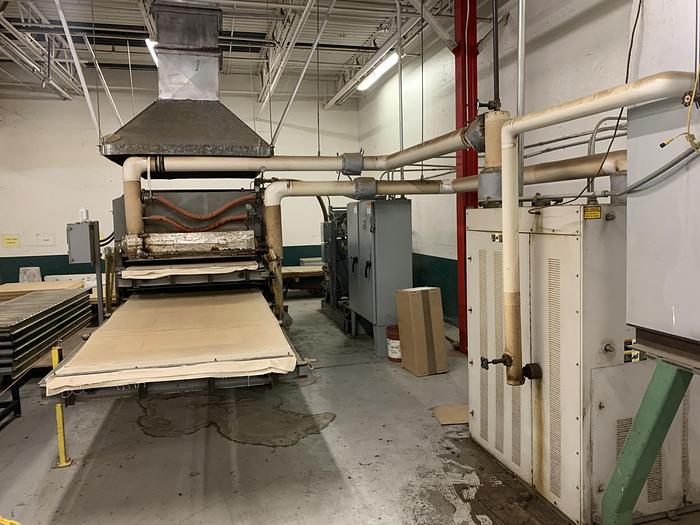

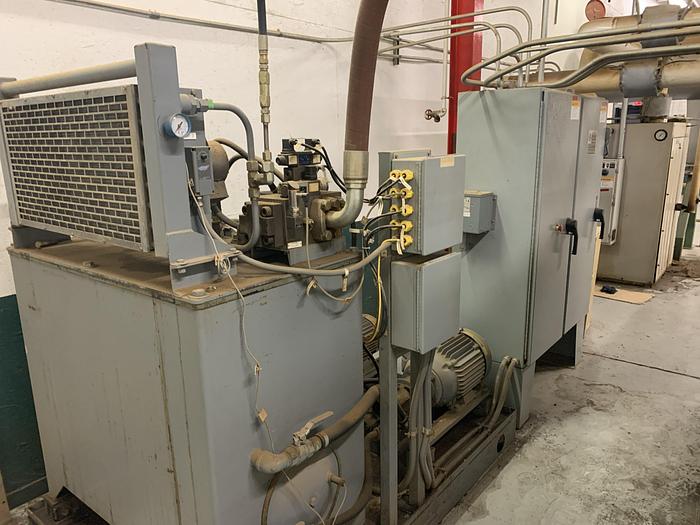

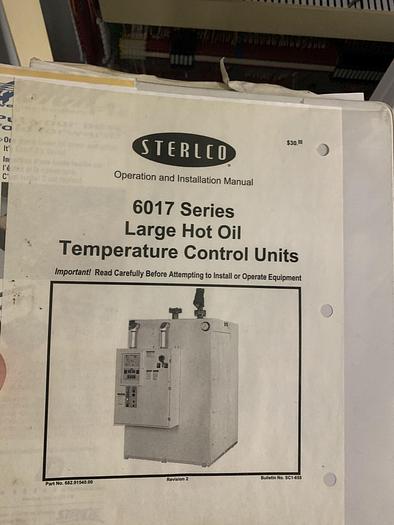

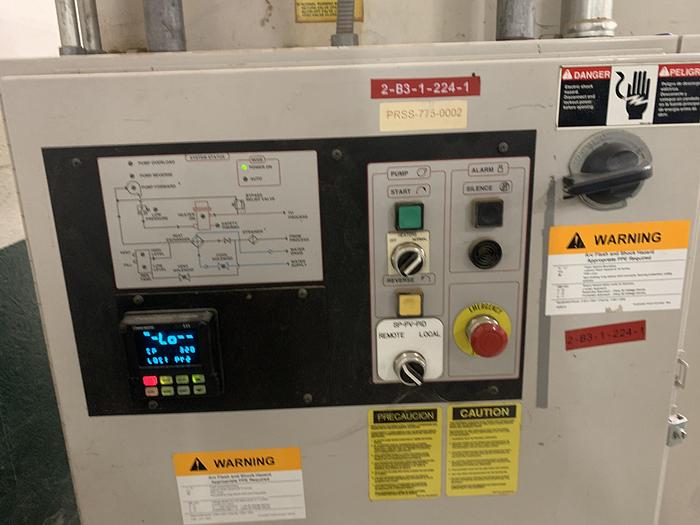

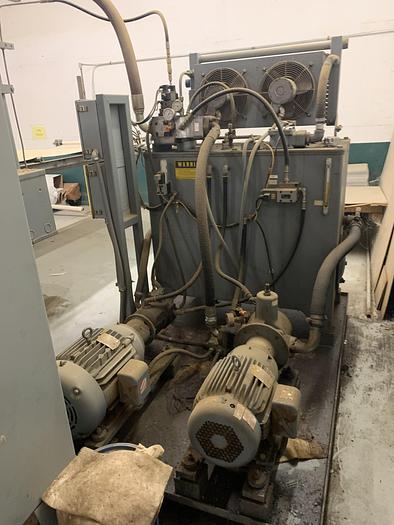

- Sterling G6017-PX, (2 to 75 KW per heater) electrical recirculating oil heating system

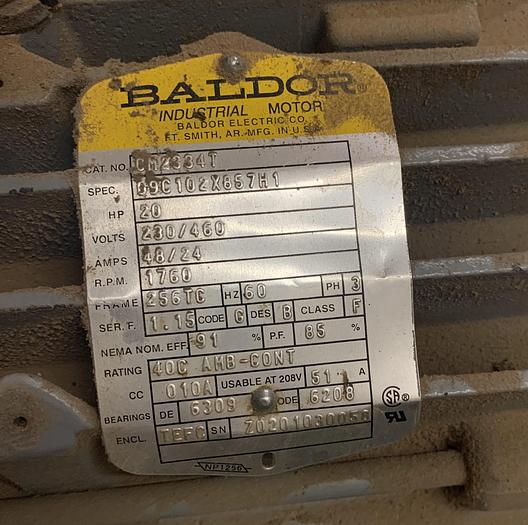

- 20 HP & 15 HP, 230/460/60/3 oil circulating motors

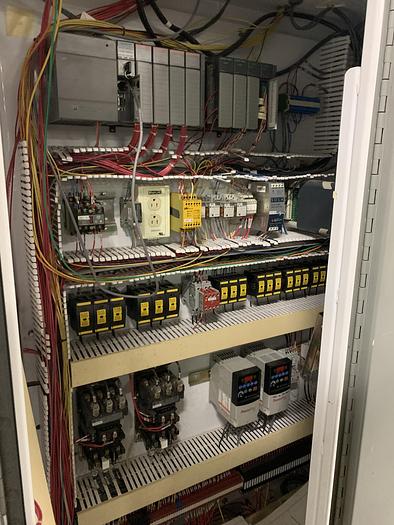

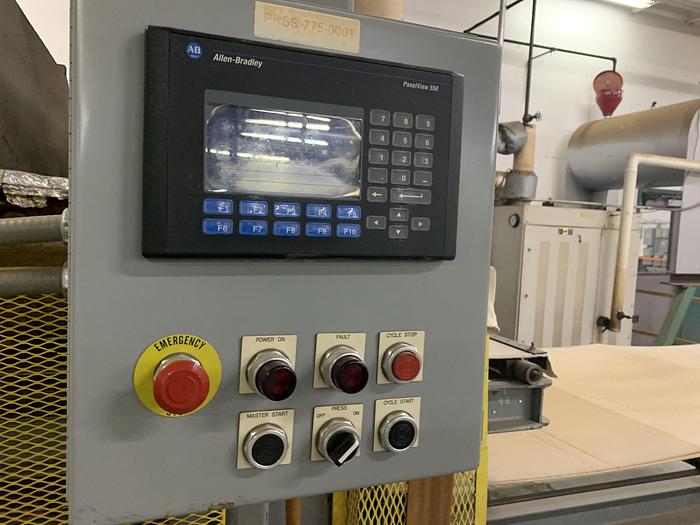

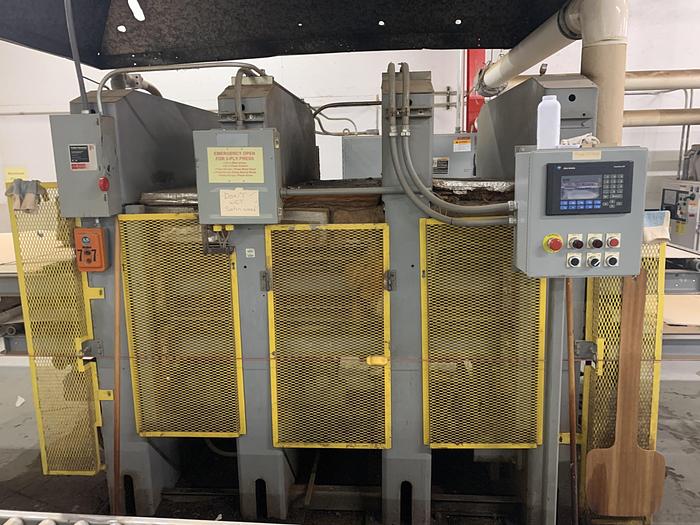

- Semi-automatic operations - (Allen-Bradley PanelView 550 interface)

- 11-1/2’ long x 7-1/2’ wide x ~ 8’ tall overall dimensions of the hot press

- 10’ long x 5’ wide x 4’ working height dimensions of the left-side infeed conveyor

- 10’ long x 5’ wide x 3’ tall working dimensions of the right-side infeed conveyor

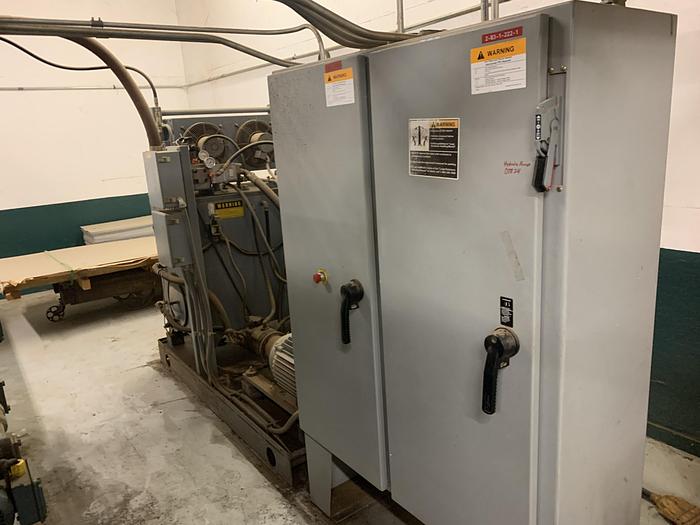

- 51” x long x 21” wide x 78” tall overall dimensions of control box
