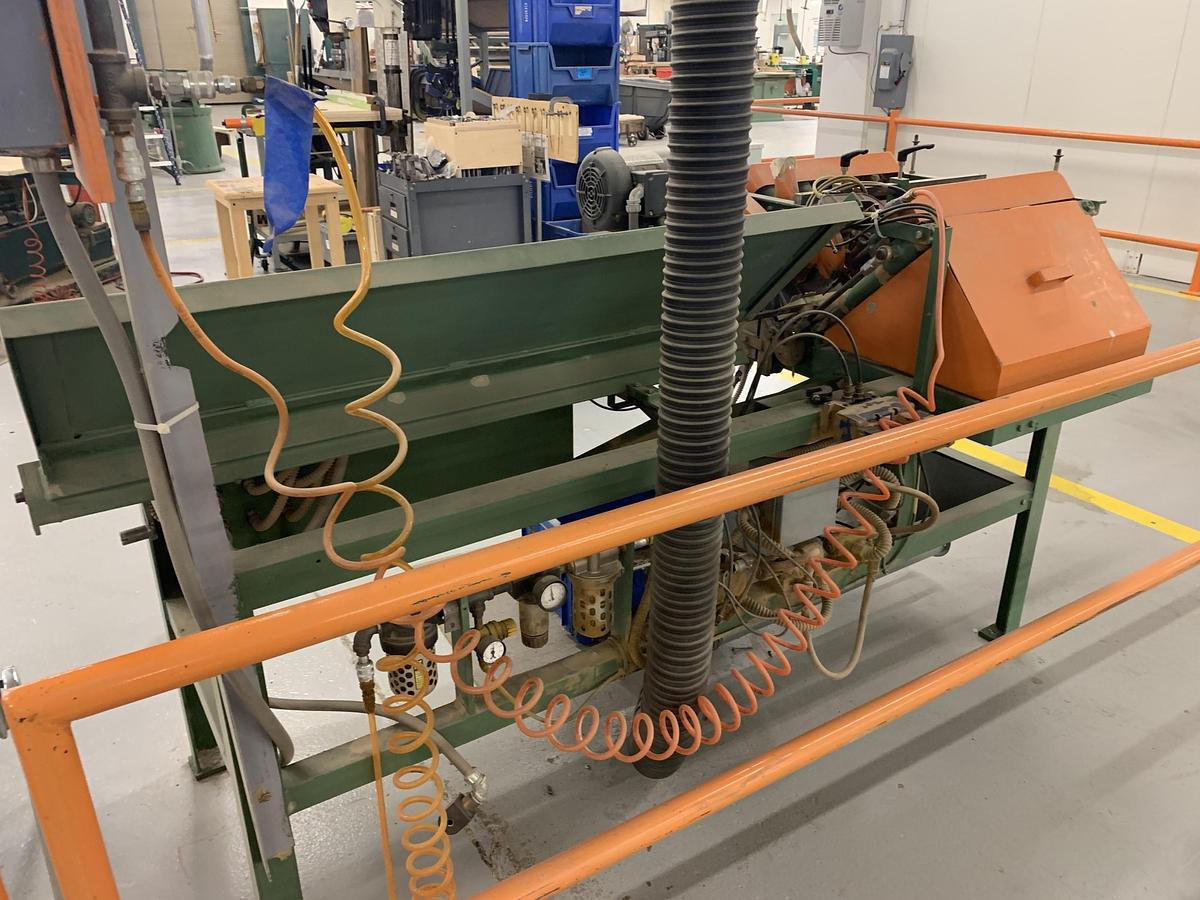

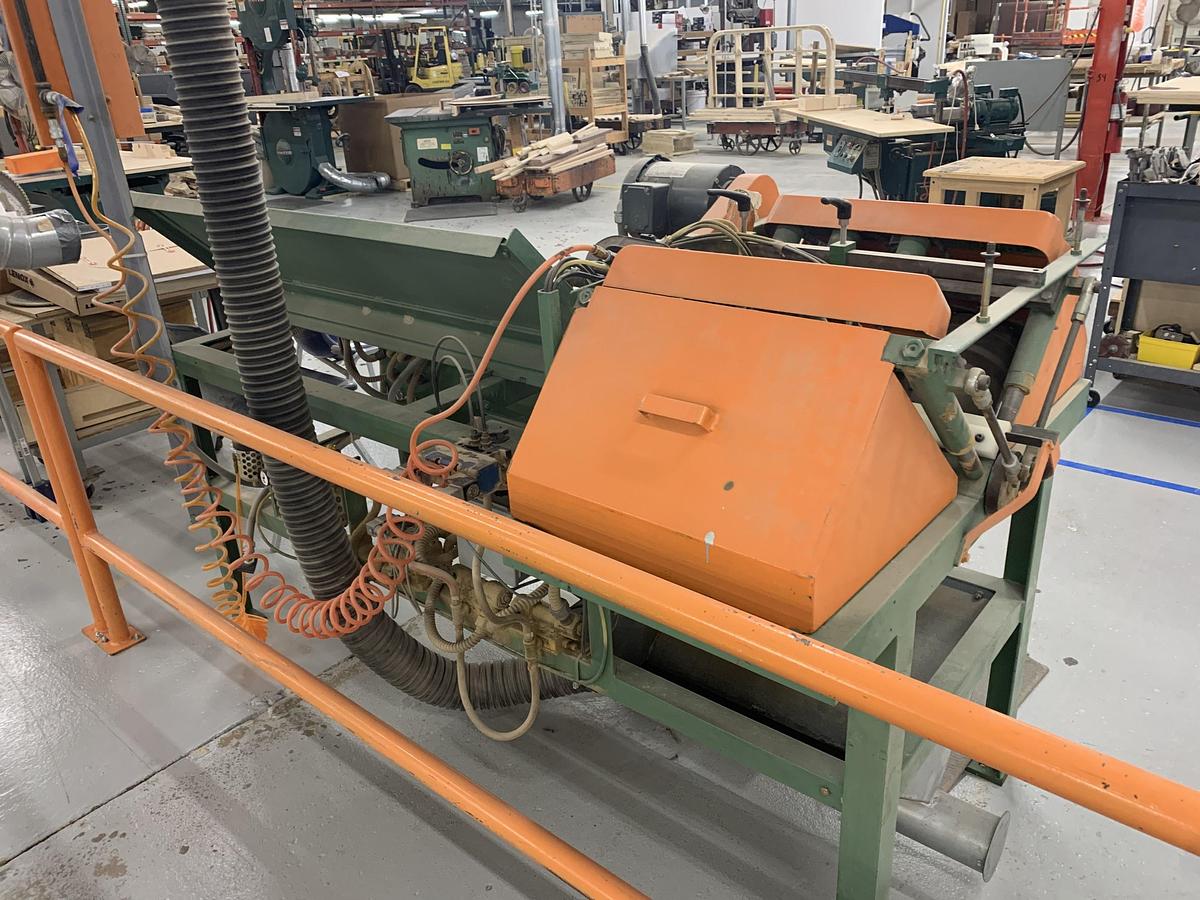

NICHOLS SEMI-AUTOMATIC CLEAT TRIM AND BORE MACHINE

NICHOLS SEMI-AUTOMATIC CLEAT TRIM AND BORE MACHINE

S/N:01522, (230/460/60/3 electrics), H-2146

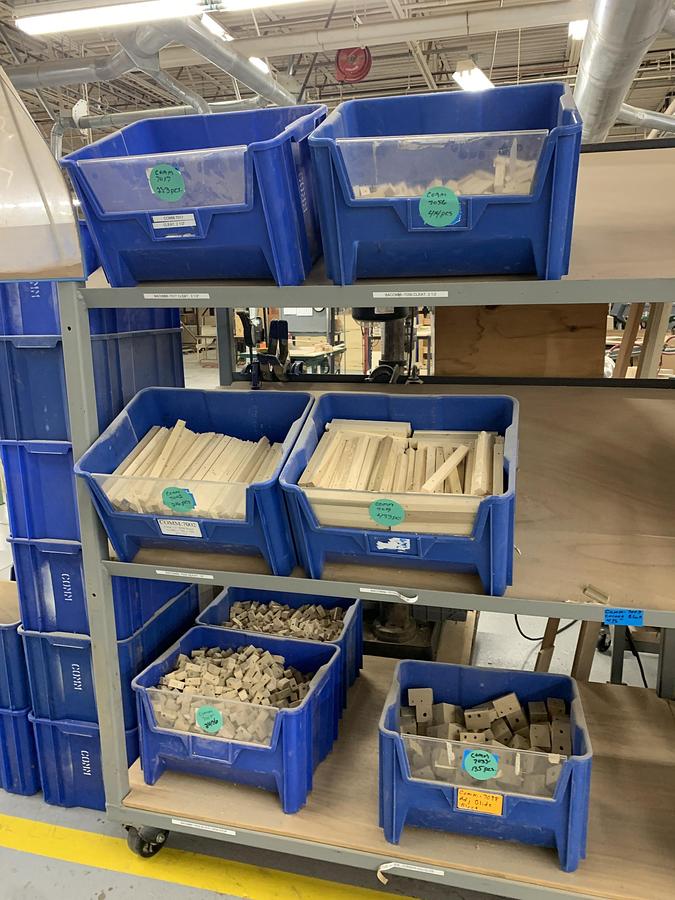

Automatically indexes, trims, and bores 3/4" square x "L" cleat sticks

~(20) blocks per minute production capacity, (depending upon length)

General Specifications:

- 54" x 16" tall stack hopper feeder, (3" to 18" adjustable feed stroke)

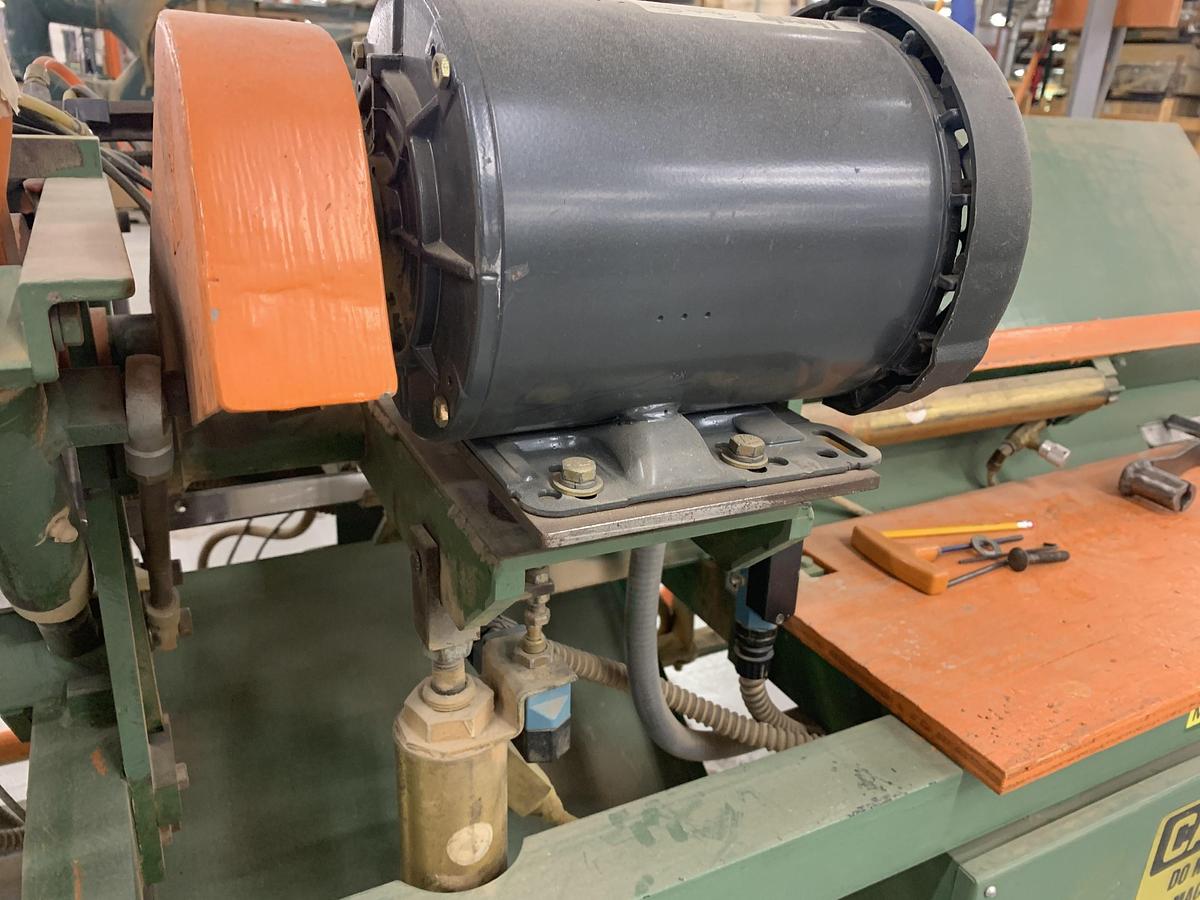

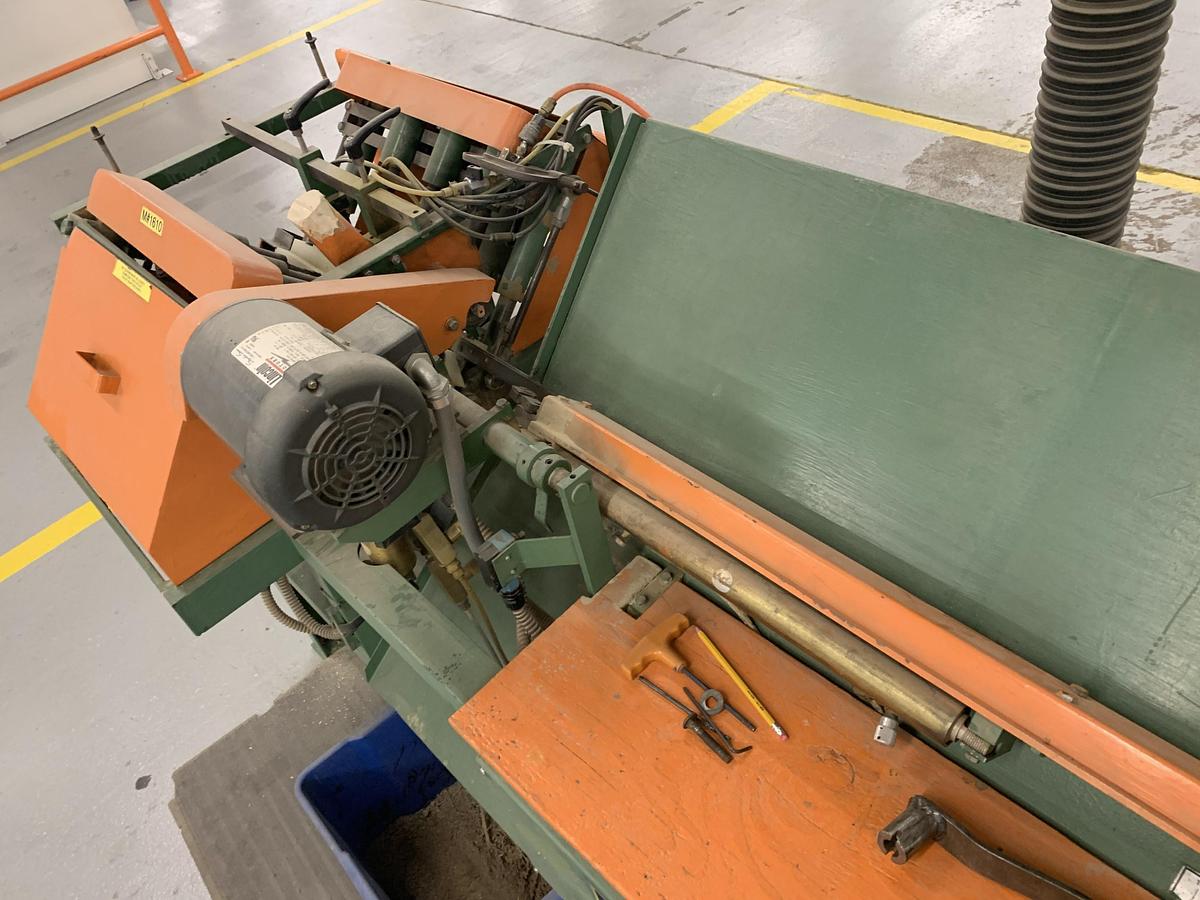

- 1.5 HP, 208-230/460/60/3 trim to length saw, (6" diam. blade)

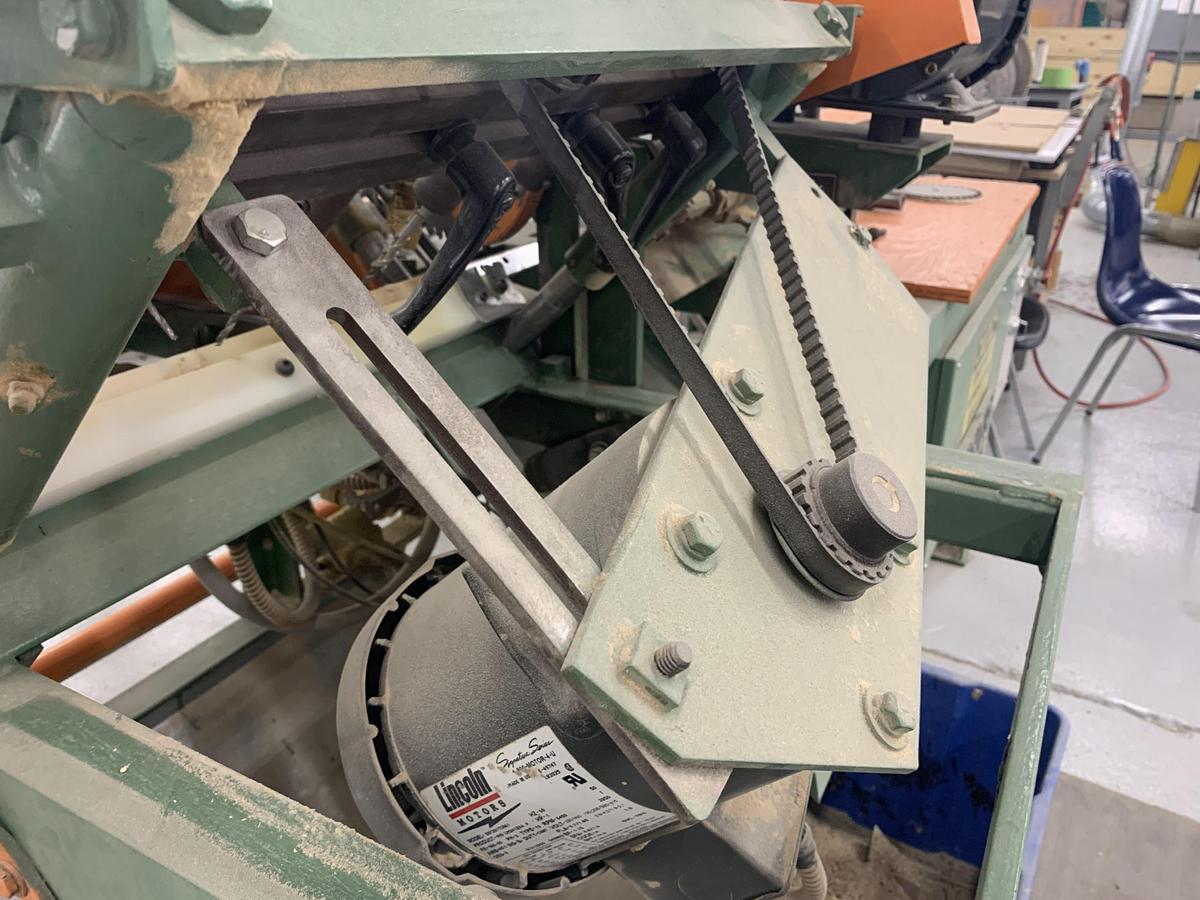

- (2) 1 HP, 230/460/60/3 boring motors, (1 per side driven by belt)

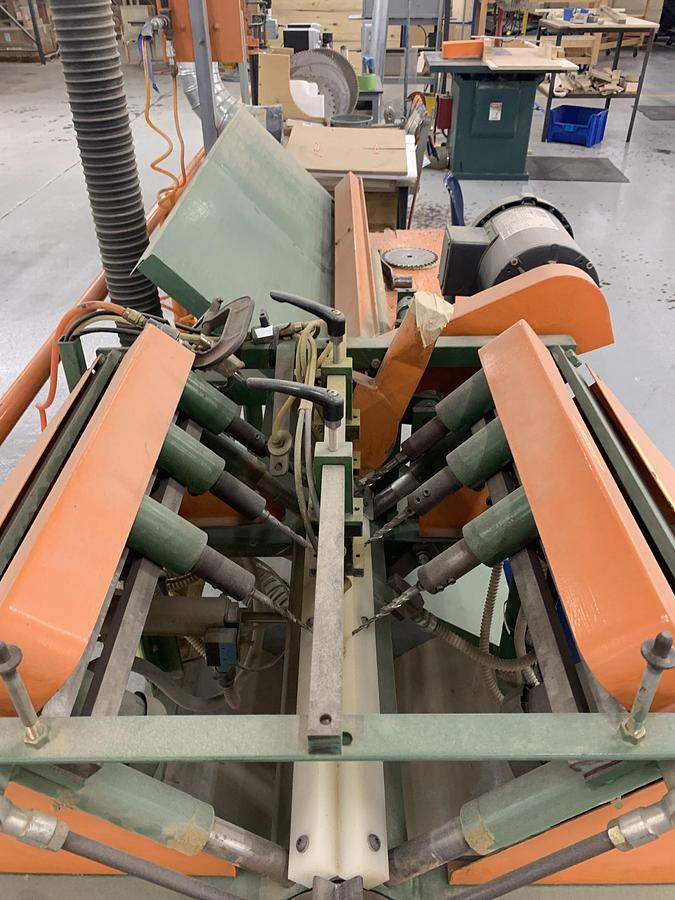

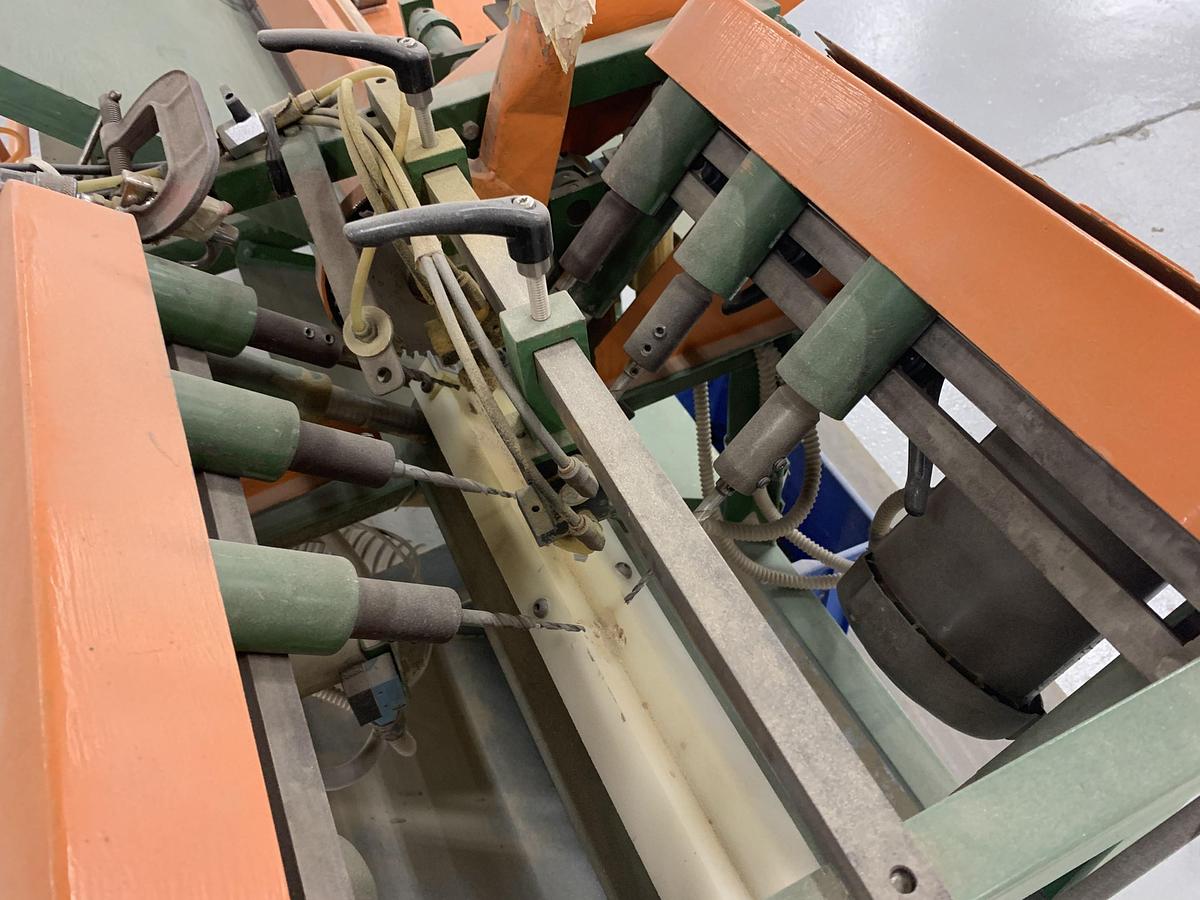

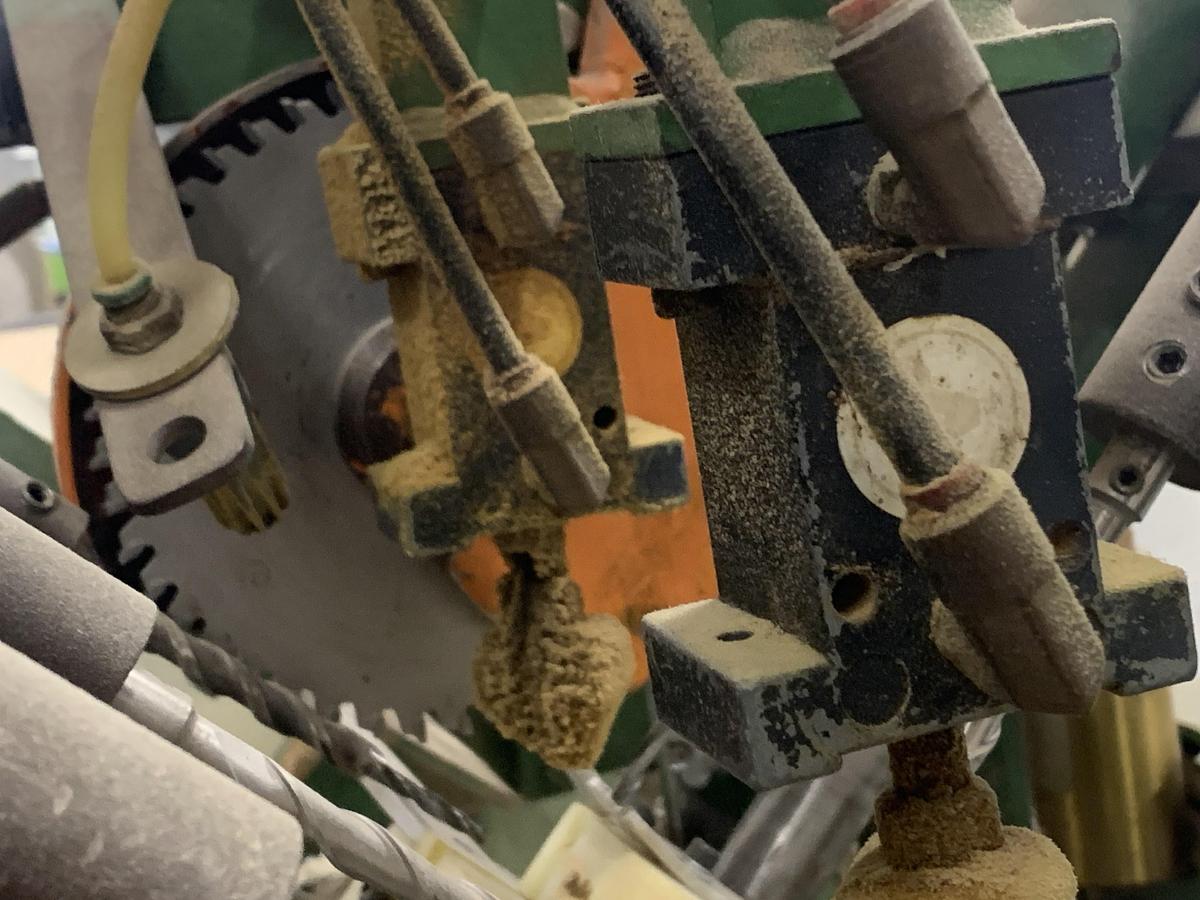

- (6) adjustable boring spindles, (3 boring spindles per side)

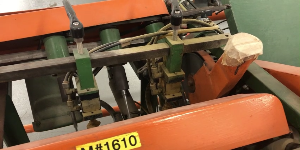

- (2) pneumatic work-piece hold-downs

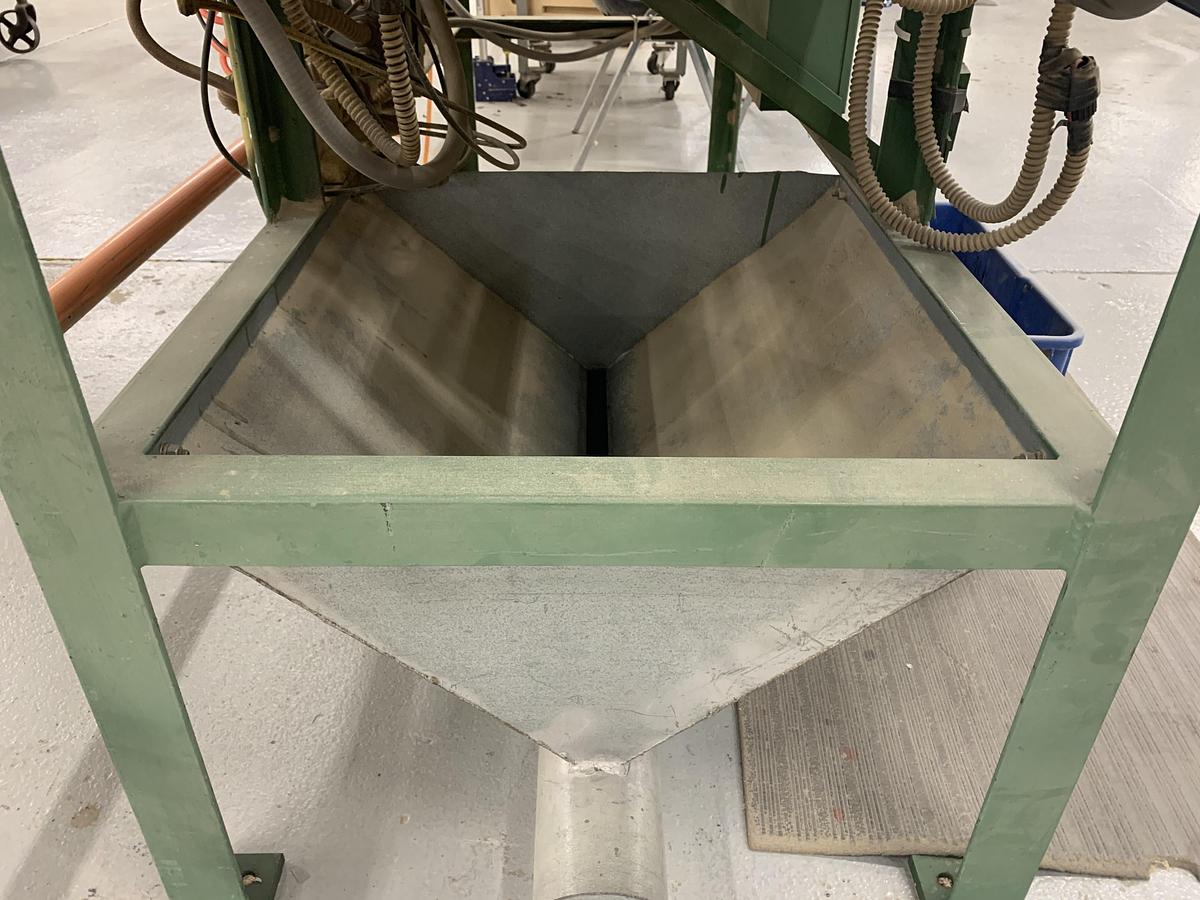

- Integrated dust "catch" with 4" diameter dust-outlet

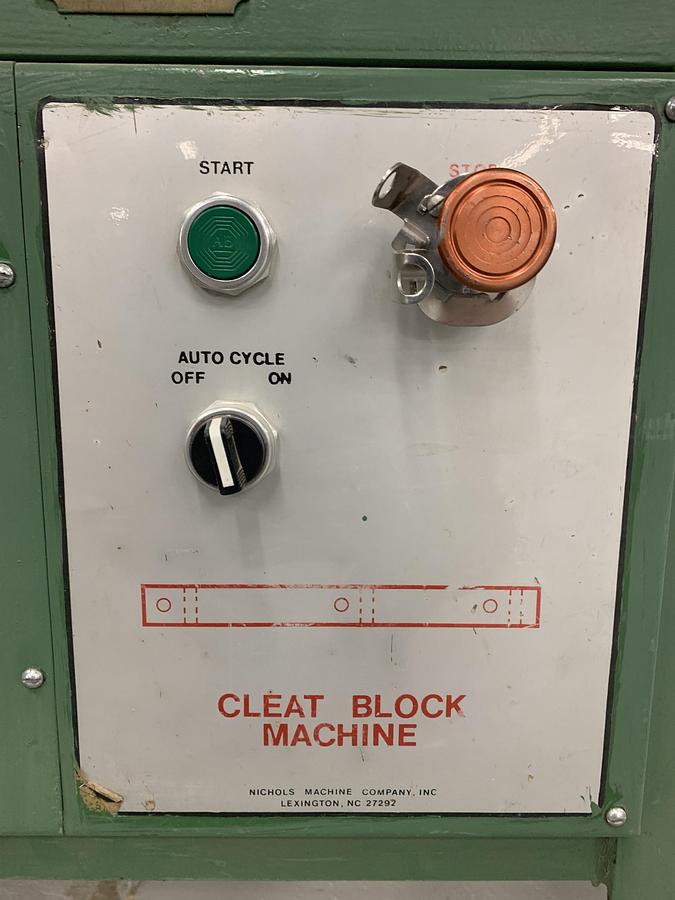

- Includes electric service disconnect switch

- 84" x 46" x 50" approx. overall dimensions
