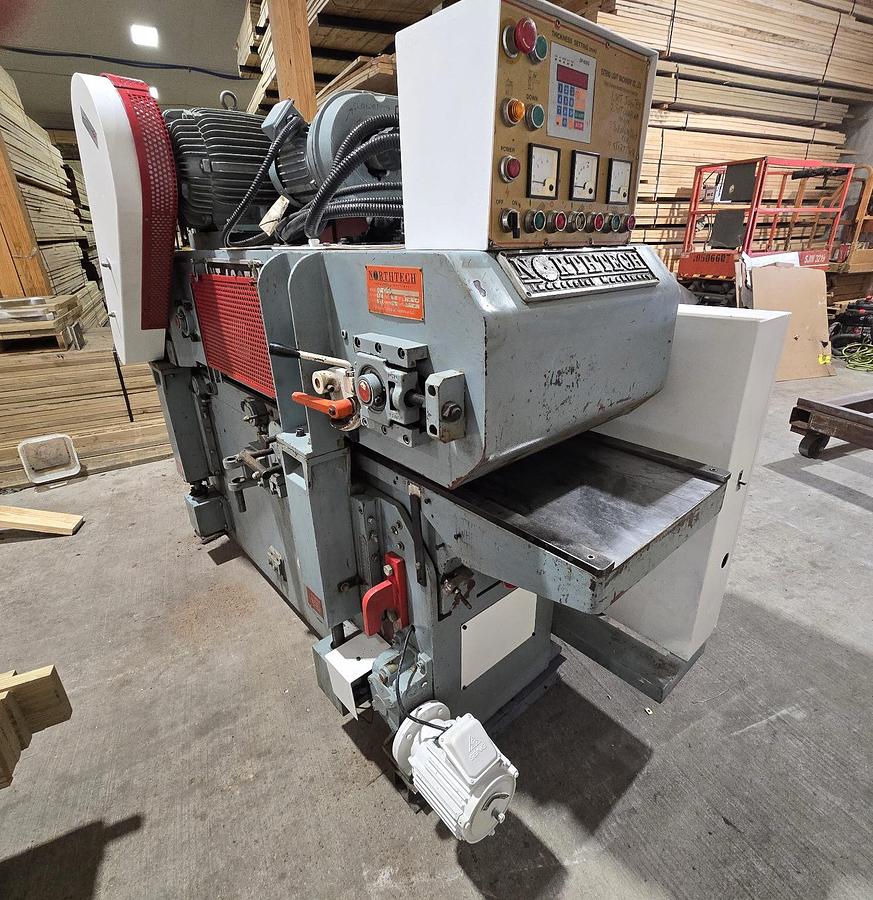

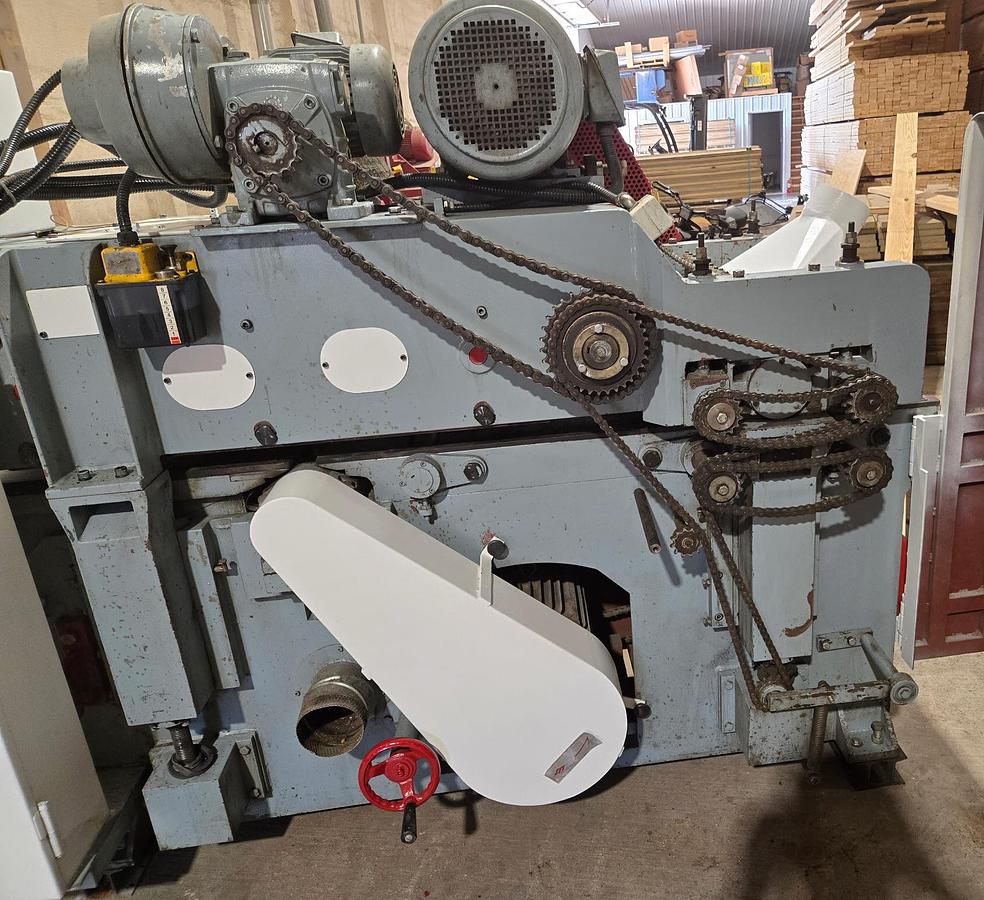

NORTHTECH NT-400EL, 16" HEAVY-DUTY TOP AND BOTTOM PLANER

NORTHTECH NT-400EL, 16" HEAVY-DUTY TOP AND BOTTOM PLANER

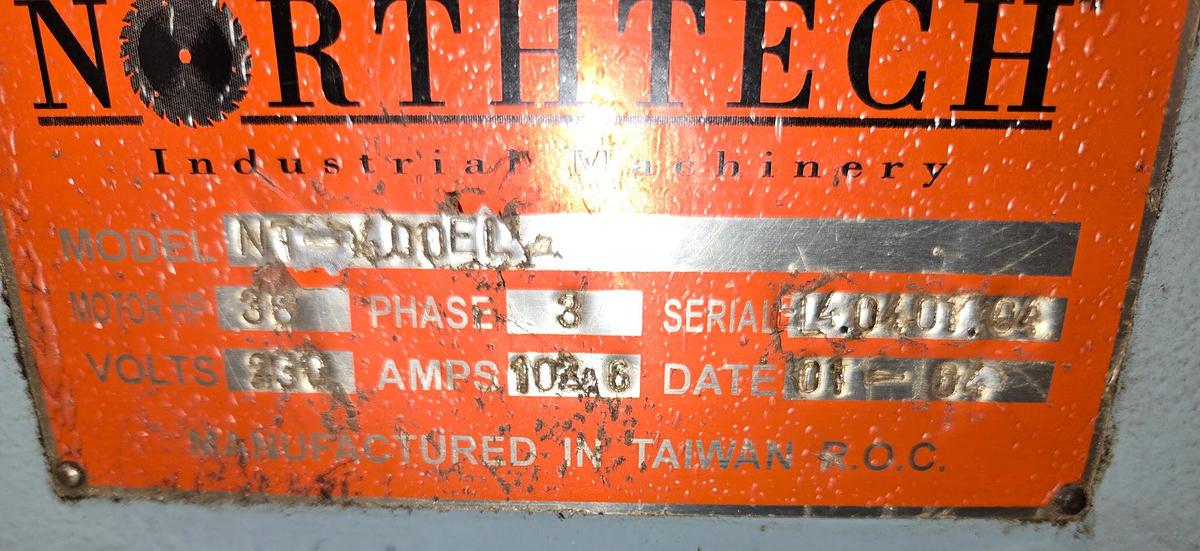

SN:EL40401, (01/2004), (230/60/3, 115 amp electrics), H-2176

Standard Specifications:

- 16″ maximum workpiece width

- 6-1/2″ maximum & 3/8” minimum workpiece thickness

- 12″ minimum workpiece work-piece length

- 20 HP, 230/460/60/3, 5,200 RPM top cutter-head

   (2023 new/better Northtech upper cutterhead, (30 x 12 x 2.5 relieved edge inserts)

- 20 HP, 230/460/60/3, 5,200 RPM top cutter-head

- 2 HP, 230/460/60/3, variable speed (25 to 85 ft/min)

- Upper “Carpet” style top feed conveyor with 644 spring loaded fingers

- Lower powered bed roller feed system

- 1 HP, 230/460/60/3 thickness open & close motor on 4-jack screws

- 32” pass-line working height

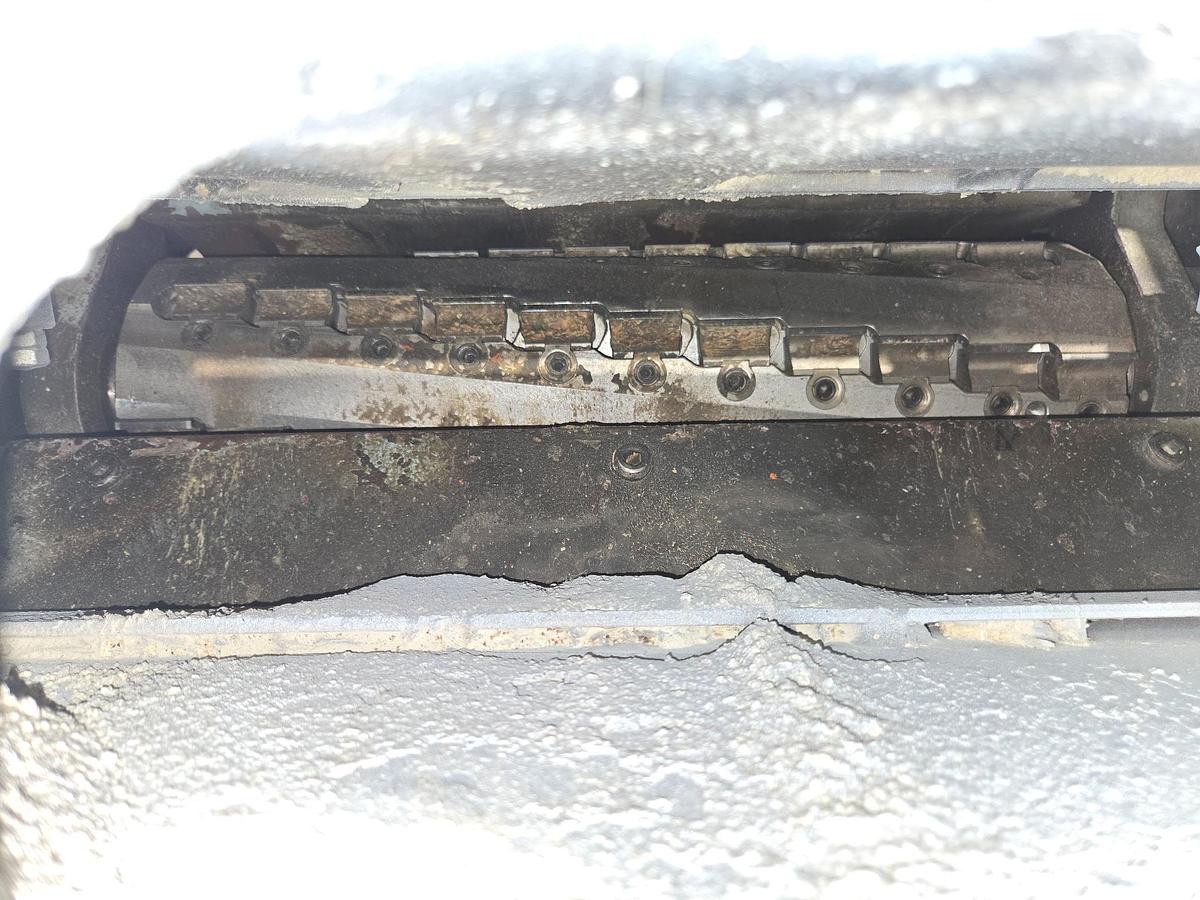

- 6-row 5” diam. x 16” long dynamically balanced steel helical cutter-heads

- (110) 15 mm x 15 mm x 2.5 mm 4-sided inserts per cutter-head

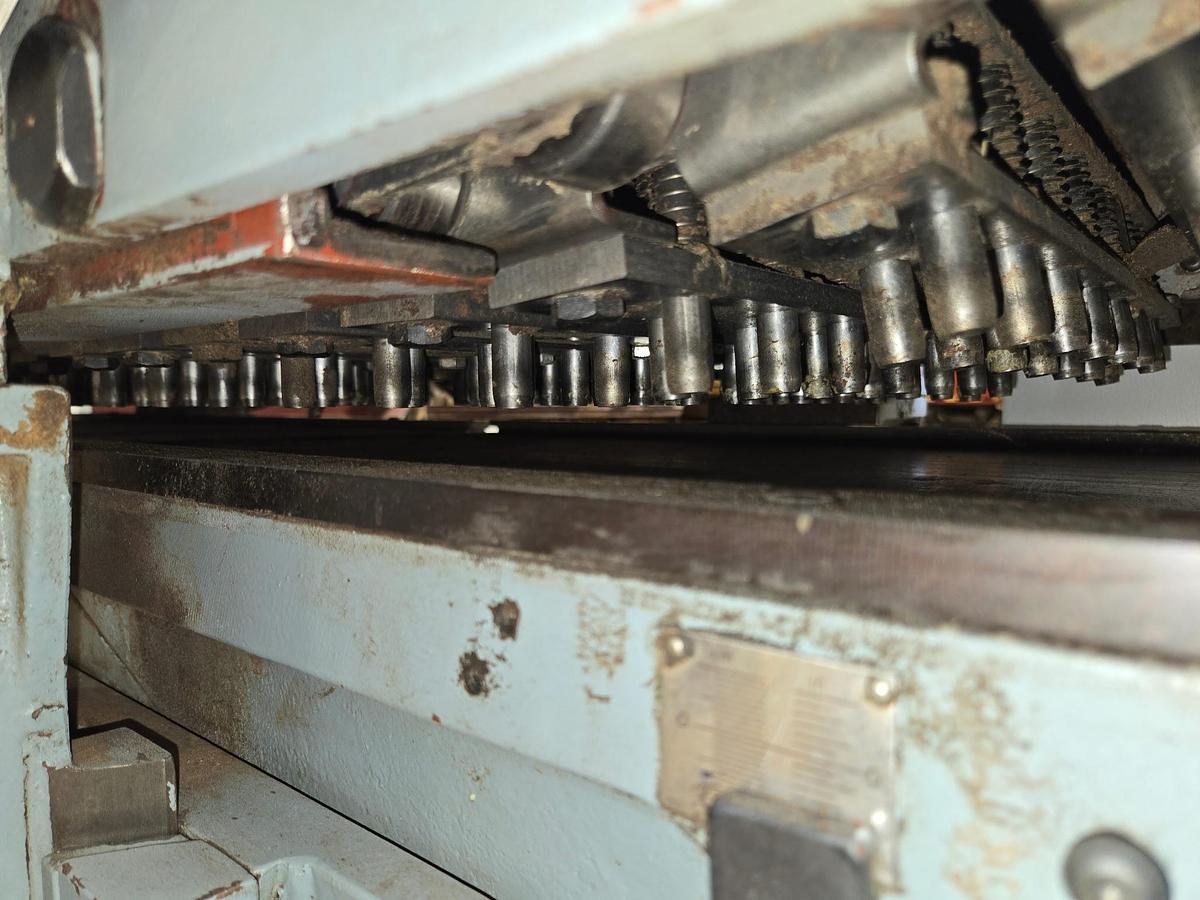

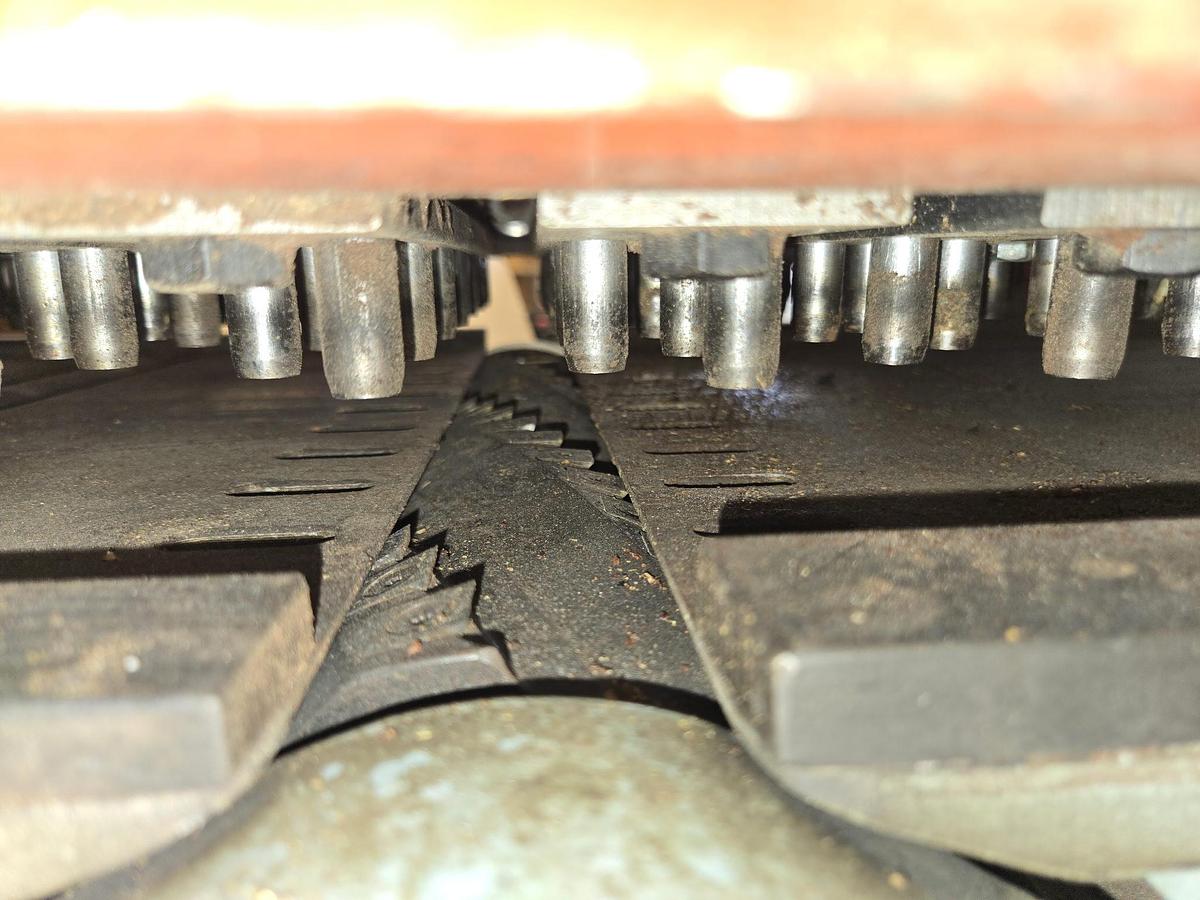

- Spring loaded segmented infeed chip-breakers with outfeed pressure plates

- Amp meters for each cutter-head & feed motor

- .01mm, (.004”) thick chrome bed plate

- Electronic digital thickness control

- Automatic lubrication system with low-level shut off

- (2) 6” diameter dust outlets, (approx. 2,000 cfm required)

- 98'' x 50'' x 70'' approximate overall dimensions

- Weighs approximately 6,000 lbs.

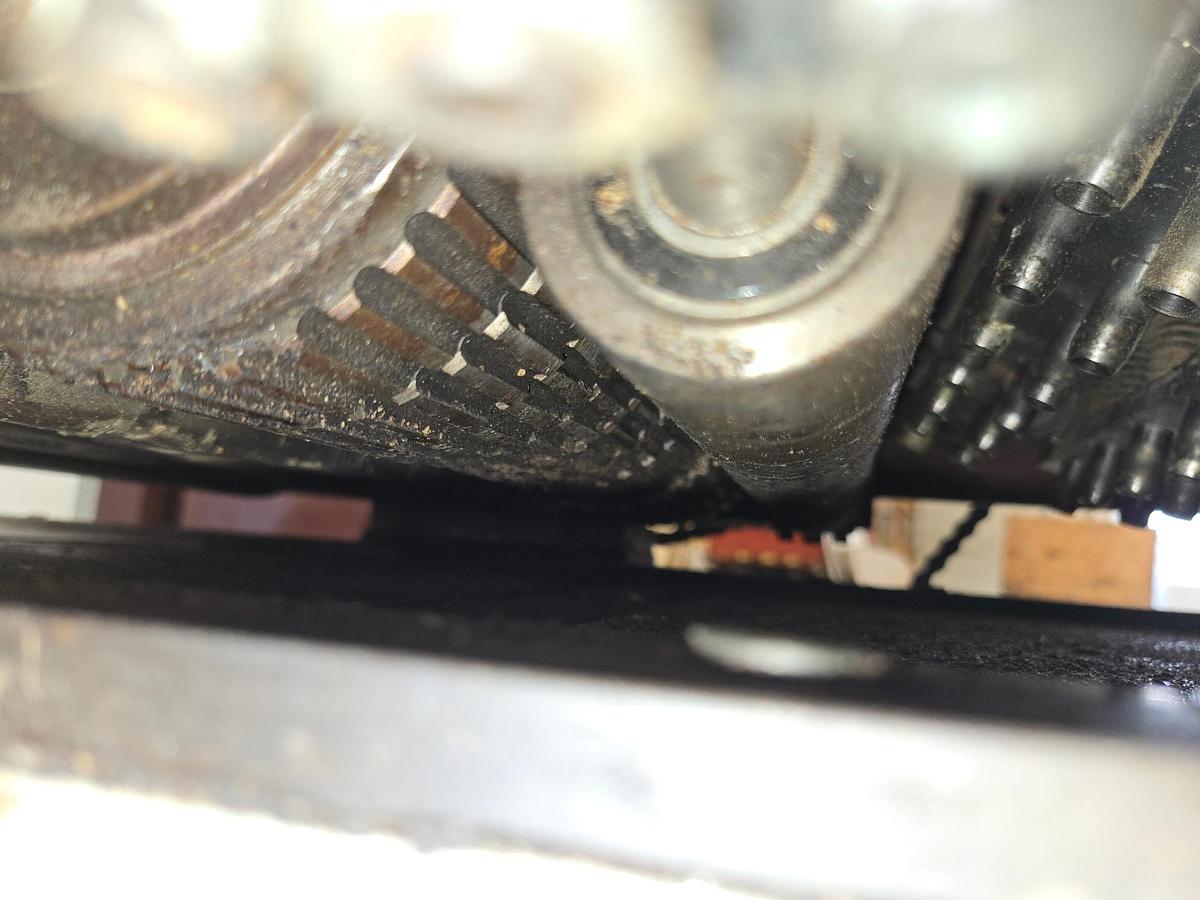

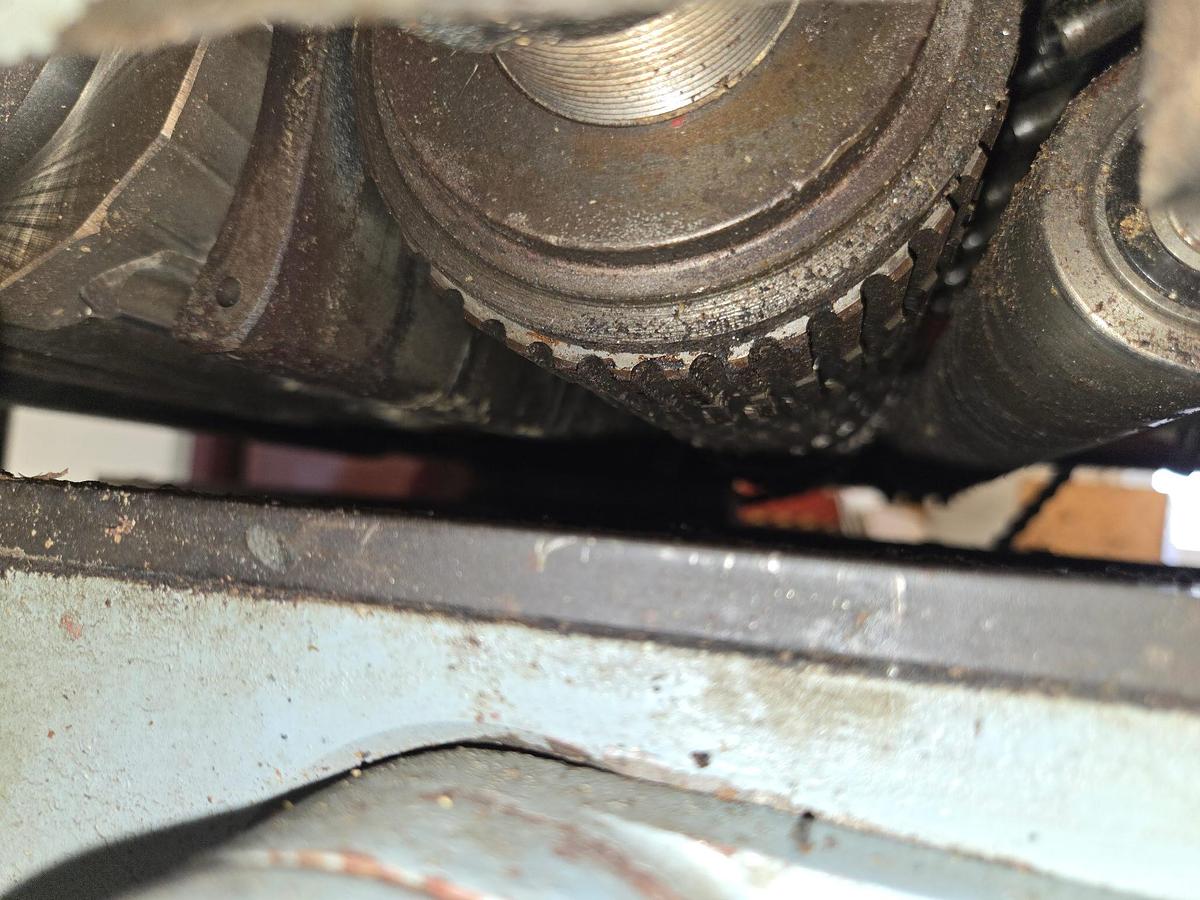

The top segmented infeed roller could use new rubber inserts, (inside the rollers)
