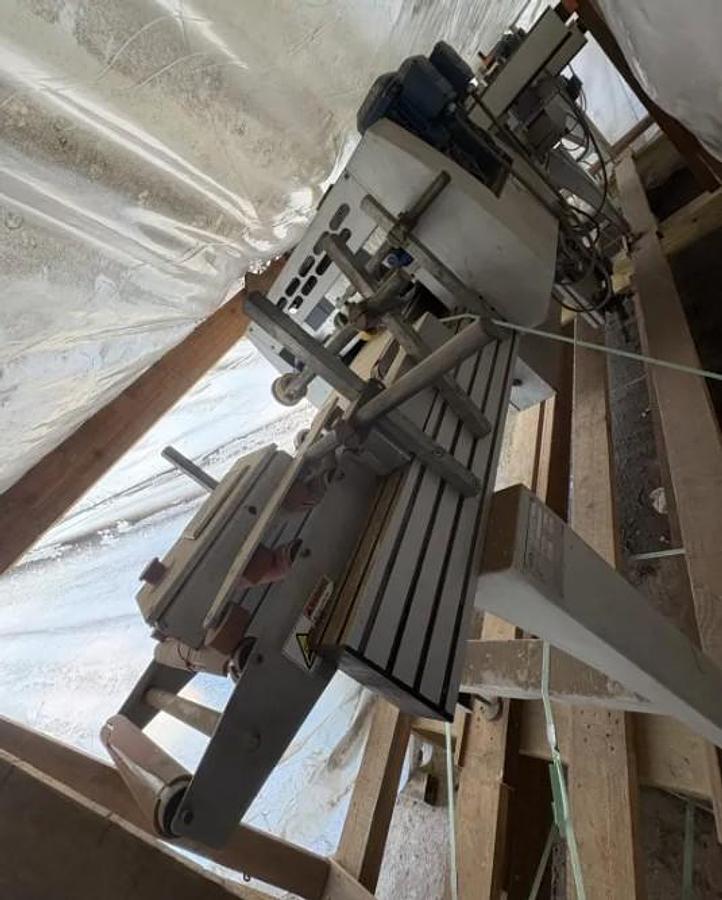

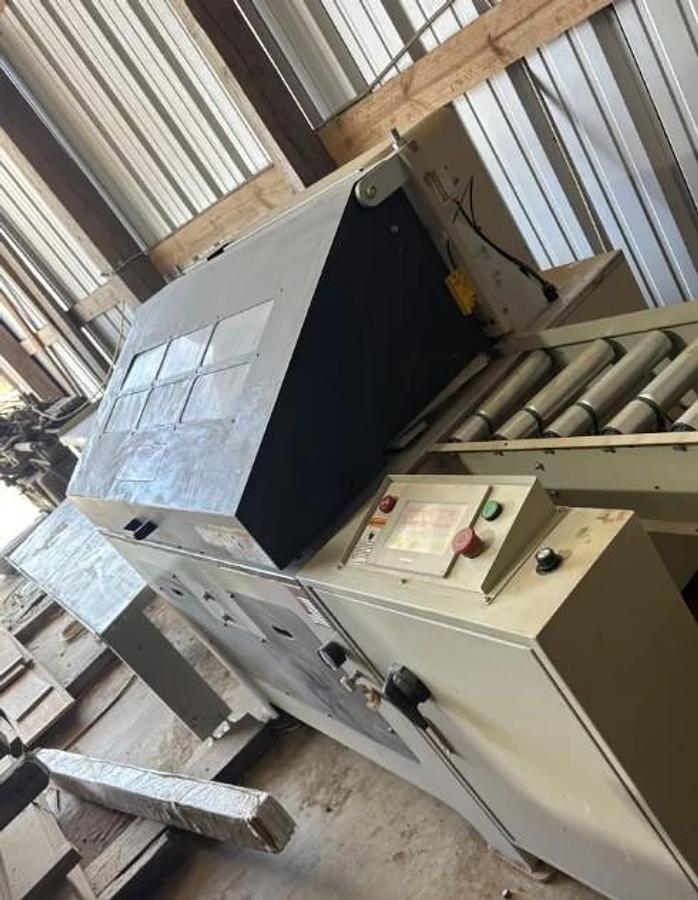

CANTEK EM-12, 12" END-MATCHER

CANTEK EM-12 12" END MATCHER

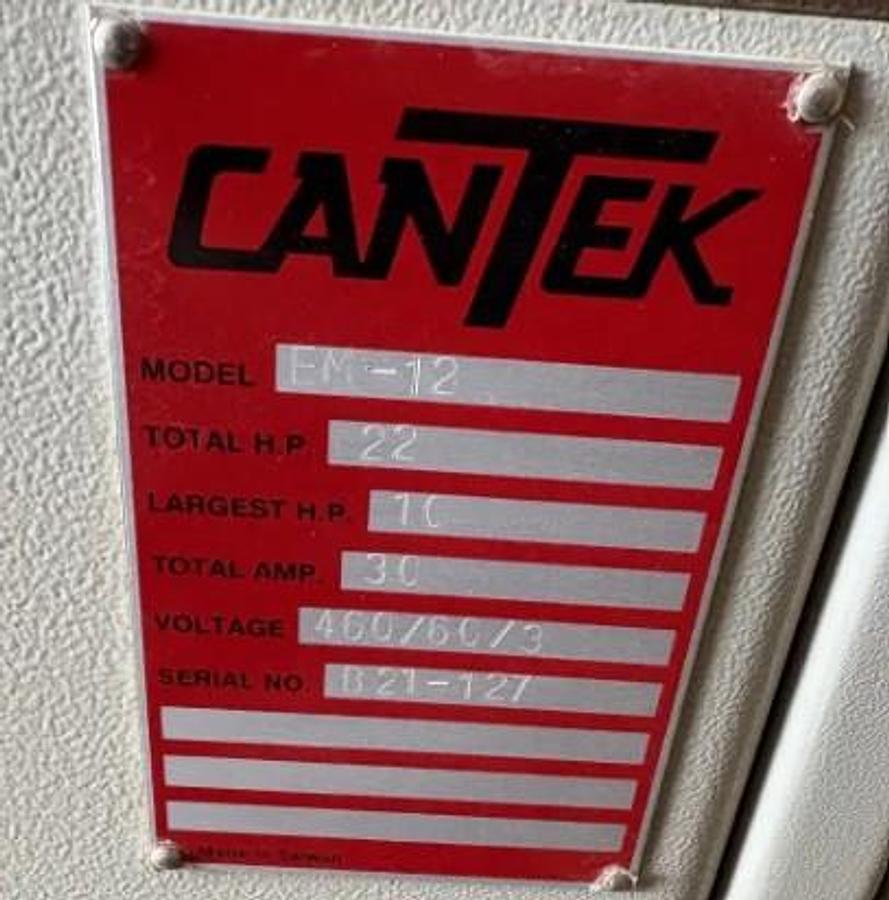

S/N: B21-127, (460/60/3 ELECTRICS), H-2208

Standard Specifications:

- Voltage: 460V 3PH 60HZ

- Control: 24 VDC

- Cutter heads: 2 x 7.5 HP

- Width min.: 40mm(1 9/16″)

- Width max.: 300mm(12″)

- Thickness min.: 10mm(3/8″)

- Thickness max.: 35mm(1 1/2″)

- Length min.: 270mm(10 1/4″)

- Length max.: Unlimited

- Feed speed: 90 mpm(295 fpm)

- Processing speed based on 2m boards: 24 mpm(79 fpm)

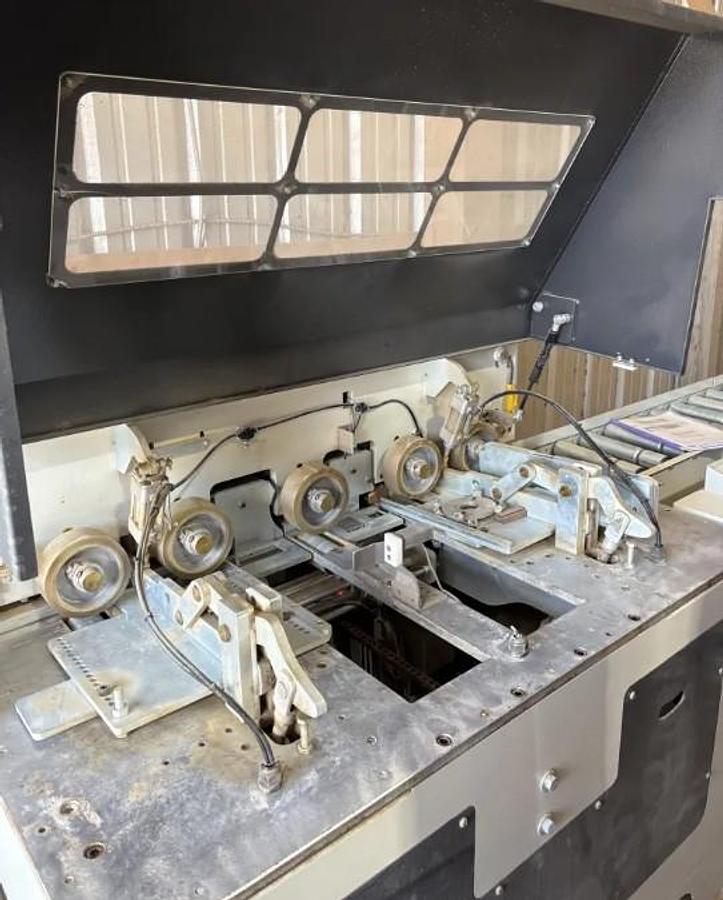

- Clamps over the top and sides

- Cutting spindles: 40mm

- Controls are manual or automatic

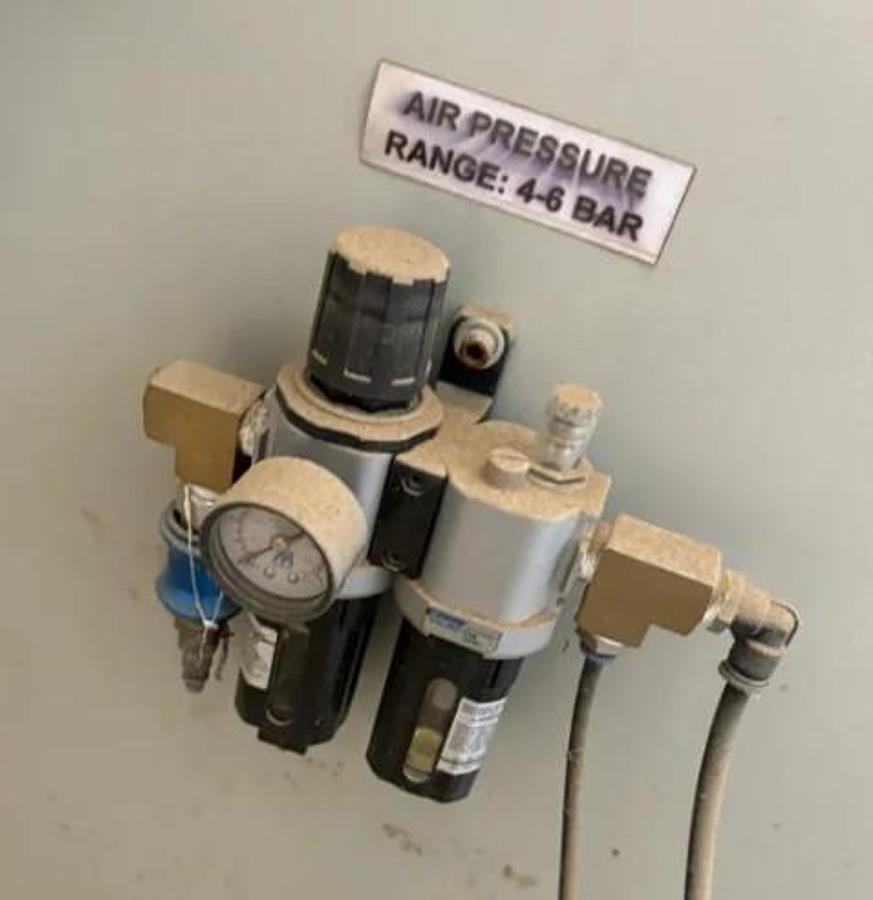

- Air consumption: 12 CFM

- 1500mm(5′) L x 1220mm(4′) W x 1300mm(4.3′) H

*Additional photos available upon request*
