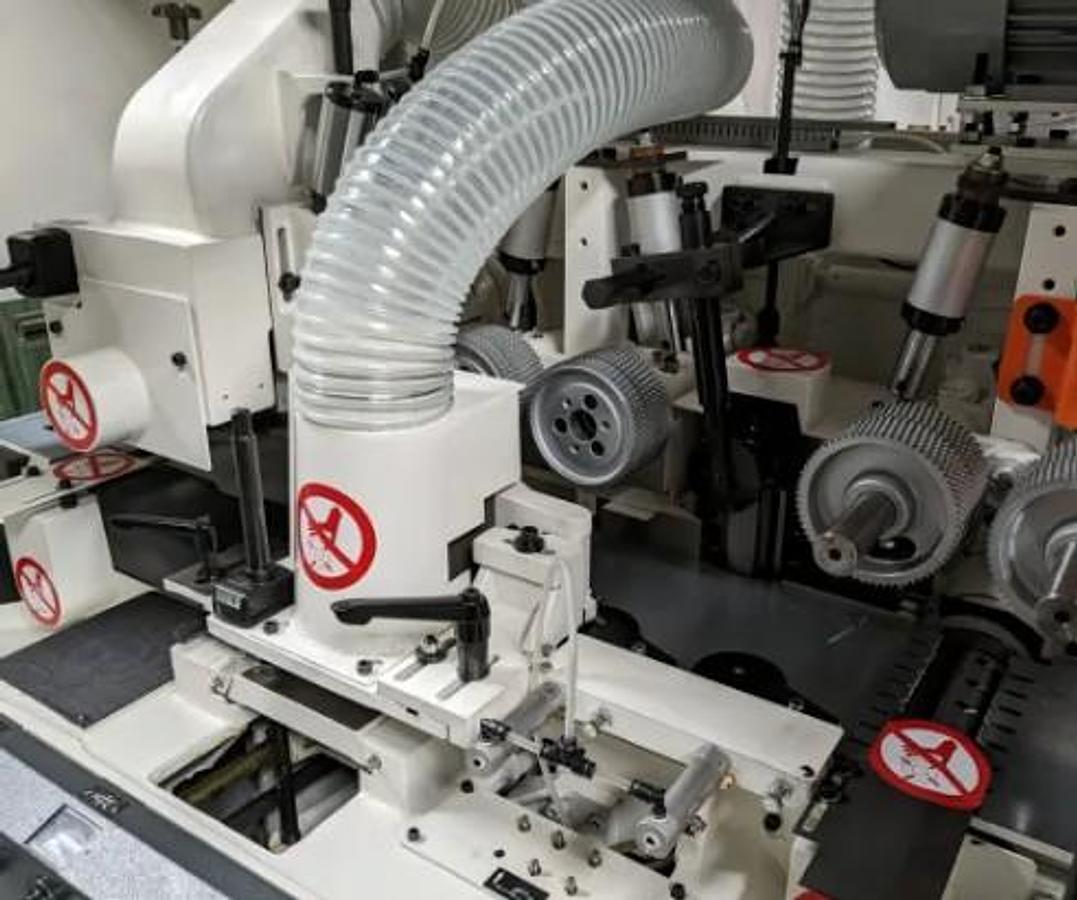

ULTRA GS-523, 5-HEAD MOULDER

ULTRA GS-523, 5-HEAD MOULDER

H-2227

Standard Specifications:

- PLANING WIDTH: 10 – 230 mm

- PLANING THICKNESS: 7 – 125 mm

- MIN. WORKING LENGTH: 230MM

- FEED MOTOR: 3HP

- SPINDLE DIAMETER: 40MM OR 1-13/16

- SPINDLE RPM: 6000RPM

- FEED SPEED: 6-25M/MIN

- FRONT BTM SPINDLE: 100 – 150 MM CUTTER DIAMETER

- RIGHT/LEFT VERTICAL SPINDLE: 100 – 195 MM CUTTER DIAMETER

- TOP HORIZONTAL SPINDLE: 100 – 200 MM CUTTER DIAMETER

- BOTTOM HORIZONTAL SPINDLE: 100 – 200 MM CUTTER DIAMETER

- MOTOR HORSEPOWER: BTM HORIZONTAL SPINDLE: 10HP

- RIGHT/LEFT VERTICAL SPINDLE: 15HP

- TOP HORIZONTAL SPINDLE: 10HP

- BTM HORIZONTAL SPINDLE: 10HPFEED ROLL DIAMETER: 140MM

- FEED ROLL WIDTH: 2 X 50MM

- ADJUSTMENT OF VERTICAL SPINDLE: 30MM

- ADJUSTMENT OF HORIZONTAL SPINDLE: 1-13/16 INCH

- TABLE ADJUSTMENT: 12MM

- TABLE LENGTH: 1800MM

- MIN LENGTH OF CUT: 230MM

- CONDITION: NEW

*Additional photos available upon request*
