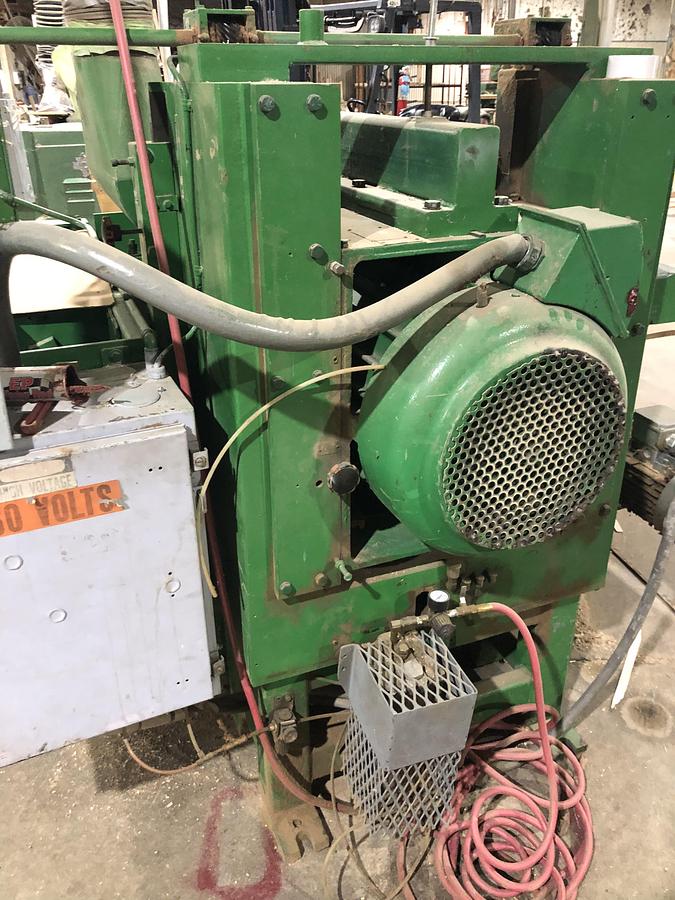

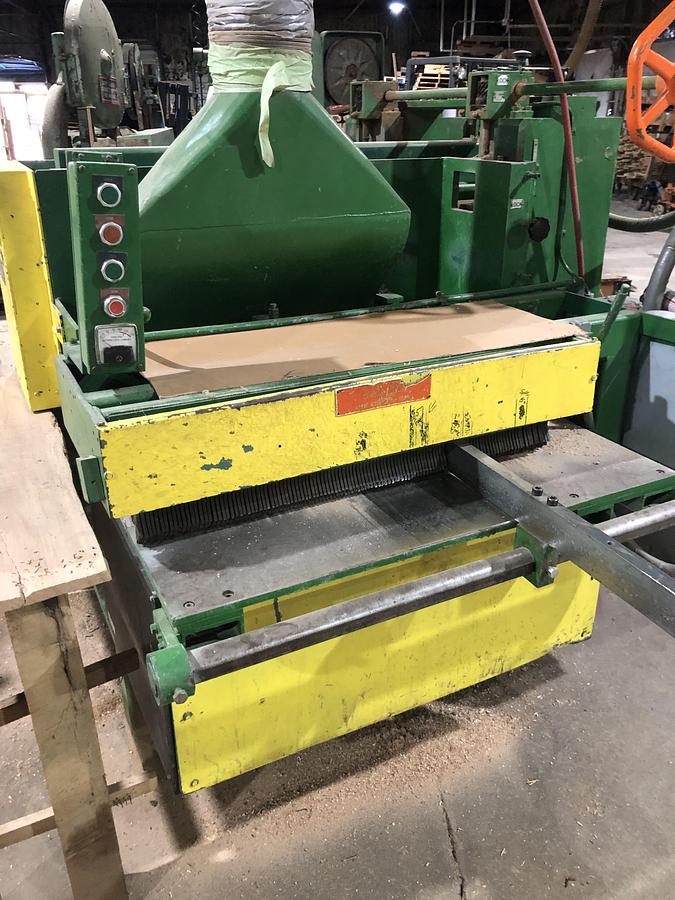

MEREEN JOHNSON "424-DC" 24” DIP CHAIN GANG RIPSAW

MEREEN JOHNSON "424-DC" 24” DIP CHAIN GANG RIPSAW

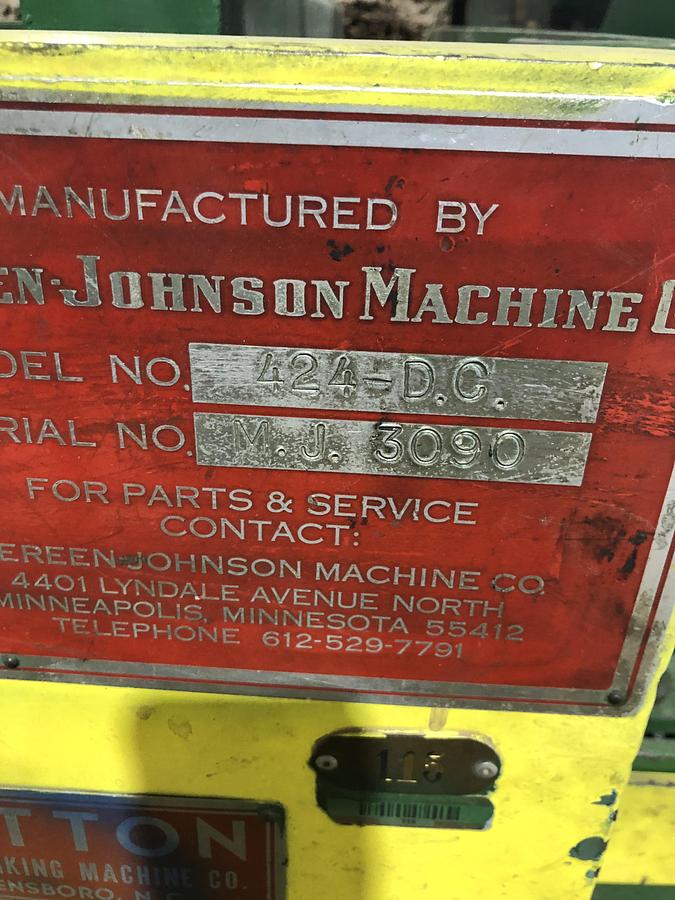

S/N:3090, (230/460/60/3 electrics), H-2278

Standard Specifications:

- 75 HP, 230/460/60/3, 3,560 RPM arbor motor, (direct drive w/disc brake) (To be verified)

- 24” arbor capacity, (14” max. saw blade diameter)

- 3-1/2” max. work-piece thickness capacity

- 22” min. work-piece length

- 3 HP feed chain motor, (variable speed from 50 to 150 FPM)

- (4) 3" diameter pneumatic overhead pressure rolls

- Full width spring loaded overhead bedplate w/scale & pointer reference

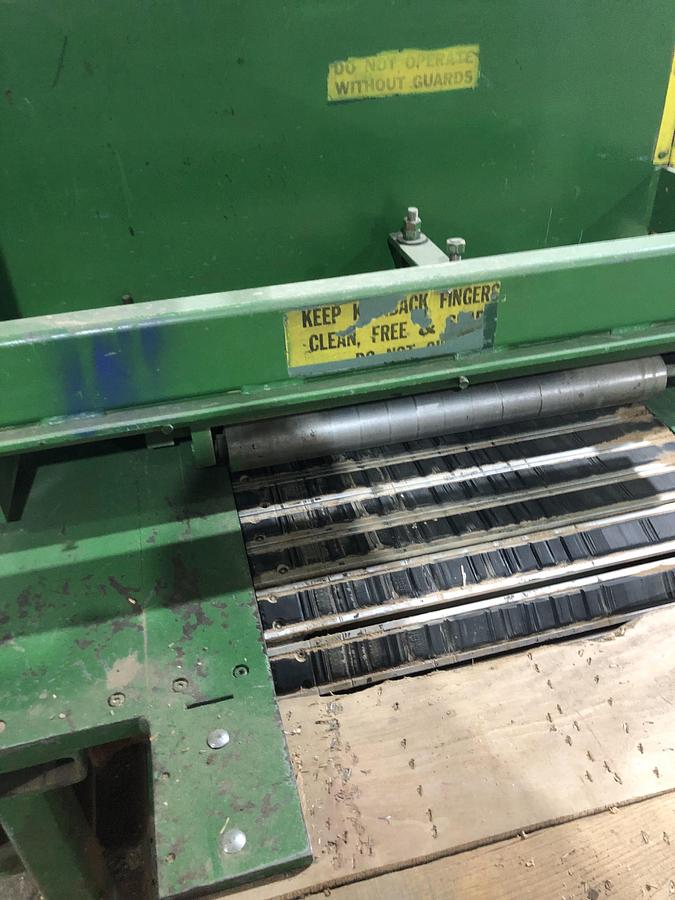

- (1) lower & (2) upper rows of infeed anti-kickback fingers

- 87” x 83” s 83” approx. overall dimensions and weighs approx. 10,500 lbs.
