ANDERSON OMNITECH SELEXX-ECO 4' x 8', 3-AXIS CNC ROUTER

ANDERSON OMNITECH SELEXX-ECO 4' x 8', 3-AXIS CNC ROUTERCNC ROUTER

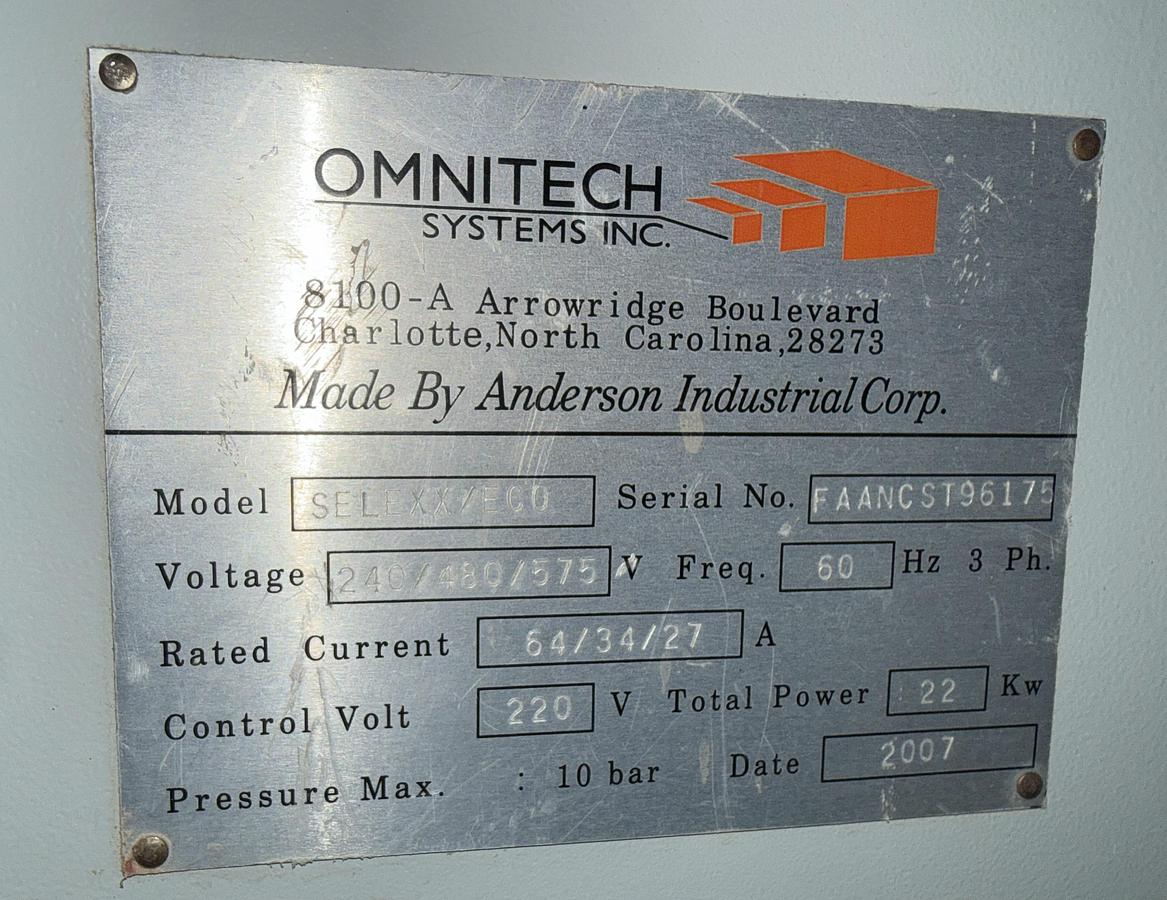

S/N:FAANCST96175, (2007), (240/60/3,~ 30 H, 64 amp electrics), S-5308

Standard Specifications:

- 4' x 8' work stationary phenolic vacuum table

- 10 HP, 220/380/60/3, 24,000 RPM tool-changing router spindle

- 8-position traveling rotary tool-changer, (HSK-63F tools)

- 1 HP, 220/380/60/3, 6-spindle inline on the "Y-axis" vertical drill unit

- Ball-screw X, Y & Z movements

- PC front-end control with Delta drives includes handheld remote control

- Automatic tool calibrating system

- (3) pneumatic pop-up pins for work-piece positioning

- Light barrier safety system

- CAD/Cam software is not included

- Can include Becker VTLF-250, 7.5 HP & VTLF-500, 20 HP vacuum pumps

- 12' x 7-1/2' x 7-1/2' router with 3' x 7' x 5' control panel

- Weighs approx. 6,000 lbs.
