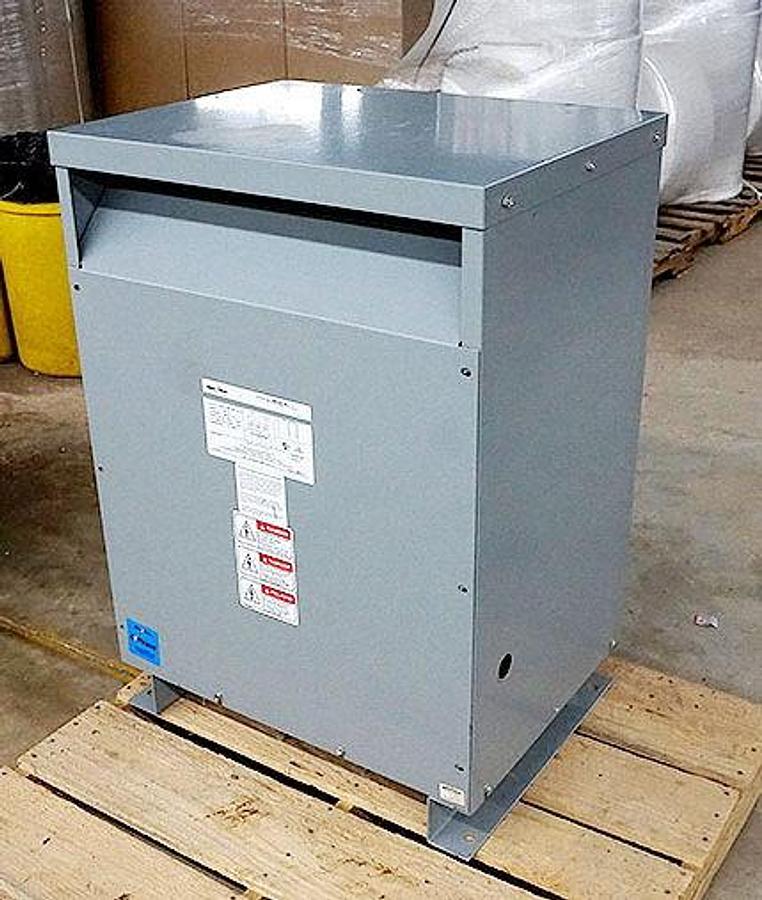

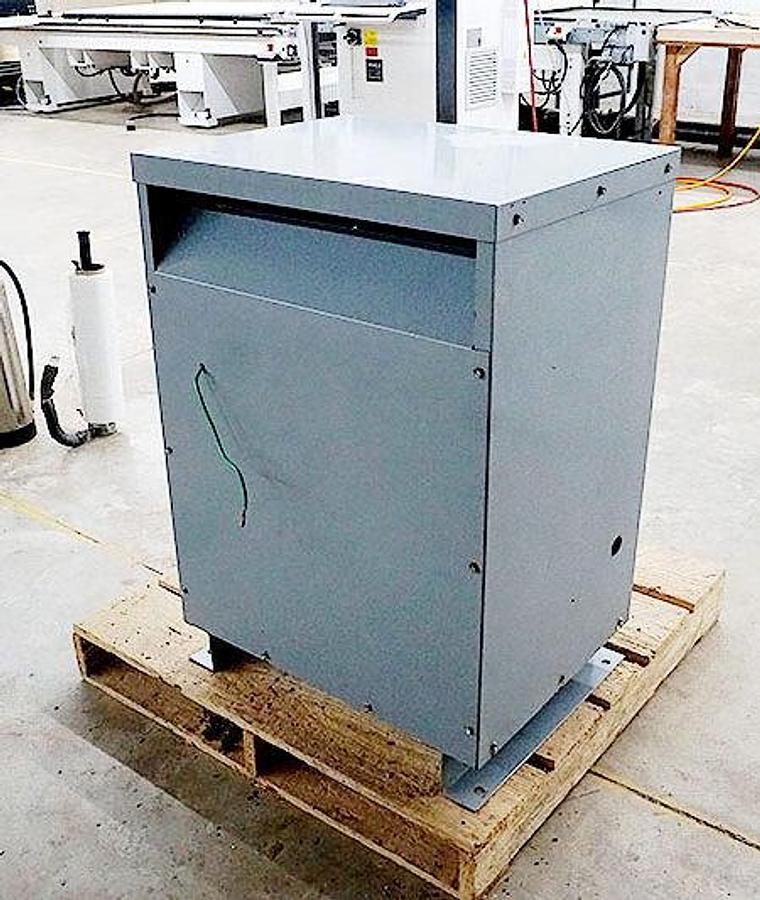

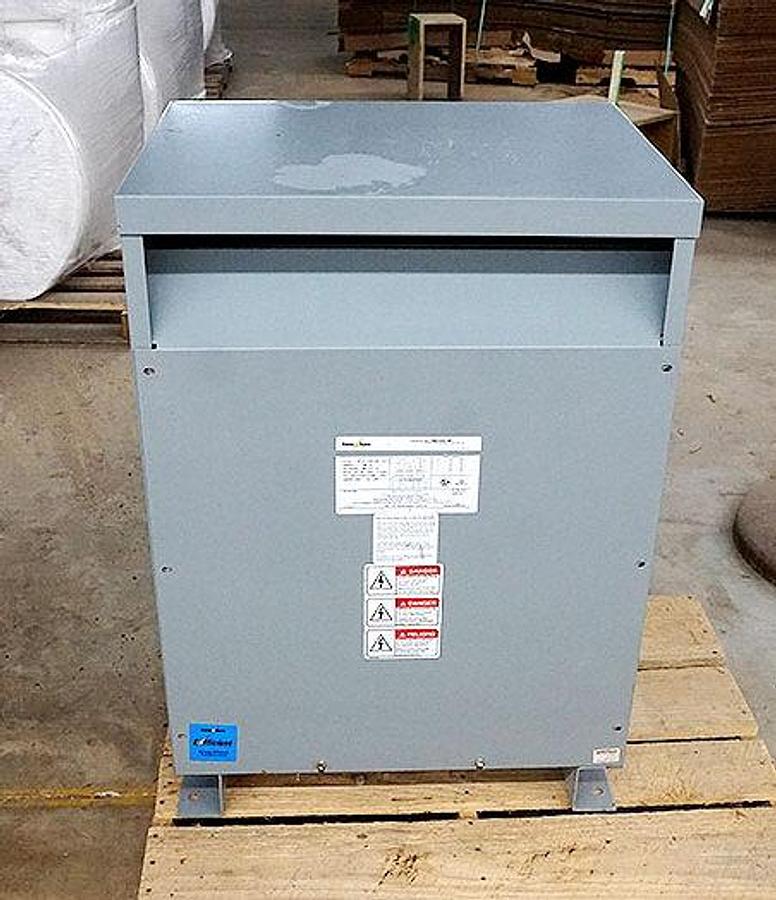

FEDERAL-PACIFIC 36-B, 45 KVA, 480 VOLT 3-PHASE ISOLATION TRANSFORMER

FEDERAL-PACIFIC 36-B, 45 KVA, 480 VOLT 3-PHASE ISOLATION TRANSFORMER

S-5316

Standard Specifications:

- 45 KVA @ with 4.56 impedance @150 C rise

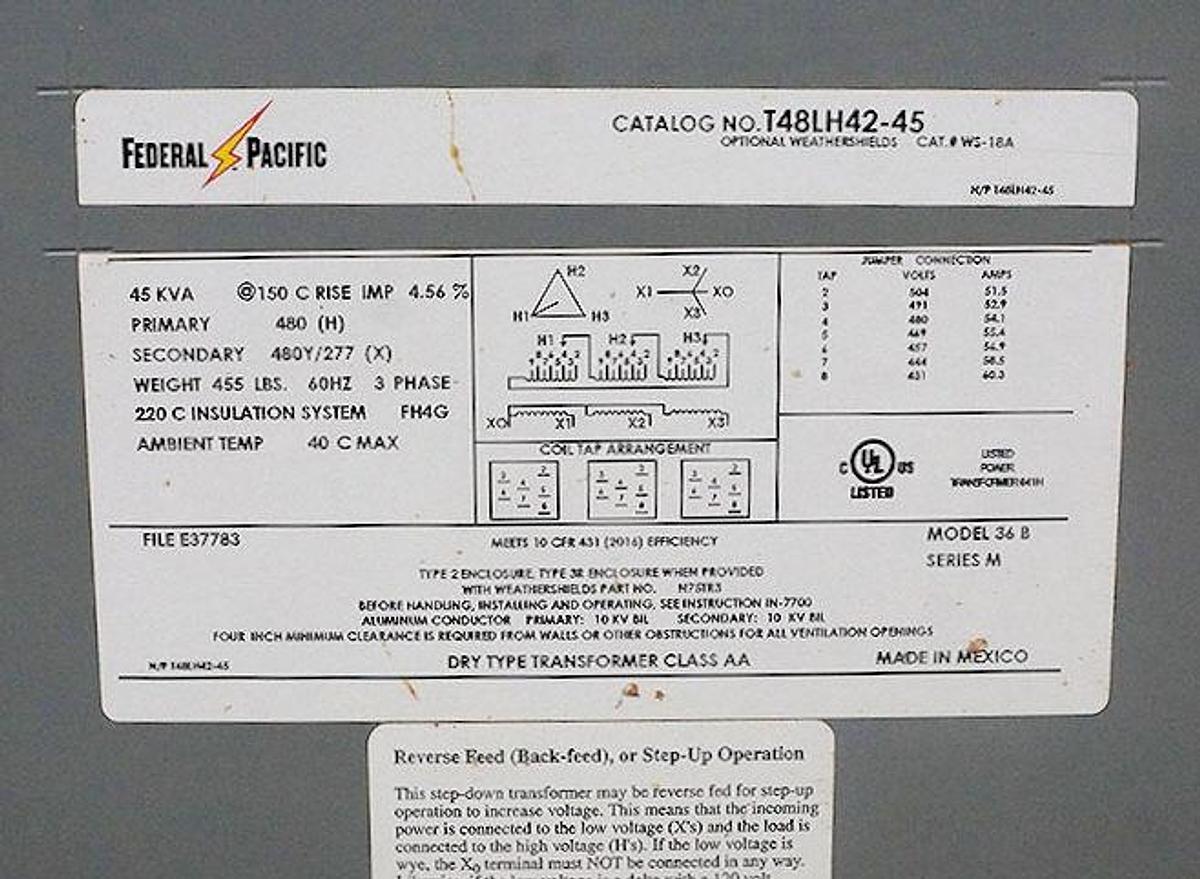

- T48LH42-45 catalog number

- 480/60/3 primary voltage with taps

- 504 / 491 / 480 / 449 / 457 / 444 / 431 taps

- 480Y/277 (X) secondary voltage

- 26” wide x 20” long x 36-3/4” high approx. overall dimensions

- Weighs 455 lbs.
